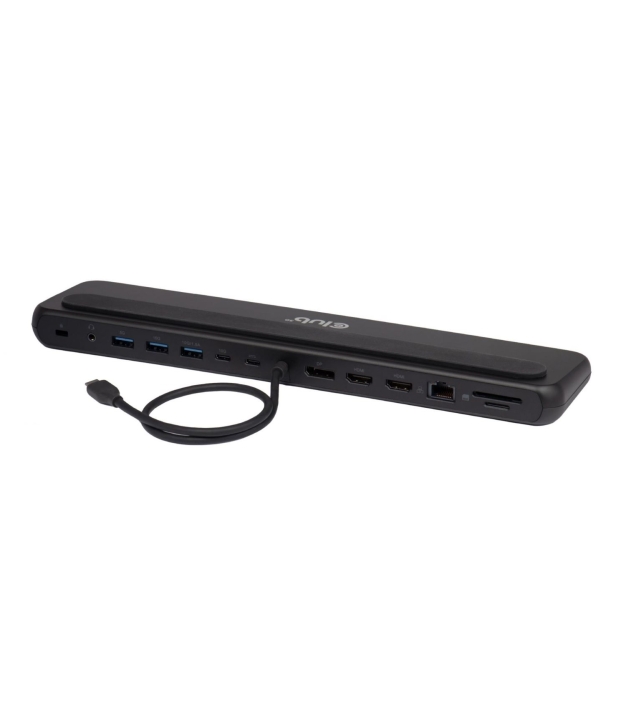

CLUB3D CSV-2541 laptop dock/port replicator Docking USB 3.2 Gen 1 (3.1 Gen 1) Type-C Black
MPN:
CSV-2541
Brand:
CLUB3D
Resolution Class:
8K Ultra HD
Host Connection:
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB-C Charging Power:
100 W
€246.59
/ incl. VAT
€203.79
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
4 in Stock
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
The CSV-2541 is a USB Type-C® 10Gbps 12-in-1 Triple Displays Docking Station with 2x HDMI™, 1x DisplayPort™, 1x USB Type-C® data port, 3x USB Type-A, RJ45, Card reader ,3.5mm audio port and USB Type-C® charging port, providing an ideal solution for extending the USB Type-C® or Thunderbolt host, especially for those host with a single USB Type-C® port. With bottom bracket design, it can be a stable stand for your laptops.
Specifications
General
Model
CSV-2541
Storage
Compatible Card Types
MicroSD (TransFlash), SD
Display
Refresh Rate
Refresh rate (Hz) is how many times per second the screen redraws its image. 60 Hz is the standard for productivity; 120-144 Hz feels noticeably smoother for everyday use; 240+ Hz benefits competitive gaming. Higher refresh rate also reduces motion blur.
60 Hz
Max Output Resolution
Highest resolution the dock can drive to a single connected display. 7680 x 4320 = 8K (requires Thunderbolt 5 / DisplayPort 2.1).
7680 x 4320 pixels
HDR Support
High Dynamic Range . wider brightness and colour range for more realistic content.
Yes
USB-C DisplayPort Alt-Mode
Yes
Connectivity
Card Reader
Yes
Connection Type
Docking
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
Yes
Ethernet Data Rates
10/100/1000 Mbit/s
LAN Ports
1
HDMI Ports
2
Headphone Outputs
1
USB 3.2 Gen 1 Type-A Ports
3
DisplayPort Ports
1
HDCP
HDCP (High-bandwidth Digital Content Protection) is the copy-protection signalling required to play DRM-protected 4K and 8K video (Netflix UHD, Blu-ray, streaming services). Without HDCP support on both the GPU and the display, those streams downscale or
Yes
HDCP Version
1.4/2.3
USB 3.2 Gen 1 Type-C Ports
2
Audio
Headphone Output
3.5 mm
Power
USB Power Delivery
Allows charging via USB-C. PD wattage determines charging speed.
Yes
USB-PD Revision
3.0
Power Connector
USB Type-C
Power Source
USB
Compatibility
Windows Support
Windows 10/Windows 11
Physical
Weight
0.438000
Colour
Black
Additional
Warranty
24
SKU
1448449
EAN
8719214473525
HS Code
8473 3020
