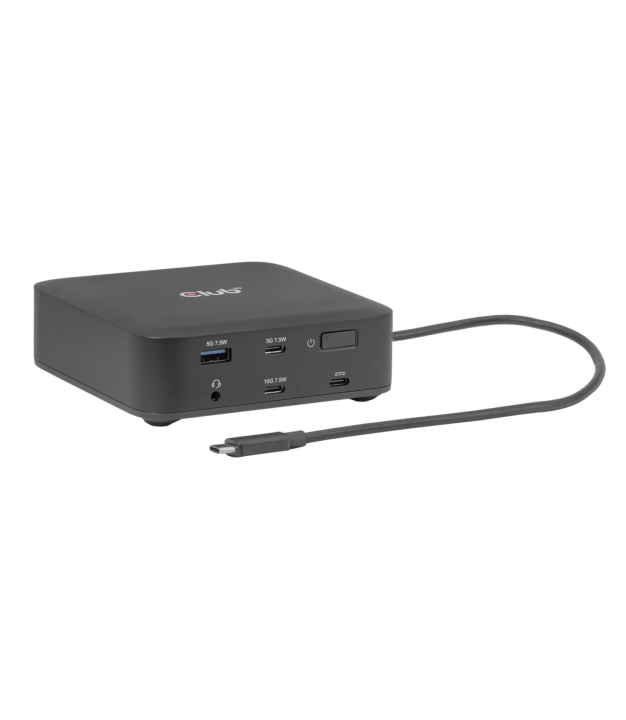

CLUB3D CSV-2542 12-1 USB-C® Quad DisplayLink Docking Station 2x Display- Port™ 8K60Hz + 2x HDMI™ 4K60Hz PD3.0 100Watt Ethernet 2.5G
MPN:
CSV-2542
Brand:
CLUB3D
Resolution Class:
8K Ultra HD
Host Connection:
USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB-C Charging Power:
100 W
€305.63
/ incl. VAT
€252.59
/ excl. VAT
/ incl. VAT
/ excl. VAT
This product is currently out of stock.
Subscribe to back in stock notification.
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
Description:
• QUAD DISPLAY DOCKING STATION: Working on any PC or MAC in 4K,
thanks to DisplayLink technology.
• RELIABLE PERFORMANCE: USB bus powered or via external USB-C®
power adapter; 100W Power Delivery 3.0 pass through.
• 2.5 GIGABIT ETHERNET: Features a 2.5Gbps network controller that
delivers speeds of 10/100/1000/2500Mbps; For laptops / devices
without an Ethernet.
• 12-PORT USB-C®: Expand the connectivity of a USB-C® computer
by adding five USB Ports (3x USB Type-A, 2x Type-C®) and a Power
Delivery 3.0 USB-C® Port Max. 100Watt.
• QUAD DISPLAY DOCKING STATION: Working on any PC or MAC in 4K,
thanks to DisplayLink technology.
• RELIABLE PERFORMANCE: USB bus powered or via external USB-C®
power adapter; 100W Power Delivery 3.0 pass through.
• 2.5 GIGABIT ETHERNET: Features a 2.5Gbps network controller that
delivers speeds of 10/100/1000/2500Mbps; For laptops / devices
without an Ethernet.
• 12-PORT USB-C®: Expand the connectivity of a USB-C® computer
by adding five USB Ports (3x USB Type-A, 2x Type-C®) and a Power
Delivery 3.0 USB-C® Port Max. 100Watt.
Specifications
Display
Refresh Rate
Refresh rate (Hz) is how many times per second the screen redraws its image. 60 Hz is the standard for productivity; 120-144 Hz feels noticeably smoother for everyday use; 240+ Hz benefits competitive gaming. Higher refresh rate also reduces motion blur.
60 Hz
Supported Displays
4
Max Output Resolution
Highest resolution the dock can drive to a single connected display. 7680 x 4320 = 8K (requires Thunderbolt 5 / DisplayPort 2.1).
7680 x 4320 pixels
Connectivity
Card Reader
No
Connection Type
Docking
Memory Bandwidth
Memory bandwidth (GB/s or Gbps) is the maximum amount of data the GPU can move to and from VRAM per second. High-resolution textures and 4K rendering need high bandwidth; a fast GPU with too-narrow bandwidth becomes the bottleneck. Higher is always better
10 Gbit/s
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
Yes
Ethernet Data Rates
10/100/1000/2500 Mbit/s
LAN Ports
1
HDMI Ports
2
Headphone Outputs
1
Microphone Input
No
USB 2.0 Ports (Rear)
3
USB 3.2 Gen 1 Type-A Ports
3
USB 3.2 Gen 2 Type-C Ports
3
DisplayPort Ports
2
USB Ports with PowerShare
USB ports that keep delivering charge to attached devices when the host laptop is off or asleep.
1
Audio
Headphone Output
3.5 mm
Power
USB Power Delivery
Allows charging via USB-C. PD wattage determines charging speed.
Yes
Thunderbolt 3 PD
No
USB-PD Revision
3.0
Compatibility
macOS Support
Mac OS X 15.0 Sequoia
Windows Support
Windows 11
Physical
Weight
0.361000
Depth
110 mm
Height
35 mm
Width
110 mm
Cable Lock Slot Type
Kensington
Colour
Black
Additional
Cable Lock Slot
Yes
Certifications
Meets ROHS, FCC, and CE EMI requirements
Warranty
24
SKU
1454584
EAN
8719214473648
HS Code
8474 3020
