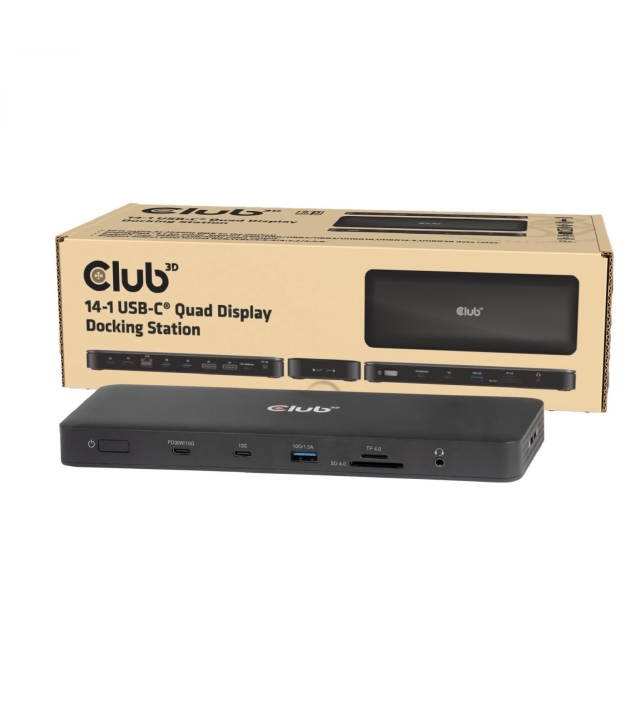

CLUB3D 14-1 USB-C® Quad Display Docking Station

MPN: CSV-2540 Brand: CLUB3D

Resolution Class: 8K Ultra HD

Host Connection: USB 3.2 Gen 1 (3.1 Gen 1) Type-C

USB-C Charging Power: 100 W

MPN: CSV-2540 Brand: CLUB3D Resolution Class: 8K Ultra HD Host Connection: USB 3.2 Gen 1 (3.1 Gen 1) Type-C USB-C Charging Power: 100 W

€281.49 / incl. VAT

€232.64 / excl. VAT

This product is currently out of stock. Subscribe to back in stock notification.

Short description

Product Description

Return Policy

Warranty

Delivery Information

Have questions? Expert help just one click away Contact Us

Product Description

- First native 4x 4K60Hz dock on the market!
- DisplayPort™ 2.1 Alt mode. Support RBR/HBR/HBR2/HBR3/UHBR10,UHBR13.5,UHBR20 data rates.
- Support max. 7680x4320/30Hz video output. Pixel format RGB,YCbCr4:4:4/4:2:2/4:2:0. HDR10+ and HDCP V1.4/V2.3.
- The USB-C® port close to the power switch supports max PD 30W(5V@3A,9V@3A,15@2A,[email protected]) charging for USB-C® mobile phone and other devices.
- USB-A 5Gbps has 900mA.The rest of the USB ports supports 1.5A downstream charging.
- DisplayPort™ supports DP++ which enables to use a DP™ to HDMI™ adapters.
- Power Switch & Power indicator LED.
- Making full use of external 150W power, offering max 100W for connected PC/Laptop as well as max 30W downstream charging for connected USB-C® mobile devices.
- Ultra-fast 2.5G speed supported, offering an even more seamless and responsive internet experience.
- Widely Compatibility: compatible with all Thunderbolt™ and full-featured USB-C® laptops.

Specifications

General

Model CSV-2540

Storage

Compatible Card Types MicroSD (TransFlash), SD

Display

Refresh Rate Refresh rate (Hz) is how many times per second the screen redraws its image. 60 Hz is the standard for productivity; 120-144 Hz feels noticeably smoother for everyday use; 240+ Hz benefits competitive gaming. Higher refresh rate also reduces motion blur. 60 Hz

Max Output Resolution Highest resolution the dock can drive to a single connected display. 7680 x 4320 = 8K (requires Thunderbolt 5 / DisplayPort 2.1). 7680 x 4320 pixels

HDR Support High Dynamic Range . wider brightness and colour range for more realistic content. Yes

LED Indicators Yes

USB-C DisplayPort Alt-Mode Yes

Connectivity

Card Reader Yes

Connection Type Docking

Ethernet (LAN Port) Wired network port. More stable and faster than Wi-Fi for office and server use. Yes

Ethernet Data Rates 10/100/1000/2500 Mbit/s

LAN Ports 1

HDMI Ports 2

Headphone Outputs 1

USB 3.2 Gen 1 Type-A Ports 2

DisplayPort Ports 2

USB Ports with PowerShare USB ports that keep delivering charge to attached devices when the host laptop is off or asleep. 1

HDCP HDCP (High-bandwidth Digital Content Protection) is the copy-protection signalling required to play DRM-protected 4K and 8K video (Netflix UHD, Blu-ray, streaming services). Without HDCP support on both the GPU and the display, those streams downscale or Yes

HDCP Version 1.4/2.3

USB 3.2 Gen 1 Type-C Ports 3

Audio

Headphone Output 3.5 mm

Power

USB Power Delivery Allows charging via USB-C. PD wattage determines charging speed. Yes

USB-PD Revision 3.0

Power Connector USB Type-C

Power Source USB

Compatibility

Windows Support Windows 10/Windows 11

Physical

Weight 0.361000

Colour Black

Host Cable Length 1 m

Additional

Warranty 24

SKU 1448451

EAN 8719214473501

HS Code 8473 3020
