Special offer

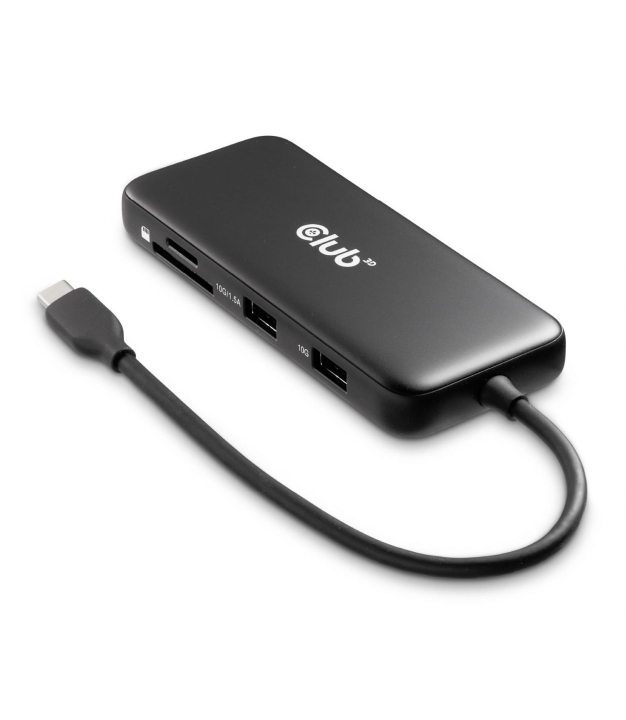

CLUB3D 8-1 Portable Dock USB Type-C® 10Gbps to HDMI™ and DisplayPort™ 8K30Hz PD Max.100Watt
MPN:
CSV-2551
Brand:
CLUB3D
Host Connection:
USB Type-C
USB-C Charging Power:
100 W
€123.52
/ incl. VAT
€102.08
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
3 in Stock
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
• 8-PORT USB Type-C®: Expand the connectivity of a USB Type-C®
computer by adding three USB 10Gbps Ports (2x USB Type-A, 1x
Type-C®) a Power Delivery 3.0 USB Type-C® Port Max. 100Watt.
• 1 GBASE-T GIGABIT ETHERNET: Features a 1Gb network controller
that delivers speeds of 10/100/1000Mbps; For laptops / devices without
a USB Type-A or Ethernet, such as MacBook /iPad Air / Pro; USB
Type-C® connectivity while providing power for PD3.0 charging.
• RELIABLE PERFORMANCE: USB bus powered or via external USB
Type-C® power adapter; 100W Power Delivery 3.0 pass through with
15W dedicated to the functioning of this product,
computer by adding three USB 10Gbps Ports (2x USB Type-A, 1x
Type-C®) a Power Delivery 3.0 USB Type-C® Port Max. 100Watt.
• 1 GBASE-T GIGABIT ETHERNET: Features a 1Gb network controller
that delivers speeds of 10/100/1000Mbps; For laptops / devices without
a USB Type-A or Ethernet, such as MacBook /iPad Air / Pro; USB
Type-C® connectivity while providing power for PD3.0 charging.
• RELIABLE PERFORMANCE: USB bus powered or via external USB
Type-C® power adapter; 100W Power Delivery 3.0 pass through with
15W dedicated to the functioning of this product,
Specifications
General
Certifications
CE/Federal Communications Commission (FCC)/RoHS
Model
CSV-2551
Storage
Compatible Card Types
MicroSD (TransFlash), SD
Display
DisplayPort Version
DisplayPort version sets max resolution and refresh. DP 1.4 = 4K at 120 Hz, 8K at 60 Hz with DSC; DP 2.1 = 4K at 240 Hz, 8K at 120 Hz. DisplayPort tends to deliver higher refresh-rate gaming-friendly modes than HDMI at the same generation.
1.4
USB-C DisplayPort Alt-Mode
Yes
Connectivity
Card Reader
Yes
Connection Type
Wired
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
Yes
Ethernet Data Rates
10/100/1000 Mbit/s
LAN Ports
1
HDMI Ports
1
Microphone Input
No
DisplayPort Ports
1
HDCP
HDCP (High-bandwidth Digital Content Protection) is the copy-protection signalling required to play DRM-protected 4K and 8K video (Netflix UHD, Blu-ray, streaming services). Without HDCP support on both the GPU and the display, those streams downscale or
Yes
HDCP Version
1.4/2.2
HDMI Version
HDMI version determines the maximum supported resolution and refresh rate. HDMI 2.0 = 4K at 60 Hz, HDMI 2.1 = 4K at 120 Hz or 8K at 60 Hz with HDR. To run 4K120 the HDMI cable, source and display must all be 2.1.
2.1
USB 3.2 Gen 1 Type-C Ports
1
USB 3.2 Gen 2 Type-A Ports
2
Power
USB Power Delivery
Allows charging via USB-C. PD wattage determines charging speed.
Yes
USB-PD Revision
3.0
Power Connector
USB Type-C
Power Source
USB
Compatibility
macOS Support
Yes
Windows Support
Yes
Physical
Weight
0.107000
Colour
Black
Host Cable Length
0.17 m
Additional
Warranty
24
SKU
1448456
EAN
8719214473488
HS Code
8473 3020
