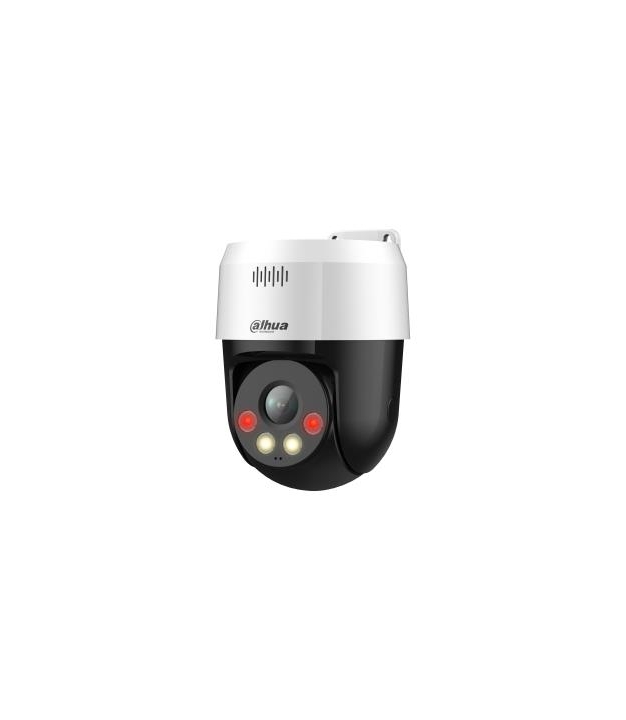

Dahua Technology Lite DH-SD2A500HB-GN-AW-PV-S2 security camera Dome IP security camera Indoor & outdoor 2560 x 1920 pixels Ceiling/wall
MPN:
SDT2A200-2F-NB-A-PV
Brand:
DAHUA
Connection Type:
Wired
Night Vision:
Yes
Resolution:
2560 x 1920 pixels
€177.14
/ incl. VAT
€146.40
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
1 in Stock
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
The Active Defense series of small PT cameras raises the bar on performance. After detecting an intrusion, it triggers sound and light alarms, and then instantly relays vital information on the intrusion to the mobile client, keeping you informed no matter where you are. It supports two-way talk, allowing you to communicate with people in front of the camera in real time. It also records videos in full color, and uses Smart Dual Light to help produce vivid images, making it easy to obtain information on events, and reduce light pollution.
Specifications
General
Model
SDT2A200-2F-NB-A-PV
Type
IP security camera
Built In Light
Yes
Dc Output Current
1.5 A
Digital Wide Dynamic Range Dwdr
Yes
Pan Preset Speed
62 °/sec
Preset Points
Yes
Streaming Method
Multicast/Unicast
Memory
RAM
RAM (Random Access Memory) is the system's working memory where active applications and the operating system live. More RAM means smoother multitasking and bigger files can be edited without swapping to disk. 16 GB is the comfortable minimum for modern sy
128 MB
Storage
Compatible Card Types
MicroSD (TransFlash)
Built-in HDD
No
Max Memory Card
512 GB
ROM Capacity
128 MB
Connectivity
Bluetooth
No
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
Yes
Wi-Fi
Yes
Card Reader
Yes
LAN Ports
1
Wi-Fi
Wi-Fi generation sets peak speed and how well the device coexists with neighbours. Wi-Fi 6 (802.11ax) is the modern baseline; Wi-Fi 6E adds the cleaner 6 GHz band; Wi-Fi 7 (Be) brings multi-link operation and even higher peaks. The router and the client m
802.11b/802.11g/Wi-Fi 4 (802.11n)
LAN Speed
Fast Ethernet
Audio
Audio Formats
G.711/G.726
Audio Input Channels
1.0 channels
Audio Channels
2.0 = stereo. 5.1 = surround with subwoofer. 7.1 = full surround for gaming/cinema.
1.0 channels
Bit Depth / Bitrate
32 Kbps-8192 Kbps
Built-in Speakers
Yes
Power
Max Power Draw
11 W
Typical Power Draw
Typical board power (W) is the power draw under normal gaming load. Use it to estimate electricity cost and to size cooling. Peak transient spikes can be 20-30 percent higher, which is why PSU recommendations leave a buffer.
3.5 W
Power Source
DC
DC Output Voltage
12
Software
Management Software
Smart PSS; DMSS; player; configtool; NVR; Smart Player
Camera
Shutter Speed
Exposure time range. Faster shutter reduces motion blur in bright scenes.
1/3 - 1/100000 s
Frame Rate
Frames per second (fps). 30 fps = standard; 60 fps = smoother video.
30 fps
LED Type
IR
Min. Illumination
Minimum lux for clear image. Lower = better in dark environments. 0 lux = IR only.
0 lx
Sensor Size
Larger sensor = better low-light performance. Full-frame > APS-C > MFT > 1/2.8".
1/2.8
Progressive Scan
Captures full frames vs interlaced (alternating lines). Reduces motion blur.
Yes
Sensor Type
CMOS: most cameras today. CCD: older, higher quality. BSI: better low-light.
CMOS
Video Resolutions
1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2560 x 1440/2560 x 1920/352 x 240/352 x 288/704 x 480/704 x 576
Supported Video Modes
1080p/720p
Resolution (MP)
Higher megapixels = more detail. 12MP+ is sufficient for most uses.
5 MP
Wide Dynamic Range (WDR)
Captures detail in both bright and dark areas simultaneously.
Yes
Backlight Compensation (BLC)
BLC prevents silhouetting when subject is backlit.
Yes
Bitrate Control
VBR: variable bitrate (better quality). CBR: constant (predictable bandwidth).
Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Min Focusing Distance
0.3 m
Detection Distance
77.4 m
Highlight Compensation (HLC)
HLC reduces overexposed bright spots (headlights, floodlights) in the frame.
Yes
Identification Distance
7.74 m
Field of View (Diagonal)
104.8 °
Field of View (Horizontal)
80.4 °
Field of View (Vertical)
58.1 °
Max Aperture (f-number)
Lower f-number = wider aperture = better low-light performance.
1.6
Night Vision
Yes
IR Night Vision Range
30 m
Noise Reduction
Yes
Noise Reduction Technology
3D DNR: better quality, reduces temporal noise. 2D DNR: lower latency.
2D noise reduction, 3D noise reduction
Observation Distance
31 m
Recognition Distance
15.5 m
Signal-to-Noise Ratio
Higher SNR (dB) = cleaner image with less grain/noise. 50+ dB is good.
55 dB
White Balance
Corrects colour cast under different lighting. ATW = auto-tracking white balance.
ATW/Auto/Indoor/Manual/Outdoor
PTZ Pan Control
Yes
PTZ Tilt Control
Yes
Pan Range
0 - 345 °
Video Streaming
Yes
Fixed Focal Length
4 mm
Camera Shutter Type
Electronic
Networking
Network Protocols
UDP;FTP;RTMP;IPv6;IPv4;IP Filter;DNS;RTCP;HTTP;NTP;SS L;DHCP;RTP;SMTP;HTTPS;TCP/IP;RTSP;DDNS;ARP
Max Concurrent Users
20 user(s)
Features
Number of Cameras
1
PTZ Modes
Pan-Tilt-Zoom presets and auto-tracking modes.
Preset sequence
Video Compression
H.265 (HEVC): half the storage of H.264 at same quality. MJPEG: high CPU usage.
H.264/H.264+/H.264B/H.265/H.265+/M-JPEG
Gain Control Type
Auto/Manual
Ptz Control
Yes
Compatibility
Mobile OS Support
Android/iOS/Windows Mobile
Physical
Weight
0.500000
Form Factor
Dome
IP Rating
IP66: dust-tight + jets. IP67: waterproof 1m/30min. IP68: continuous immersion.
IP66
Mounting Type
Ceiling/wall
Operating Humidity
0 - 95 %
Installation Type
Ceiling: dome cameras. Wall: bullet/box cameras. Pole: outdoor cameras.
Indoor & outdoor
Colour
Black, White
Height
140.5 mm
Tilt Adjustment
0 - 80 °
Tilt Preset Speed
36.3 °/sec
Tilt Speed
36.4 °/sec
Additional
Certifications
CE: EN55032/EN50130-4/EN IEC61000-3-3/EN IEC61000-3-2/EN55024/EN55035/EN62368-1, FCC: 47 CFR FCC Part15, Subpart B, ANSI C63.4:2014
Warranty
36
SKU
1425270
EAN
6939554934919
