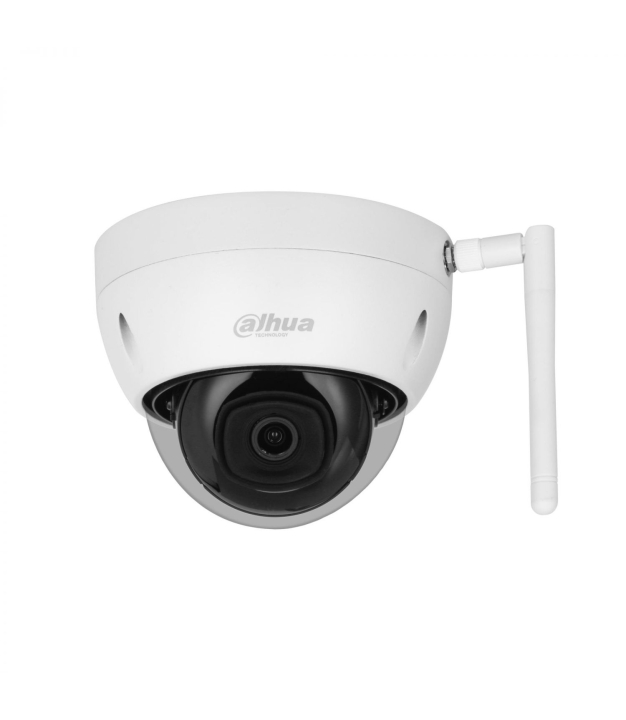

Dahua Technology Consumer DH-IPC-HDBW1230DEP-SW-0280B security camera Dome IP security camera Outdoor 1920 x 1080 pixels Ceiling
MPN:
IPC-HDBW1230DE-SW-0280B
Brand:
DAHUA
Connection Type:
Wired & Wireless
Resolution:
1920 x 1080 pixels
€148.10
/ incl. VAT
€122.40
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
4 in Stock
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
> 2-MP 1/3" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 2 MP (1920 × 1080)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED.
> SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> DWDR, 3D NR, BLC, digital watermarking, applicable to various monitoring scenes.
> Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, SMD (human).
> Supports single antenna 2.4G Wi-Fi that covers a range of up to 80 m in an open area.
> Supports max. 256 G Micro SD card.
> 12 VDC power supply.
> IP67, IK10 protection.
> Outputs max. 2 MP (1920 × 1080)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED.
> SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> DWDR, 3D NR, BLC, digital watermarking, applicable to various monitoring scenes.
> Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, SMD (human).
> Supports single antenna 2.4G Wi-Fi that covers a range of up to 80 m in an open area.
> Supports max. 256 G Micro SD card.
> 12 VDC power supply.
> IP67, IK10 protection.
Specifications
General
Model
IPC-HDBW1230DE-SW-0280B
Type
IP security camera
Angle Rotation
355 °
Channel Bandwidth
36 MHz
Certifications
CE/Federal Communications Commission (FCC)
Digital Wide Dynamic Range Dwdr
Yes
Fixed Focus
Yes
Live View
Yes
Luminous Flux (lm)
0.0025 lm
Web Based Management
Yes
Storage
Compatible Card Types
MicroSD (TransFlash)
Built-in HDD
No
Flash Memory
64 MB
Max Memory Card
256 GB
ROM Capacity
16 MB
Display
Field Of View Fov Angle
120 °
Connectivity
Bluetooth
No
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
Yes
Wi-Fi
Yes
Card Reader
Yes
LAN Ports
1
Wi-Fi
Wi-Fi generation sets peak speed and how well the device coexists with neighbours. Wi-Fi 6 (802.11ax) is the modern baseline; Wi-Fi 6E adds the cleaner 6 GHz band; Wi-Fi 7 (Be) brings multi-link operation and even higher peaks. The router and the client m
802.11b/802.11g/Wi-Fi 4 (802.11n)
LAN Speed
Fast Ethernet
Audio
Bit Depth / Bitrate
9 - 4096
Power
Max Power Draw
4.9 W
Typical Power Draw
Typical board power (W) is the power draw under normal gaming load. Use it to estimate electricity cost and to size cooling. Peak transient spikes can be 20-30 percent higher, which is why PSU recommendations leave a buffer.
2 W
Power Source
DC
DC Output Voltage
12
Software
Management Software
Smart PSS; DSS; DMSS
Firmware Upgradeable
Yes
Camera
Shutter Speed
Exposure time range. Faster shutter reduces motion blur in bright scenes.
1/3 s-1/100, 000 s s
Flip / Mirror Image
Flip: vertical. Mirror: horizontal. For cameras mounted upside-down.
Yes
Frame Rate
Frames per second (fps). 30 fps = standard; 60 fps = smoother video.
30 fps
LED Type
IR
Min. Illumination
Minimum lux for clear image. Lower = better in dark environments. 0 lux = IR only.
0.0025 lx
Sensor Size
Larger sensor = better low-light performance. Full-frame > APS-C > MFT > 1/2.8".
1/2.8
Progressive Scan
Captures full frames vs interlaced (alternating lines). Reduces motion blur.
Yes
Sensor Type
CMOS: most cameras today. CCD: older, higher quality. BSI: better low-light.
CMOS
Video Resolutions
1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)
Supported Video Modes
1080p/720p/960p
Resolution (MP)
Higher megapixels = more detail. 12MP+ is sufficient for most uses.
2 MP
Video Recording
Yes
Wide Dynamic Range (WDR)
Captures detail in both bright and dark areas simultaneously.
Yes
Optical Zoom
Optical zoom uses lens movement (quality preserved). Digital zoom crops (loses quality).
No
Adjustable Shutter Speed
Auto/Manual
Backlight Compensation (BLC)
BLC prevents silhouetting when subject is backlit.
Yes
Bitrate Control
VBR: variable bitrate (better quality). CBR: constant (predictable bandwidth).
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Detection Distance
46.9 m
Dynamic Range
56 dB
Focal Length
2.8 mm
Identification Distance
4.7 m
Field of View (Diagonal)
120 °
Field of View (Horizontal)
100 °
Field of View (Vertical)
53 °
Max Aperture (f-number)
Lower f-number = wider aperture = better low-light performance.
2
Night Vision
Yes
Noise Reduction
Yes
Noise Reduction Technology
3D DNR: better quality, reduces temporal noise. 2D DNR: lower latency.
3D noise reduction
IR LEDs
3
Observation Distance
18.8 m
Recognition Distance
9.4 m
Signal-to-Noise Ratio
Higher SNR (dB) = cleaner image with less grain/noise. 50+ dB is good.
56 dB
Video Formats
H.264/H.264B/H.265
White Balance
Corrects colour cast under different lighting. ATW = auto-tracking white balance.
Custom modes/Manual/Natural/Outdoor/Street lamp
PTZ Pan Control
Yes
PTZ Tilt Control
Yes
Pan Range
0 - 355 °
Video Streaming
Yes
Camera Shutter Type
Electronic
Lens Diameter
2.8 mm
Networking
Antenna Type
External
Antennas Quantity
1
Network Protocols
IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast; RTMP
Max Concurrent Users
6 user(s)
Wi Fi Data Rate Max
2400 Mbit/s
Features
HTTPS Encryption
Yes
Number of Cameras
1
Privacy Masking
Blocks specific zones from being recorded to protect privacy.
Yes
Security Protocols
HTTPS
Video Compression
H.265 (HEVC): half the storage of H.264 at same quality. MJPEG: high CPU usage.
H.264/H.264B/H.264H/H.265
Motion Detection
Yes
ROI Encoding
Region of Interest . allocates more bitrate to key areas for sharper detail there.
Yes
Gain Control Type
Auto
Motion Sensor
Yes
Smart Ir
Yes
Smartphone Tablet Remote Support
Yes
Compatibility
Mobile OS Support
Android/iOS
Web Browser Access
Yes
Physical
Weight
0.414000
Form Factor
Dome
IP Rating
IP66: dust-tight + jets. IP67: waterproof 1m/30min. IP68: continuous immersion.
IP67
IK Rating
Impact protection rating IK00–IK10. IK10 = withstands 20J impact.
IK10
Mounting Type
Ceiling
Operating Humidity
0 - 95 %
Installation Type
Ceiling: dome cameras. Wall: bullet/box cameras. Pole: outdoor cameras.
Outdoor
Colour
White
Height
88.7 mm
Tilt Adjustment
0 - 75 °
Additional
Warranty
36
SKU
1391443
EAN
6923172539960
