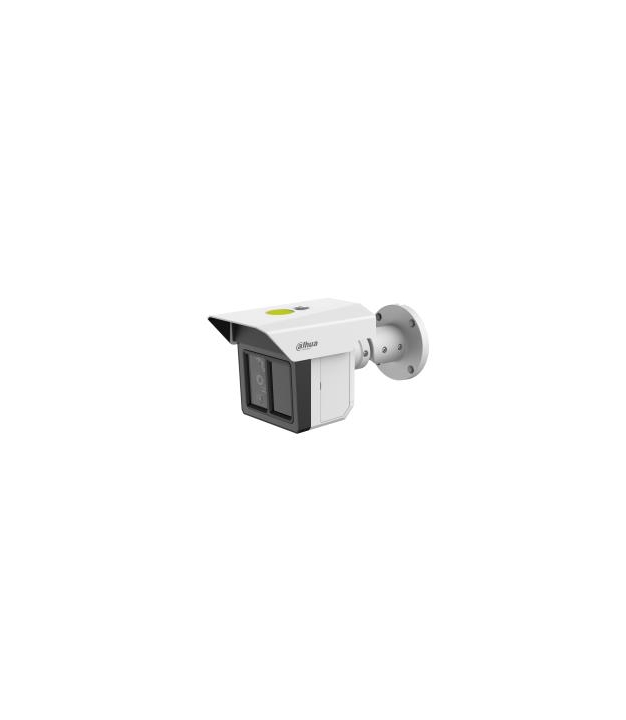

Dahua Technology WizMind DH-IPC-MFW5241T2P-E3-ASE-0360/1200/2500B security camera Turret IP security camera Indoor & outdoor 2960 x 1688 pixels Ceiling
MPN:
IPC-MFW5241T2-E3-ASE
Brand:
DAHUA
Connection Type:
Wired
Night Vision:
Yes
Resolution:
2960 x 1688 pixels
€1,001.88
/ incl. VAT
€828.00
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
6 in Stock
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
Launched by Dahua Technology, Dahua WizMind is a full portfolio of solutions composed of project-oriented products including IPC, IVSS,NVR, PTZ, XVR, Thermal and software platform which adopts industry-leading deep learning algorithms. Focusing on customer's requirements, WizMind provides precise, reliable and comprehensive AI solutions for verticals.
The Triple-Sight Long Range Perimeter Protection Bullet WizMind Network Camera leverages its deep learning algorithms and multichannel ultra-long-range perimeter detection technology to accurately detect targets over long ranges and accurately classify humans and vehicles. By employing Micro-PTZ and illumination by area technology, the monitoring range and illumination can be precisely adjusted, enhancing the quality of images and the effectiveness of intelligent detection. The camera is dustproof, waterproof and vandal-proof, and has IP67 and IK10 certification.
Long-Range Perimeter Protection
The camera features long-range perimeter protection that reaches up to 100 meters by leveraging multi-channel fusion and illumination by area technology. With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire and intrusion) are largely reduced.
Illumination by Area
This technology allows you to independently control the lighting in multiple areas of the image, enabling the device to easily adapt to different scenes, save power and perform more efficiently.
AI-ISP
With AI ISP technology, the camera is able to easily adapt to scenes, producing high quality images that reveal the fine details of targets.
Two-way Talk
With its built-in high-sensitivity microphone and high-power speaker, the camera realizes two-way talk through the mobile app.
Cyber Security
Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malicious programs from
compromising the device.
Protection (IP67, IK10, Wide Voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes.
IK10: The enclosure can stand the punch more than 5 times from a 5 kg hammer falling from a height of 40 cm (Impact energy is 20J).
Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
The Triple-Sight Long Range Perimeter Protection Bullet WizMind Network Camera leverages its deep learning algorithms and multichannel ultra-long-range perimeter detection technology to accurately detect targets over long ranges and accurately classify humans and vehicles. By employing Micro-PTZ and illumination by area technology, the monitoring range and illumination can be precisely adjusted, enhancing the quality of images and the effectiveness of intelligent detection. The camera is dustproof, waterproof and vandal-proof, and has IP67 and IK10 certification.
Long-Range Perimeter Protection
The camera features long-range perimeter protection that reaches up to 100 meters by leveraging multi-channel fusion and illumination by area technology. With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire and intrusion) are largely reduced.
Illumination by Area
This technology allows you to independently control the lighting in multiple areas of the image, enabling the device to easily adapt to different scenes, save power and perform more efficiently.
AI-ISP
With AI ISP technology, the camera is able to easily adapt to scenes, producing high quality images that reveal the fine details of targets.
Two-way Talk
With its built-in high-sensitivity microphone and high-power speaker, the camera realizes two-way talk through the mobile app.
Cyber Security
Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malicious programs from
compromising the device.
Protection (IP67, IK10, Wide Voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes.
IK10: The enclosure can stand the punch more than 5 times from a 5 kg hammer falling from a height of 40 cm (Impact energy is 20J).
Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
Specifications
General
Model
IPC-MFW5241T2-E3-ASE
Type
IP security camera
Angle Rotation
360 °
Detect Distance Tele
77.8 m
Detect Distance Wide
63.8 m
Identify Distance Tele
7.8 m
Identify Distance Wide
6.4 m
Mirror
Yes
Observe Distance Tele
31.1 m
Observe Distance Wide
25.5 m
Recognize Distance Tele
15.6 m
Recognize Distance Wide
12.8 m
Streaming Method
Multicast
Storage
Compatible Card Types
MicroSD (TransFlash)
Built-in HDD
No
Max Memory Card
256 GB
ROM Capacity
128 MB
Connectivity
Bluetooth
No
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
Yes
Wi-Fi
No
LAN Ports
1
LAN Speed
Fast Ethernet
Audio
Bit Depth / Bitrate
32 Kbps - 8192 Kbps
Power
Typical Power Draw
Typical board power (W) is the power draw under normal gaming load. Use it to estimate electricity cost and to size cooling. Peak transient spikes can be 20-30 percent higher, which is why PSU recommendations leave a buffer.
2.2 W
Power Source
DC, PoE
DC Output Voltage
12
Camera
Shutter Speed
Exposure time range. Faster shutter reduces motion blur in bright scenes.
1/3 - 1/100000 s
Frame Rate
Frames per second (fps). 30 fps = standard; 60 fps = smoother video.
30 fps
LED Type
IR/White
Min. Illumination
Minimum lux for clear image. Lower = better in dark environments. 0 lux = IR only.
0 lx
Sensor Size
Larger sensor = better low-light performance. Full-frame > APS-C > MFT > 1/2.8".
1/2.7
Progressive Scan
Captures full frames vs interlaced (alternating lines). Reduces motion blur.
Yes
Sensor Type
CMOS: most cameras today. CCD: older, higher quality. BSI: better low-light.
CMOS
Video Resolutions
1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/2304 x 1296/2688 x 1520/2880 x 1620/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576
Supported Video Modes
1080p/720p
Resolution (MP)
Higher megapixels = more detail. 12MP+ is sufficient for most uses.
5 MP
Wide Dynamic Range (WDR)
Captures detail in both bright and dark areas simultaneously.
Yes
Adjustable Shutter Speed
Auto/Manual
Backlight Compensation (BLC)
BLC prevents silhouetting when subject is backlit.
Yes
Bitrate Control
VBR: variable bitrate (better quality). CBR: constant (predictable bandwidth).
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Focal Length
2.8, 3.6 mm
Highlight Compensation (HLC)
HLC reduces overexposed bright spots (headlights, floodlights) in the frame.
Yes
Identification Distance
6.4 m
Field of View (Diagonal)
136 °
Field of View (Horizontal)
111 °
Field of View (Vertical)
58.5 °
Max Aperture (f-number)
Lower f-number = wider aperture = better low-light performance.
1
Night Vision
Yes
IR Night Vision Range
30 m
Noise Reduction
Yes
Noise Reduction Technology
3D DNR: better quality, reduces temporal noise. 2D DNR: lower latency.
3D noise reduction
IR LEDs
2
Signal-to-Noise Ratio
Higher SNR (dB) = cleaner image with less grain/noise. 50+ dB is good.
56 dB
White Balance
Corrects colour cast under different lighting. ATW = auto-tracking white balance.
Auto/Manual/Natural/Outdoor/Regional custom/Street lamp
PTZ Pan Control
Yes
PTZ Tilt Control
Yes
Pan Range
0 - 360 °
Video Streaming
Yes
Camera Shutter Type
Electronic
Networking
QoS Support
Quality of Service prioritises camera stream traffic on the network.
Yes
Network Protocols
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; P2P; PPPoE; Bonjour; auto registration
Max Concurrent Users
20 user(s)
Features
Tampering Alarm
Yes
Number of Cameras
1
Privacy Masking
Blocks specific zones from being recorded to protect privacy.
Yes
Video Compression
H.265 (HEVC): half the storage of H.264 at same quality. MJPEG: high CPU usage.
H.264/H.264B/H.264H/H.265/M-JPEG
Motion Detection
Yes
AI / Smart Features
AI analytics: face recognition, line crossing, intrusion detection, vehicle detection.
Intrusion/Tripwire
ROI Encoding
Region of Interest . allocates more bitrate to key areas for sharper detail there.
Yes
Gain Control Type
Auto/Manual
Smart Ir
Yes
Compatibility
Mobile OS Support
Android/iOS
Web Browser Access
Yes
Physical
Weight
0.480000
Form Factor
Turret
IP Rating
IP66: dust-tight + jets. IP67: waterproof 1m/30min. IP68: continuous immersion.
IP67
Length
99.1 mm
Mounting Type
Ceiling
Operating Humidity
0 - 95 %
Installation Type
Ceiling: dome cameras. Wall: bullet/box cameras. Pole: outdoor cameras.
Indoor & outdoor
Colour
White
Tilt Adjustment
0 - 78 °
Additional
Certifications
CE-LVD: EN62368-1;, CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Warranty
36
SKU
1429340
EAN
6939554941702
