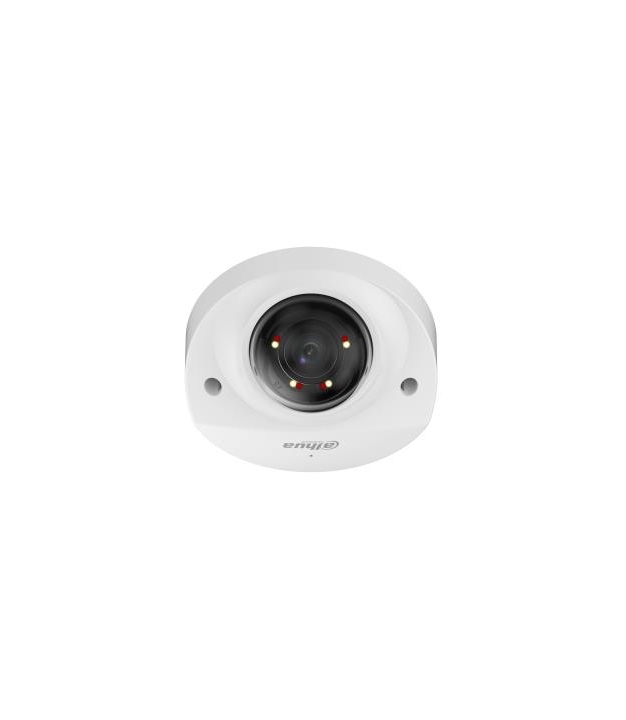

Dahua Technology WizSense IPC-HDBW2449F-AS-IL-0280B security camera Dome IP security camera Outdoor 2688 x 1520 pixels Ceiling/Wall/Pole
€207.64
€171.60 / excl. VAT

Dahua Technology WizSense IPC-HDBW2449F-AS-IL-0280B security camera Dome IP security camera Outdoor 2688 x 1520 pixels Ceiling/Wall/Pole

MPN: IPC-HDBW2449F-AS-IL-0280B Brand: DAHUA
Connection Type: Wired
Resolution: 2688 x 1520 pixels
€207.64 / incl. VAT
€171.60 / excl. VAT
In 2 Business Days
6 in Stock
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions? Expert help just one click away Contact Us

Product Description

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

With advanced deep learning algorithm, Dahua WizSense 2 Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. With starlight technology, this series camera provides a better image effect in the condition of low illuminance.

Smart Dual Light
Dahua Smart Dual Light technology adopts smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the white light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshot and video with full-color image. When the target is out of the monitoring area, the white light is off and the IR illuminator is on, which reduces light pollution efficiently.

SMD Plus
With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.

Perimeter Protection
With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.

Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

Full-color
With high-performance sensor and large aperture lens, Dahua Fullcolor technology can display clear colorful image in the environment of ultra-low illuminance. With this photosensitivity technology, the camera can capture more available light, and display more colorful image details.

Cyber Security
Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malicious programs from compromising the device.

Protection (IP67, IK10, Wide Voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes.
IK10: The enclosure can stand the punch more than 5 times from a 5 kg hammer falling from a height of 40 cm (Impact energy is 20J).
Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

Specifications

General
Model IPC-HDBW2449F-AS-IL-0280B
Type IP security camera
Angle Rotation 360 °
Built In Light Yes
Fixed Focus Yes
Number Privacy Masking Areas 4
Web Based Management Yes
Memory
RAM 128 MB
Storage
Compatible Card Types MicroSD (TransFlash)
Built-in HDD No
Max Memory Card 256 GB
ROM Capacity 128 MB
Connectivity
Bluetooth No
Ethernet (LAN Port) Wired network port. More stable and faster than Wi-Fi for office and server use. Yes
Wi-Fi No
Card Reader Yes
LAN Ports 1
Audio
Audio Input Channels 1.0 channels
Audio Channels 2.0 = stereo. 5.1 = surround with subwoofer. 7.1 = full surround for gaming/cinema. 1.0 channels
Bit Depth / Bitrate H.264: 32 kbps-6144 kbps; H.265: 12 kbps-6144 kbps
Built-in Microphone Yes
Power
Max Power Draw 8.5 W
Typical Power Draw Typical board power (W) is the power draw under normal gaming load. Use it to estimate electricity cost and to size cooling. Peak transient spikes can be 20-30 percent higher, which is why PSU recommendations leave a buffer. 2.3 W
Power Source DC, PoE
DC Output Voltage 12
Power Consumption 3.8 W
Camera
Shutter Speed Exposure time range. Faster shutter reduces motion blur in bright scenes. 1/3 - 1/100000 s
Flip / Mirror Image Flip: vertical. Mirror: horizontal. For cameras mounted upside-down. Yes
IR Cut Filter Mechanically removes IR filter at night for true night vision. Yes
LED Type IR/White
Min. Illumination Minimum lux for clear image. Lower = better in dark environments. 0 lux = IR only. 0.0006 lx
Sensor Size Larger sensor = better low-light performance. Full-frame > APS-C > MFT > 1/2.8". 1/2.9
Progressive Scan Captures full frames vs interlaced (alternating lines). Reduces motion blur. Yes
Sensor Type CMOS: most cameras today. CCD: older, higher quality. BSI: better low-light. CMOS
Video Resolutions 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2560 x 1440/2688 x 1520/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576
Resolution (MP) Higher megapixels = more detail. 12MP+ is sufficient for most uses. 4 MP
Wide Dynamic Range (WDR) Captures detail in both bright and dark areas simultaneously. Yes
Backlight Compensation (BLC) BLC prevents silhouetting when subject is backlit. Yes
Bitrate Control VBR: variable bitrate (better quality). CBR: constant (predictable bandwidth). Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Min Focusing Distance 1.7 m
Detection Distance 63.6 m
Highlight Compensation (HLC) HLC reduces overexposed bright spots (headlights, floodlights) in the frame. Yes
Identification Distance 6.4 m
Field of View (Diagonal) 120 °
Field of View (Horizontal) 101 °
Field of View (Vertical) 54 °
Night Vision Yes
IR Night Vision Range 30 m
Noise Reduction Yes
Noise Reduction Technology 3D DNR: better quality, reduces temporal noise. 2D DNR: lower latency. 3D noise reduction
IR LEDs 4
Observation Distance 25.4 m
Recognition Distance 12.7 m
Signal-to-Noise Ratio Higher SNR (dB) = cleaner image with less grain/noise. 50+ dB is good. 56 dB
White Balance Corrects colour cast under different lighting. ATW = auto-tracking white balance. Auto/Manual/Natural/Outdoor/Regional custom/Street lamp
Pan Range -30 - 30 °
Video Streaming Yes
Fixed Focal Length 2.8 mm
Networking
Network Protocols IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P
Max Concurrent Users 6 user(s)
Features
Alarm Input Output Yes
Tampering Alarm Yes
Number of Cameras 1
Video Compression H.265 (HEVC): half the storage of H.264 at same quality. MJPEG: high CPU usage. H.264/H.264B/H.264H/H.265/M-JPEG
Motion Detection Yes
Alarm Input Channels Dry-contact inputs for external sensors (PIR, door contacts, smoke detectors). 1
Alarm Output Channels Relay outputs to trigger external devices (sirens, lights, door locks). 1
AI / Smart Features AI analytics: face recognition, line crossing, intrusion detection, vehicle detection. Human detection/Intrusion/Tripwire/Vehicle detection
ROI Encoding Region of Interest . allocates more bitrate to key areas for sharper detail there. Yes
Gain Control Type Auto/Manual
Privacy Protection Yes
Voice Codecs G.711a/G.711Mu/G.726/PCM
Physical
Weight 0.410000
Form Factor Dome
IP Rating IP66: dust-tight + jets. IP67: waterproof 1m/30min. IP68: continuous immersion. IP67
IK Rating Impact protection rating IK00–IK10. IK10 = withstands 20J impact. IK10
Mounting Type Ceiling/Wall/Pole
Operating Humidity 0 - 95 %
Installation Type Ceiling: dome cameras. Wall: bullet/box cameras. Pole: outdoor cameras. Outdoor
Colour White
Height 55 mm
Tilt Adjustment 0 - 80 °
Additional
Warranty 36
SKU 1425260
EAN 6923172526922
