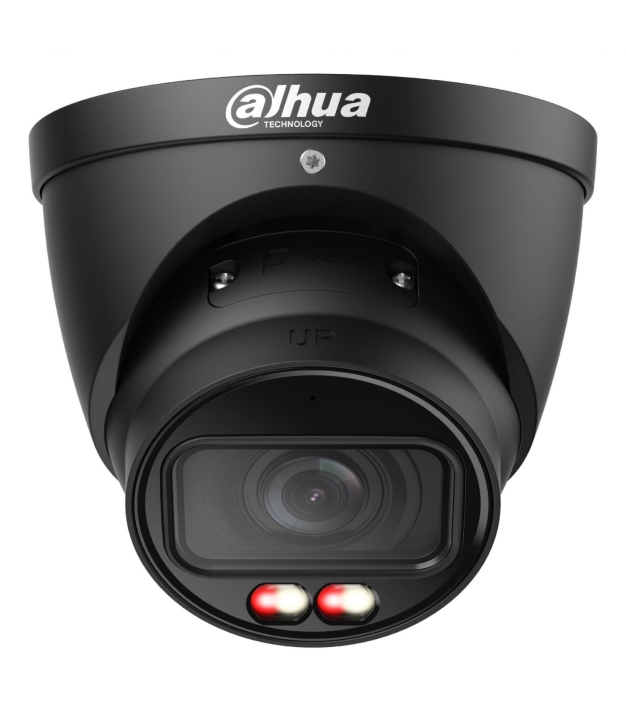

Dahua Technology WizSense 4MP Smart Dual Light Vari-focal Eyeball Network Camera
MPN:
IPC-HDW2449T-ZS-IL-27135-BLACK
Brand:
DAHUA
Connection Type:
Wired
Night Vision:
Yes
Resolution:
2688 x 1520 pixels
€386.23
/ incl. VAT
€319.20
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
13 in Stock
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
With advanced deep learning algorithm, Dahua WizSense 2 Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. With starlight technology, this series camera provides a better image effect in the condition of low illuminance.
Smart Dual Light
Dahua Smart Dual Light technology adopts smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the white light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshot and video with full-color image. When the target is out of the monitoring area, the white light is off and the IR illuminator is on, which reduces light pollution efficiently.
SMD Plus
With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.
Perimeter Protection
With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
Full-color
With high-performance sensor and large aperture lens, Dahua Fullcolor technology can display clear colorful image in the environment of ultra-low illuminance. With this photosensitivity technology, the camera can capture more available light, and display more colorful image details.
Protection (IP67, Wide Voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
With advanced deep learning algorithm, Dahua WizSense 2 Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. With starlight technology, this series camera provides a better image effect in the condition of low illuminance.
Smart Dual Light
Dahua Smart Dual Light technology adopts smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the white light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshot and video with full-color image. When the target is out of the monitoring area, the white light is off and the IR illuminator is on, which reduces light pollution efficiently.
SMD Plus
With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.
Perimeter Protection
With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
Full-color
With high-performance sensor and large aperture lens, Dahua Fullcolor technology can display clear colorful image in the environment of ultra-low illuminance. With this photosensitivity technology, the camera can capture more available light, and display more colorful image details.
Protection (IP67, Wide Voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
Specifications
General
Type
IP security camera
Angle Rotation
360 °
Client Interoperability
ONVIF (Profile S & Profile T & Profile G); CGI
Memory Bandwidth
Memory bandwidth (GB/s or Gbps) is the maximum amount of data the GPU can move to and from VRAM per second. High-resolution textures and 4K rendering need high bandwidth; a fast GPU with too-narrow bandwidth becomes the bottleneck. Higher is always better
100 Mbit/s
Detect Distance Tele
210 m
Detect Distance Wide
64 m
Focus
Motorized
Identify Distance Tele
21 m
Identify Distance Wide
6.4 m
Iris
Yes
Mirror
Yes
Number Privacy Masking Areas
4
Observe Distance Tele
84 m
Observe Distance Wide
25.6 m
Recognize Distance Tele
42 m
Recognize Distance Wide
12.8 m
Memory
RAM
128 MB
Storage
Compatible Card Types
MicroSD (TransFlash)
Built-in HDD
No
Max Memory Card
256 GB
ROM Capacity
128 MB
Connectivity
Bluetooth
No
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
Yes
Wi-Fi
No
Card Reader
Yes
LAN Ports
1
LAN Speed
Fast Ethernet
Audio
Bit Depth / Bitrate
H.264: 32 kbps-6144 kbps / H.265: 12 kbps-6144 kbps
Built-in Microphone
Yes
Audio Codecs
G.711a; G.711Mu; G.726; PCM
Power
Max Power Draw
7.8 W
Typical Power Draw
Typical board power (W) is the power draw under normal gaming load. Use it to estimate electricity cost and to size cooling. Peak transient spikes can be 20-30 percent higher, which is why PSU recommendations leave a buffer.
2.3 W
Power Source
DC, PoE
DC Output Voltage
12
Power Consumption
2.8 W
Software
Management Software
Smart PSS Lite; DSS; DMSS; DoLynk Care
Camera
Shutter Speed
Exposure time range. Faster shutter reduces motion blur in bright scenes.
1/3 - 1/100000 s
Frame Rate
Frames per second (fps). 30 fps = standard; 60 fps = smoother video.
30 fps
LED Type
IR/White
Min. Illumination
Minimum lux for clear image. Lower = better in dark environments. 0 lux = IR only.
0 lx
Sensor Size
Larger sensor = better low-light performance. Full-frame > APS-C > MFT > 1/2.8".
1/2.9
Progressive Scan
Captures full frames vs interlaced (alternating lines). Reduces motion blur.
Yes
Sensor Type
CMOS: most cameras today. CCD: older, higher quality. BSI: better low-light.
CMOS
Video Resolutions
2560 x 1440/2688 x 1520
Supported Video Modes
1440p/1520p
Resolution (MP)
Higher megapixels = more detail. 12MP+ is sufficient for most uses.
4 MP
Wide Dynamic Range (WDR)
Captures detail in both bright and dark areas simultaneously.
Yes
Backlight Compensation (BLC)
BLC prevents silhouetting when subject is backlit.
Yes
Bitrate Control
VBR: variable bitrate (better quality). CBR: constant (predictable bandwidth).
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Min Focusing Distance
0.8 m
Dynamic Range
120 dB
Focal Length
2.7 - 13.5 mm
Highlight Compensation (HLC)
HLC reduces overexposed bright spots (headlights, floodlights) in the frame.
Yes
Field of View (Diagonal)
117 - 32 °
Field of View (Horizontal)
97 - 28 °
Field of View (Vertical)
52 - 16 °
Max Aperture (f-number)
Lower f-number = wider aperture = better low-light performance.
1.5
Night Vision
Yes
IR Night Vision Range
40 m
Noise Reduction
Yes
Noise Reduction Technology
3D DNR: better quality, reduces temporal noise. 2D DNR: lower latency.
3D noise reduction
IR LEDs
4
Signal-to-Noise Ratio
Higher SNR (dB) = cleaner image with less grain/noise. 50+ dB is good.
56 dB
White Balance
Corrects colour cast under different lighting. ATW = auto-tracking white balance.
Auto/Manual/Natural/Outdoor/Regional custom/Street lamp
PTZ Pan Control
Yes
PTZ Tilt Control
Yes
Pan Range
0 - 360 °
Video Streaming
Yes
Camera Shutter Type
Electronic/Mechanical
Networking
Networking Standards
IEEE 802.3af
Network Protocols
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P
Features
Cabling Technology
10/100Base-T(X)
Number of Cameras
1
Video Compression
H.265 (HEVC): half the storage of H.264 at same quality. MJPEG: high CPU usage.
H.264/H.264+/H.264B/H.264H/H.265/H.265+/M-JPEG
Motion Detection
Yes
AI / Smart Features
AI analytics: face recognition, line crossing, intrusion detection, vehicle detection.
Intrusion/Tripwire
ROI Encoding
Region of Interest . allocates more bitrate to key areas for sharper detail there.
Yes
Gain Control Type
Auto/Manual
Privacy Protection
Yes
Compatibility
Mobile OS Support
Android/iOS
Web Browser Access
Yes
Physical
Weight
0.690000
Form Factor
Dome
IP Rating
IP66: dust-tight + jets. IP67: waterproof 1m/30min. IP68: continuous immersion.
IP67
Mounting Type
Ceiling/Wall/Pole
Operating Humidity
0 - 95 %
Installation Type
Ceiling: dome cameras. Wall: bullet/box cameras. Pole: outdoor cameras.
Indoor & outdoor
Colour
Black
Height
108.3 mm
Tilt Adjustment
0 - 78 °
Additional
Certifications
CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Warranty
36
SKU
1459807
EAN
6939554924460
