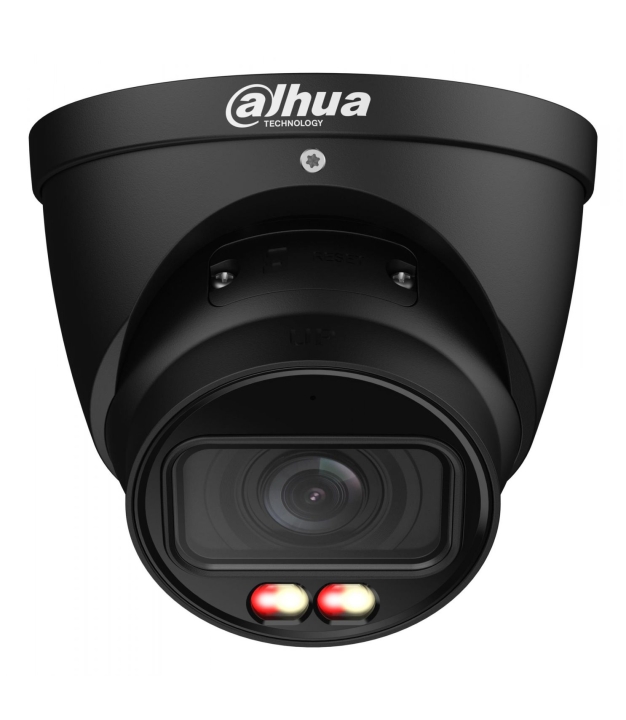

Dahua Technology WizMind IPC-HDW5459T-ZE-IL-2712-Black Turret IP security camera Outdoor 2688 x 1520 pixels Ceiling/Wall/Pole
MPN:
IPC-HDW5459T-ZE-IL-2712-BLACK
Brand:
DAHUA
Connection Type:
Wired
Night Vision:
Yes
Resolution:
2688 x 1520 pixels
€702.77
/ incl. VAT
€580.80
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
9 in Stock
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
- 4-MP 1/1.8 CMOS image sensor, low luminance, and high definition image
- Outputs max. 4 MP (2688 × 1520) @25/30 fps
- Built-in multi-core light, the max. IR distance is 50 m and the max. warm light distance is 40 m
- ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Powered by the Xinghan Large-Scale AI Models-Vision, the camera outstandingly delivers on its object detection, recognition, and scene adaptation functions
- With deep learning algorithm, it supports: AcuPick, video metadata, IVS, face detection, and people counting, etc
- Supports max. 1 TB Micro SD card; built-in Mic
- 12 VDC/PoE power supply; ePoE
- IP67 protection
Specifications
Images
Image Stabilizer
Yes
General
Type
IP security camera
Angle Rotation
360 °
Certifications
CE
Detect Distance Tele
130.8 m
Detect Distance Wide
57.5 m
Digital Watermark
Yes
Human And Vehicle Targets Classification
Yes
Identify Distance Tele
13.1 m
Identify Distance Wide
5.8 m
Mirror
Yes
Observe Distance Tele
52.3 m
Observe Distance Wide
23 m
Recognize Distance Tele
26.2 m
Recognize Distance Wide
11.5 m
Streaming Method
Multicast
Memory
RAM
2048 MB
Storage
Compatible Card Types
MicroSD (TransFlash)
Built-in HDD
No
Max Memory Card
1000 GB
ROM Capacity
4096 MB
Network Access Storage Nas
Yes
Connectivity
Bluetooth
No
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
Yes
Wi-Fi
No
Card Reader
Yes
LAN Ports
1
DC-In Jack
Yes
LAN Speed
Fast Ethernet
Audio
Audio Formats
G.711 µ-law/G.711 A-law/G.723/G.726/PCM
Built-in Microphone
Yes
Power
Max Power Draw
14.8 W
Typical Power Draw
Typical board power (W) is the power draw under normal gaming load. Use it to estimate electricity cost and to size cooling. Peak transient spikes can be 20-30 percent higher, which is why PSU recommendations leave a buffer.
3.5 W
Power Source
DC, PoE
DC Output Voltage
12
Camera
Shutter Speed
Exposure time range. Faster shutter reduces motion blur in bright scenes.
1/3 - 1/100000 s
Frame Rate
Frames per second (fps). 30 fps = standard; 60 fps = smoother video.
30 fps
LED Type
IR
Min. Illumination
Minimum lux for clear image. Lower = better in dark environments. 0 lux = IR only.
0.0004 lx
Sensor Size
Larger sensor = better low-light performance. Full-frame > APS-C > MFT > 1/2.8".
1/1.8
Progressive Scan
Captures full frames vs interlaced (alternating lines). Reduces motion blur.
Yes
Sensor Type
CMOS: most cameras today. CCD: older, higher quality. BSI: better low-light.
CMOS
Resolution (MP)
Higher megapixels = more detail. 12MP+ is sufficient for most uses.
4 MP
Video Recording
Yes
Wide Dynamic Range (WDR)
Captures detail in both bright and dark areas simultaneously.
Yes
Backlight Compensation (BLC)
BLC prevents silhouetting when subject is backlit.
Yes
Bitrate Control
VBR: variable bitrate (better quality). CBR: constant (predictable bandwidth).
Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Min Focusing Distance
0.13 m
Dynamic Range
140 dB
Focal Length
2.7 - 12 mm
Highlight Compensation (HLC)
HLC reduces overexposed bright spots (headlights, floodlights) in the frame.
Yes
Field of View (Diagonal)
137 - 54 °
Field of View (Horizontal)
115 - 47 °
Field of View (Vertical)
62 - 27 °
Max Aperture (f-number)
Lower f-number = wider aperture = better low-light performance.
1.8
Night Vision
Yes
IR Night Vision Range
50 m
Noise Reduction
Yes
Noise Reduction Technology
3D DNR: better quality, reduces temporal noise. 2D DNR: lower latency.
3D noise reduction
IR LEDs
2
Signal-to-Noise Ratio
Higher SNR (dB) = cleaner image with less grain/noise. 50+ dB is good.
56 dB
White Balance
Corrects colour cast under different lighting. ATW = auto-tracking white balance.
Auto/Manual/Natural/Outdoor/Regional custom/Street lamp
PTZ Pan Control
Yes
PTZ Tilt Control
Yes
Pan Range
0 - 360 °
Video Streaming
Yes
Networking
Networking Standards
IEEE 802.1x/IEEE 802.3at
QoS Support
Quality of Service prioritises camera stream traffic on the network.
Yes
Network Protocols
IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P
Max Concurrent Users
20 user(s)
Features
HTTPS Encryption
Yes
Number of Cameras
1
Video Compression
H.265 (HEVC): half the storage of H.264 at same quality. MJPEG: high CPU usage.
H.264/H.264B/H.264H/H.265/M-JPEG
Motion Detection
Yes
AI / Smart Features
AI analytics: face recognition, line crossing, intrusion detection, vehicle detection.
Intrusion/People counting/Tripwire
ROI Encoding
Region of Interest . allocates more bitrate to key areas for sharper detail there.
Yes
Gain Control Type
Auto/Manual
People Counting Function
Yes
Smart Ir
Yes
Compatibility
Mobile OS Support
Android/iOS
Physical
Weight
0.700000
Form Factor
Turret
IP Rating
IP66: dust-tight + jets. IP67: waterproof 1m/30min. IP68: continuous immersion.
IP67
Mounting Type
Ceiling/Wall/Pole
Installation Type
Ceiling: dome cameras. Wall: bullet/box cameras. Pole: outdoor cameras.
Outdoor
Colour
Black
Height
108.3 mm
Tilt Adjustment
0 - 78 °
Additional
Warranty
36
SKU
1459793
EAN
6937552412132
