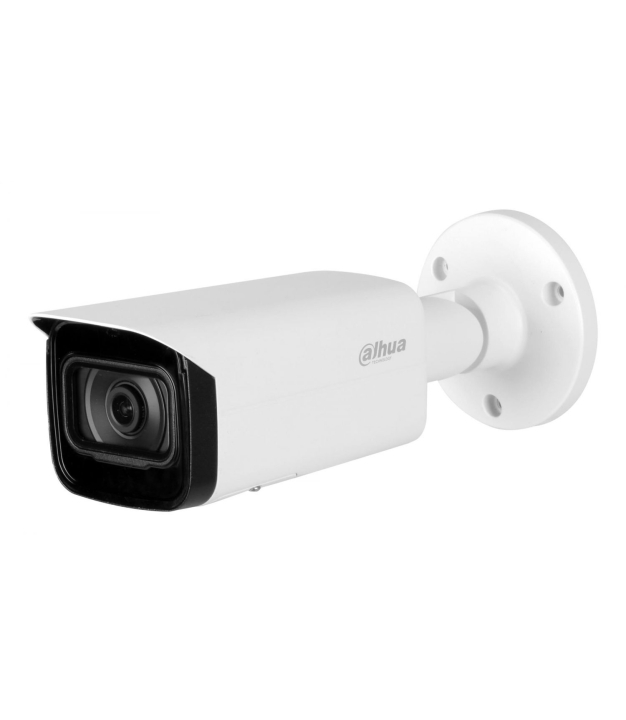

Dahua Technology WizMind IPC-HFW5442T-ASE-0280B-S3 security camera Bullet IP security camera Indoor 2688 x 1520 pixels Pole clamp
MPN:
IPC-HFW5442T-ASE-0280B-S3
Brand:
DAHUA
Connection Type:
Wired
Night Vision:
Yes
Resolution:
2688 x 1520 pixels
€447.22
/ incl. VAT
€369.60
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
10 in Stock
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
- 4-MP 1/1.8 CMOS image sensor, low luminance, and high definition image
- Outputs max. 4 MP (2688×1520) @25/30fps
- Built-in IR LED, and the max. illumination distance is 80 m
- ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD card, built-in MIC
- 12 VDC/PoE power supply; ePoE
- IP67 and IK10 protection
- SMD 3.0
Specifications
General
Model
IPC-HFW5442T-ASE-0280B-S3
Type
IP security camera
Angle Rotation
360 °
Certifications
CE/Federal Communications Commission (FCC)/UL
Fixed Focus
Yes
Human And Vehicle Targets Classification
Yes
Mirror
Yes
Number Privacy Masking Areas
8
Streaming Method
Multicast
Memory
RAM
1024 MB
Storage
Compatible Card Types
MicroSD (TransFlash)
Built-in HDD
No
Max Memory Card
1000 GB
ROM Capacity
4096 MB
Network Access Storage Nas
Yes
Connectivity
Bluetooth
No
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
Yes
Wi-Fi
No
Card Reader
Yes
LAN Ports
1
DC-In Jack
Yes
LAN Speed
Fast Ethernet
Audio
Audio Formats
G.711 µ-law/G.711 A-law/G.723/G.726/PCM
Built-in Microphone
Yes
Power
Max Power Draw
8.3 W
Typical Power Draw
Typical board power (W) is the power draw under normal gaming load. Use it to estimate electricity cost and to size cooling. Peak transient spikes can be 20-30 percent higher, which is why PSU recommendations leave a buffer.
4.1 W
Power Source
DC, PoE
DC Output Voltage
12
Camera
Shutter Speed
Exposure time range. Faster shutter reduces motion blur in bright scenes.
1/3 - 1/100000 s
Frame Rate
Frames per second (fps). 30 fps = standard; 60 fps = smoother video.
60 fps
LED Type
IR
Min. Illumination
Minimum lux for clear image. Lower = better in dark environments. 0 lux = IR only.
0.0004 lx
Sensor Size
Larger sensor = better low-light performance. Full-frame > APS-C > MFT > 1/2.8".
1/1.8
Progressive Scan
Captures full frames vs interlaced (alternating lines). Reduces motion blur.
Yes
Sensor Type
CMOS: most cameras today. CCD: older, higher quality. BSI: better low-light.
CMOS
Resolution (MP)
Higher megapixels = more detail. 12MP+ is sufficient for most uses.
4 MP
Video Recording
Yes
Wide Dynamic Range (WDR)
Captures detail in both bright and dark areas simultaneously.
Yes
Backlight Compensation (BLC)
BLC prevents silhouetting when subject is backlit.
Yes
Bitrate Control
VBR: variable bitrate (better quality). CBR: constant (predictable bandwidth).
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Min Focusing Distance
1.3 m
Detection Distance
61.5 m
Dynamic Range
140 dB
Highlight Compensation (HLC)
HLC reduces overexposed bright spots (headlights, floodlights) in the frame.
Yes
Identification Distance
6.2 m
Field of View (Diagonal)
139 °
Field of View (Horizontal)
112 °
Field of View (Vertical)
58 °
Max Aperture (f-number)
Lower f-number = wider aperture = better low-light performance.
1.6
Night Vision
Yes
IR Night Vision Range
80 m
Noise Reduction
Yes
Noise Reduction Technology
3D DNR: better quality, reduces temporal noise. 2D DNR: lower latency.
3D noise reduction
IR LEDs
4
Observation Distance
24.6 m
Recognition Distance
12.3 m
White Balance
Corrects colour cast under different lighting. ATW = auto-tracking white balance.
Auto/Manual/Natural/Outdoor/Regional custom/Street lamp
PTZ Pan Control
Yes
PTZ Tilt Control
Yes
Pan Range
0 - 360 °
Video Streaming
Yes
Fixed Focal Length
2.8 mm
Networking
IP Address Filtering
Yes
Networking Standards
IEEE 802.1x/IEEE 802.3af
QoS Support
Quality of Service prioritises camera stream traffic on the network.
Yes
Network Protocols
IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P
Features
Alarm Input Output
Yes
Number of Cameras
1
Video Compression
H.265 (HEVC): half the storage of H.264 at same quality. MJPEG: high CPU usage.
H.264/H.264B/H.264H/H.265/M-JPEG
Motion Detection
Yes
Alarm Input Channels
Dry-contact inputs for external sensors (PIR, door contacts, smoke detectors).
1
Alarm Output Channels
Relay outputs to trigger external devices (sirens, lights, door locks).
1
ROI Encoding
Region of Interest . allocates more bitrate to key areas for sharper detail there.
Yes
Gain Control Type
Auto
Compatibility
Mobile OS Support
Android/iOS
Physical
Weight
0.820000
Form Factor
Bullet
IP Rating
IP66: dust-tight + jets. IP67: waterproof 1m/30min. IP68: continuous immersion.
IP67
IK Rating
Impact protection rating IK00–IK10. IK10 = withstands 20J impact.
IK10
Length
244.1 mm
Mounting Type
Pole clamp
Installation Type
Ceiling: dome cameras. Wall: bullet/box cameras. Pole: outdoor cameras.
Indoor
Colour
White
Height
75.9 mm
Tilt Adjustment
0 - 90 °
Width
79 mm
Additional
Warranty
36
SKU
1398021
EAN
6923172588692
