Special offer

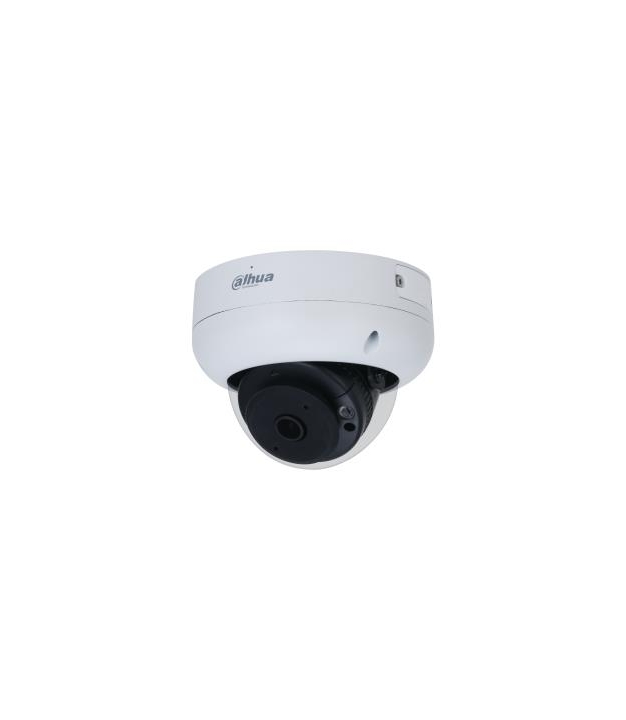

Dahua Technology WizSense DH-IPC-HDBW3441R-AS-P security camera Dome IP security camera Indoor & outdoor 2880 x 1620 pixels Ceiling/wall
MPN:
IPC-HDBW3441R-AS-P-0210B
Brand:
DAHUA
Connection Type:
Wired
Night Vision:
Yes
Resolution:
2880 x 1620 pixels
€442.86
/ incl. VAT
€366.00
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
2 in Stock
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
Series Overview
With advanced deep learning algorithm, Dahua WizSense 3 Series
network camera supports intelligent functions, such as perimeter
protection and smart motion detection. With starlight technology, this
series camera provides a better image effect in the condition of low
illuminance.
Launched by Dahua Technology, WizSense is a series of AI products and
solutions that adopt independent AI chip and deep learning algorithm.
It focuses on human and vehicle with high accuracy, enabling users to
fast act on defined targets. Based on Dahua's advanced technologies,
WizSense provides intelligent, simple and inclusive products and
solutions.
Functions
EPTZ
With advanced target detection and tracking algorithms, Dahua EPTZ
technology can simultaneously zoom in and track multiple humans and
vehicles that trigger alarms. It provides rich details and a panoramic
view at the same time.
SMD 3.0
With intelligent algorithm, Dahua Smart Motion Detection technology
can categorize the targets that trigger motion detection and filter the
motion detection alarm triggered by non-concerned targets to realize
effective and accurate alarm.
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart
encoding technology realizes the higher encoding efficiency than H.265
and H.264, provides high-quality video, and reduces the cost of storage
and transmission.
Perimeter Protection
With deep learning algorithm, Dahua Perimeter Protection technology
can recognize human and vehicle accurately. In restricted area (such
as pedestrian area and vehicle area), the false alarms of intelligent
detection based on target type (such as tripwire, intrusion) are largely
reduced.
With advanced deep learning algorithm, Dahua WizSense 3 Series
network camera supports intelligent functions, such as perimeter
protection and smart motion detection. With starlight technology, this
series camera provides a better image effect in the condition of low
illuminance.
Launched by Dahua Technology, WizSense is a series of AI products and
solutions that adopt independent AI chip and deep learning algorithm.
It focuses on human and vehicle with high accuracy, enabling users to
fast act on defined targets. Based on Dahua's advanced technologies,
WizSense provides intelligent, simple and inclusive products and
solutions.
Functions
EPTZ
With advanced target detection and tracking algorithms, Dahua EPTZ
technology can simultaneously zoom in and track multiple humans and
vehicles that trigger alarms. It provides rich details and a panoramic
view at the same time.
SMD 3.0
With intelligent algorithm, Dahua Smart Motion Detection technology
can categorize the targets that trigger motion detection and filter the
motion detection alarm triggered by non-concerned targets to realize
effective and accurate alarm.
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart
encoding technology realizes the higher encoding efficiency than H.265
and H.264, provides high-quality video, and reduces the cost of storage
and transmission.
Perimeter Protection
With deep learning algorithm, Dahua Perimeter Protection technology
can recognize human and vehicle accurately. In restricted area (such
as pedestrian area and vehicle area), the false alarms of intelligent
detection based on target type (such as tripwire, intrusion) are largely
reduced.
Specifications
General
Model
IPC-HDBW3441R-AS-P-0210B
Type
IP security camera
Angle Rotation
355 °
Behavior Analysis
Intrusion detection, Line crossing detection
Fog Proof
Yes
Streaming Method
Multicast/Unicast
Web Based Management
Yes
Memory
RAM
RAM (Random Access Memory) is the system's working memory where active applications and the operating system live. More RAM means smoother multitasking and bigger files can be edited without swapping to disk. 16 GB is the comfortable minimum for modern sy
512 MB
Storage
Compatible Card Types
MicroSD (TransFlash)
Built-in HDD
No
Max Memory Card
256 GB
ROM Capacity
128 MB
Display
LED Indicators
Yes
Connectivity
Bluetooth
No
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
Yes
Wi-Fi
No
Card Reader
Yes
LAN Ports
1
Power
Max Power Draw
6.4 W
Typical Power Draw
Typical board power (W) is the power draw under normal gaming load. Use it to estimate electricity cost and to size cooling. Peak transient spikes can be 20-30 percent higher, which is why PSU recommendations leave a buffer.
3.2 W
Power Source
DC, PoE
DC Output Voltage
12
Power Consumption
7.7 W
Camera
Shutter Speed
Exposure time range. Faster shutter reduces motion blur in bright scenes.
1/3 s-1/100, 000 s
Min. Illumination
Minimum lux for clear image. Lower = better in dark environments. 0 lux = IR only.
0.0005 lx
Sensor Size
Larger sensor = better low-light performance. Full-frame > APS-C > MFT > 1/2.8".
1/2.7
Progressive Scan
Captures full frames vs interlaced (alternating lines). Reduces motion blur.
Yes
Sensor Type
CMOS: most cameras today. CCD: older, higher quality. BSI: better low-light.
CMOS
Resolution (MP)
Higher megapixels = more detail. 12MP+ is sufficient for most uses.
4 MP
Wide Dynamic Range (WDR)
Captures detail in both bright and dark areas simultaneously.
Yes
Adjustable Shutter Speed
Auto/Manual
Backlight Compensation (BLC)
BLC prevents silhouetting when subject is backlit.
Yes
Bitrate Control
VBR: variable bitrate (better quality). CBR: constant (predictable bandwidth).
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Min Focusing Distance
0.6 m
Dynamic Range
120 dB
Highlight Compensation (HLC)
HLC reduces overexposed bright spots (headlights, floodlights) in the frame.
Yes
Field of View (Diagonal)
175 °
Field of View (Horizontal)
170 °
Field of View (Vertical)
75 °
Max Aperture (f-number)
Lower f-number = wider aperture = better low-light performance.
2
Night Vision
Yes
Noise Reduction
Yes
Noise Reduction Technology
3D DNR: better quality, reduces temporal noise. 2D DNR: lower latency.
3D noise reduction
Effective Pixels (H×V)
2880 x 1620 pixels
Video Formats
H.264+/H.265+
White Balance
Corrects colour cast under different lighting. ATW = auto-tracking white balance.
Auto/Custom modes/Manual/Natural/Outdoor/Street lamp
PTZ Tilt Control
No
Pan Range
0 - 355 °
Fixed Focal Length
2.1 mm
Camera Shutter Type
Electronic
Networking
Networking Standards
IEEE 802.1x
Network Protocols
IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Max Concurrent Users
20 user(s)
Features
Alarm Input Output
Yes
Number of Cameras
1
Video Compression
H.265 (HEVC): half the storage of H.264 at same quality. MJPEG: high CPU usage.
H.264/H.264B/H.265/M-JPEG
ROI Encoding
Region of Interest . allocates more bitrate to key areas for sharper detail there.
Yes
Gain Control Type
Auto/Manual
Compatibility
Mobile OS Support
Android/iOS
Web Browser Access
Yes
Physical
Weight
0.500000
Form Factor
Dome
IP Rating
IP66: dust-tight + jets. IP67: waterproof 1m/30min. IP68: continuous immersion.
IP67
IK Rating
Impact protection rating IK00–IK10. IK10 = withstands 20J impact.
IK10
Mounting Type
Ceiling/wall
Operating Humidity
0 - 95 %
Installation Type
Ceiling: dome cameras. Wall: bullet/box cameras. Pole: outdoor cameras.
Indoor & outdoor
Colour
Assorted colours
Weatherproof
Yes
Height
94 mm
Tilt Adjustment
0 - 80 °
Additional
Warranty
36
SKU
1389498
EAN
6923172534286
