Special offer

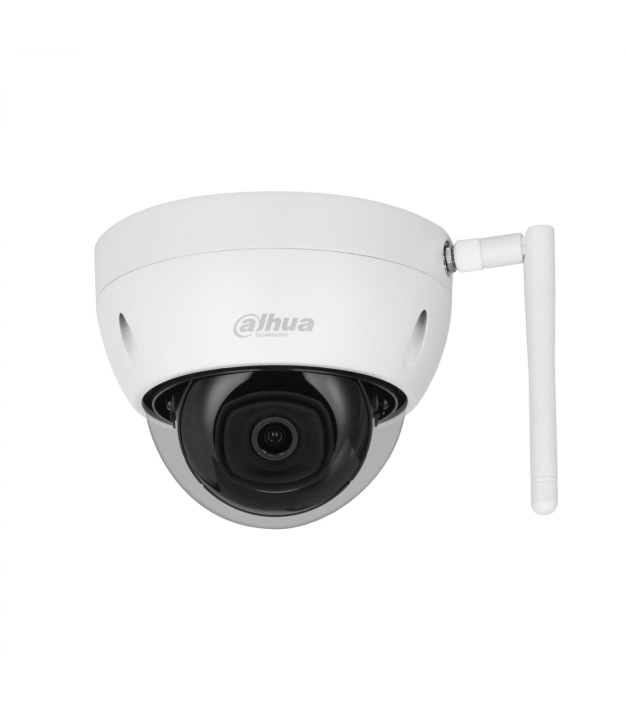

Dahua Technology Mobile Camera DH-IPC-HDBW1430DE-SW security camera Dome IP security camera Indoor & outdoor 2560 x 1440 pixels Ceiling
MPN:
IPC-HDBW1430DE-SW-0280B
Brand:
DAHUA
Connection Type:
Wired & Wireless
Night Vision:
Yes
Resolution:
2560 x 1440 pixels
€171.34
/ incl. VAT
€141.60
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
9 in Stock
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
- 4-MP 1/3 CMOS image sensor, low luminance, and high definition image
- Outputs max. 4 MP (2560 × 1440)@20 fps, and max. supports 3 MP (2304 × 1296)@25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in IR LED
- SMART H.264 +/H.265+, flexible coding, applicable to various band width and storage environments
- DWDR, 3D NR, BLC, digital watermarking, applicable to various monitoring scenes
- Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, SMD (human)
- Supports single antenna 2.4G Wi-Fi that covers a range of up to 80 m in an open area
- Supports max. 256 G Micro SD card
- 12 VDC power supply
- IP67, IK10 protection
Specifications
General
Type
IP security camera
Angle Rotation
355 °
Digital Wide Dynamic Range
Yes
Digital Wide Dynamic Range Dwdr
Yes
Mirror
Yes
Video Intelligence Analytic
Yes
Memory
RAM
RAM (Random Access Memory) is the system's working memory where active applications and the operating system live. More RAM means smoother multitasking and bigger files can be edited without swapping to disk. 16 GB is the comfortable minimum for modern sy
64 MB
Storage
Compatible Card Types
MicroSD (TransFlash)
Built-in HDD
No
Max Memory Card
256 GB
ROM Capacity
16 MB
Connectivity
Bluetooth
No
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
Yes
Wi-Fi
Yes
Card Reader
Yes
LAN Ports
1
Wi-Fi
Wi-Fi generation sets peak speed and how well the device coexists with neighbours. Wi-Fi 6 (802.11ax) is the modern baseline; Wi-Fi 6E adds the cleaner 6 GHz band; Wi-Fi 7 (Be) brings multi-link operation and even higher peaks. The router and the client m
802.11b/802.11g/Wi-Fi 4 (802.11n)
LAN Speed
Fast Ethernet
Audio
Audio System
1-way
Bit Depth / Bitrate
3 Kbps - 20480 Kbps
Audio Codecs
G.711a; G.711Mu; PCM; G.726; G.723
Audio System Full Duplex
Yes
Power
Power Source
DC, PoE
DC Output Voltage
12
Camera
Shutter Speed
Exposure time range. Faster shutter reduces motion blur in bright scenes.
1/3 - 1/100000 s
Frame Rate
Frames per second (fps). 30 fps = standard; 60 fps = smoother video.
30 fps
LED Type
IR
Sensor Size
Larger sensor = better low-light performance. Full-frame > APS-C > MFT > 1/2.8".
1/3
Progressive Scan
Captures full frames vs interlaced (alternating lines). Reduces motion blur.
Yes
Sensor Type
CMOS: most cameras today. CCD: older, higher quality. BSI: better low-light.
CMOS
Video Resolutions
1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440
Supported Video Modes
1080p/720p
Resolution (MP)
Higher megapixels = more detail. 12MP+ is sufficient for most uses.
4 MP
Video Recording
Yes
Wide Dynamic Range (WDR)
Captures detail in both bright and dark areas simultaneously.
Yes
Adjustable Shutter Speed
Auto/Manual
Backlight Compensation (BLC)
BLC prevents silhouetting when subject is backlit.
Yes
Bitrate Control
VBR: variable bitrate (better quality). CBR: constant (predictable bandwidth).
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Detection Distance
68 m
Highlight Compensation (HLC)
HLC reduces overexposed bright spots (headlights, floodlights) in the frame.
Yes
Identification Distance
6.8 m
Field of View (Horizontal)
90 °
Max Aperture (f-number)
Lower f-number = wider aperture = better low-light performance.
2
Night Vision
Yes
IR Night Vision Range
30 m
Noise Reduction
Yes
Noise Reduction Technology
3D DNR: better quality, reduces temporal noise. 2D DNR: lower latency.
3D noise reduction
IR LEDs
3
Observation Distance
27.2 m
Recognition Distance
13.6 m
Video Formats
H.264/H.264B/H.265
Pan Range
0 - 355 °
Video Streaming
Yes
Fixed Focal Length
2.8 mm
Camera Shutter Type
Electronic
Networking
Antenna Type
External
Antennas Quantity
1
Max Concurrent Users
6 user(s)
Features
Auto Focus
Yes
Number of Cameras
1
Video Compression
H.265 (HEVC): half the storage of H.264 at same quality. MJPEG: high CPU usage.
H.264+/H.264H/H.265+
AI / Smart Features
AI analytics: face recognition, line crossing, intrusion detection, vehicle detection.
Intrusion
Detection Distance
80 m
Remote Viewing
Yes
Smart Ir
Yes
Compatibility
Mobile OS Support
Android/iOS
Web Browser Access
Yes
Physical
Weight
0.414000
Form Factor
Dome
IP Rating
IP66: dust-tight + jets. IP67: waterproof 1m/30min. IP68: continuous immersion.
IP67
IK Rating
Impact protection rating IK00–IK10. IK10 = withstands 20J impact.
IK10
Mounting Type
Ceiling
Operating Humidity
0 - 95 %
Installation Type
Ceiling: dome cameras. Wall: bullet/box cameras. Pole: outdoor cameras.
Indoor & outdoor
Colour
White
Height
88.7 mm
Tilt Adjustment
0 - 75 °
Additional
Certifications
CE-LVD: EN62368-1;, CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;, CE-RED: Radio Equipment Directive 2014/53/EU;, FCC: 47 CFR FCC Part 15, Subpart B;, FCC ID: FCC PART 15C
Warranty
36
SKU
1372745
EAN
6923172539984
