Special offer

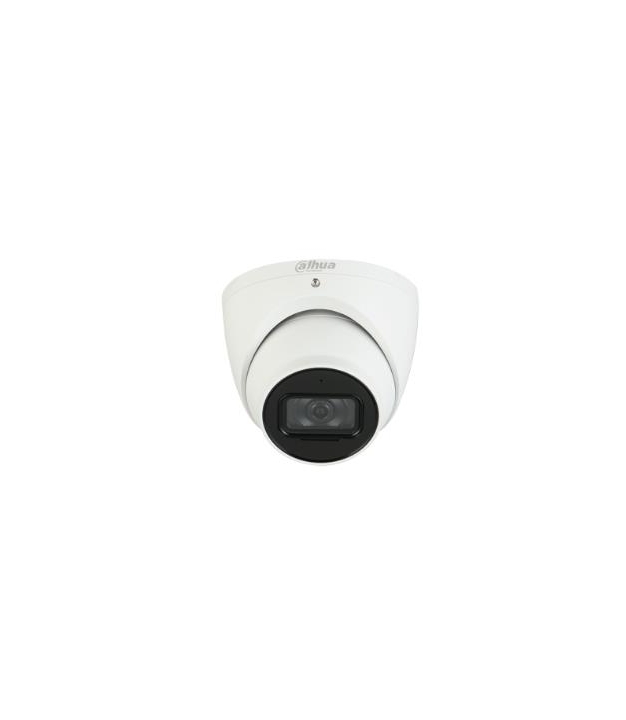

NET CAMERA 4MP IR EYEBALL/HDW5442TM-ASE-0280B-S3 DAHUA
MPN:
HDW5442TM-ASE-0280B-S3
Brand:
DAHUA
Connection Type:
Wired
Night Vision:
Yes
Resolution:
2688 x 1520 pixels
€381.88
/ incl. VAT
€315.60
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
28 in Stock
Short description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
Pro AI series contains Face Detection, Perimeter Protection and People
Counting functions.Powered by deep-learning Artificial Intelligence algo-
rithms, significantly improved accuracy. Meanwhile, the series features
starlight and smart IR technology. This series fully protected from dust
and water, certified to IP67 standard.
Face Detection
Face Detection is a software application that automatically captures
faces from within a digital image or a video frame from a video source.
Dahua cameras use advanced deep learning algorithms and are trained
by a large number of face data sources, enabling the camera to locate
faces quickly and accurately from the video source and capture facial
images.
Perimeter Protection
Dahua’s Perimeter Protection functions significantly improved accu-
racy. Perimeter Protection reduces false alarms and decreases pixel
count requirements for object detection. Perimeter Protection features
custom tripwires based on object type for automation in limited access
areas such as pedestrian or vehicle-only zones. This combination of
advanced AI analytics and real-time alerts to a desktop or to a mobile
client reduces system requirements and resources resulting in greater
surveillance system efficiency.
People Counting
People Counting function uses advanced image processing technology
to capture depth information from within images. The camera pairs this
information with deep learning algorithms to analyze and detect human
bodies and track target objects in real time. The camera provides statis-
tics for separate individuals’ entrance and exit with up to 95% counting
accuracy.
Protection(IP67, wide voltage)
The camera allows for ±30% input voltage tolerance, suitable for the
most unstable conditions for outdoor applications. Its 6KV lightning rat-
ing provides effective protection for both the camera and its structure
against lightning. Subjected and certified to rigorous dust and immer-
sion tests (IP67) , the camera is the choice for installation in even the
most unforgiving environmen
- · 1/1.8” 4Megapixel progressive scan CMOS
- · H.265 & H.264 triple-stream encoding
- · 25/30 fps@2688 × 1520, 50/60 fps@1080P (1920 × 1080)
- · WDR (140 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC
- · Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS
- · 2.8 mm fixed lens (3.6 mm, 6.0 mm optional)
- · Built-in MIC
- · Max. IR LEDs Length 50 m
- · Micro SD memory, IP67
Specifications
General
Model
IPC-HDW5442TM-ASE-0280B-S3
Type
IP security camera
Angle Rotation
360 °
Mirror
Yes
Streaming Method
Multicast/Unicast
Memory
RAM
RAM (Random Access Memory) is the system's working memory where active applications and the operating system live. More RAM means smoother multitasking and bigger files can be edited without swapping to disk. 16 GB is the comfortable minimum for modern sy
512 MB
Storage
Compatible Card Types
MicroSD (TransFlash)
Max Memory Card
256 GB
ROM Capacity
128 MB
Connectivity
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
Yes
LAN Ports
1
LAN Speed
Fast Ethernet
Audio
Bit Depth / Bitrate
32 Kbps-8192 Kbps
Built-in Microphone
Yes
Power
Typical Power Draw
Typical board power (W) is the power draw under normal gaming load. Use it to estimate electricity cost and to size cooling. Peak transient spikes can be 20-30 percent higher, which is why PSU recommendations leave a buffer.
7.2 W
Power Source
DC, PoE
DC Output Voltage
12
Software
Management Software
Smart PSS, DSS, DMSS
Camera
Shutter Speed
Exposure time range. Faster shutter reduces motion blur in bright scenes.
1/3 -1/100000 s
Flip / Mirror Image
Flip: vertical. Mirror: horizontal. For cameras mounted upside-down.
Yes
Frame Rate
Frames per second (fps). 30 fps = standard; 60 fps = smoother video.
30 fps
LED Type
IR
Min. Illumination
Minimum lux for clear image. Lower = better in dark environments. 0 lux = IR only.
0.002 lx
Sensor Size
Larger sensor = better low-light performance. Full-frame > APS-C > MFT > 1/2.8".
1/1.8
Progressive Scan
Captures full frames vs interlaced (alternating lines). Reduces motion blur.
Yes
Sensor Type
CMOS: most cameras today. CCD: older, higher quality. BSI: better low-light.
CMOS
Video Resolutions
1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440/2688 x 1520/352 x 240/352 x 288/640 x 480 (VGA)/720 x 480/720 x 576
Resolution (MP)
Higher megapixels = more detail. 12MP+ is sufficient for most uses.
4 MP
Wide Dynamic Range (WDR)
Captures detail in both bright and dark areas simultaneously.
Yes
Adjustable Shutter Speed
Auto/Manual
Backlight Compensation (BLC)
BLC prevents silhouetting when subject is backlit.
Yes
Bitrate Control
VBR: variable bitrate (better quality). CBR: constant (predictable bandwidth).
Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Detection Distance
58 m
Dynamic Range
140 dB
Focal Length
2.8 mm
Highlight Compensation (HLC)
HLC reduces overexposed bright spots (headlights, floodlights) in the frame.
Yes
Identification Distance
6 m
Field of View (Horizontal)
113 °
Field of View (Vertical)
60 °
Max Aperture (f-number)
Lower f-number = wider aperture = better low-light performance.
1.6
Night Vision
Yes
IR Night Vision Range
50 m
Noise Reduction
Yes
Noise Reduction Technology
3D DNR: better quality, reduces temporal noise. 2D DNR: lower latency.
3D noise reduction
Effective Pixels (H×V)
2688 x 1520 pixels
IR LEDs
2
Observation Distance
23 m
Recognition Distance
12 m
White Balance
Corrects colour cast under different lighting. ATW = auto-tracking white balance.
Auto/Lamp/Manual/Natural/Outdoor
Pan Range
0 - 360 °
Video Streaming
Yes
Camera Shutter Type
Electronic
Networking
Networking Standards
IEEE 802.3af
QoS Support
Quality of Service prioritises camera stream traffic on the network.
Yes
Network Protocols
IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP
Max Concurrent Users
20 user(s)
Features
Analog Signal Formats
PAL
Number of Cameras
1
Privacy Masking
Blocks specific zones from being recorded to protect privacy.
Yes
Video Compression
H.265 (HEVC): half the storage of H.264 at same quality. MJPEG: high CPU usage.
H.264/H.264+/H.265/H.265+
Motion Detection
Yes
AI / Smart Features
AI analytics: face recognition, line crossing, intrusion detection, vehicle detection.
Face detection/Heat map/Intrusion/People counting/Tripwire
ROI Encoding
Region of Interest . allocates more bitrate to key areas for sharper detail there.
Yes
Gain Control Type
Auto/Manual
Smart Ir
Yes
Voice Codecs
AAC/G.711a/G.711Mu/G.723/G.726
Compatibility
Mobile OS Support
Android/iOS
Web Browser Access
Yes
Physical
Weight
0.550000
Form Factor
Dome
IP Rating
IP66: dust-tight + jets. IP67: waterproof 1m/30min. IP68: continuous immersion.
IP67
Mounting Type
Ceiling
Operating Humidity
0 - 95 %
Installation Type
Ceiling: dome cameras. Wall: bullet/box cameras. Pole: outdoor cameras.
Indoor & outdoor
Colour
White
Height
99.2 mm
Tilt Adjustment
0 - 78 °
Additional
Certifications
CE-LVD: EN60950-1, CE-EMC: Electromagnetic Compatibility Directive, 2014/30/EU, FCC: 47 CFR FCC Part 15, Subpart B, UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07CE-LVD: EN60950-1, CE-EMC: Electromagnetic Compatibility Directive, 2014/30/EU, FCC: 47 CFR FCC Part
Warranty
36
SKU
1396729
EAN
6923172588166
