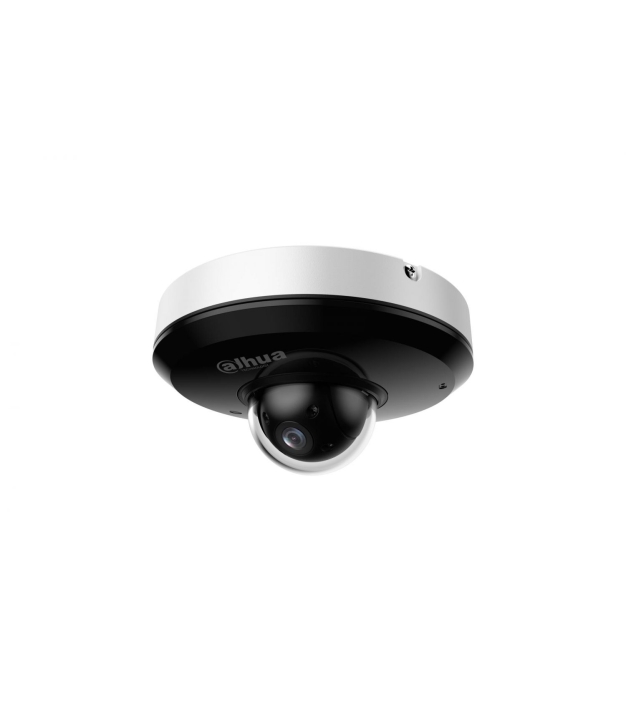

Dahua Technology SD1A404DB-GNY Dome IP security camera Indoor & outdoor 2560 x 1440 pixels Ceiling/wall
MPN:
SD1A404DB-GNY
Brand:
DAHUA
Connection Type:
Wired
Resolution:
2560 x 1440 pixels
€371.71
/ incl. VAT
€307.20
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
1 in Stock
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
- 1/2.8 4Megapixel CMOS
- 4x optical zoom
- Starlight technology
- Max. 25/30 fps@4MP
- IR distance up to 20 m
- Perimeter protection
- Face detection
- SMD 3.0
- Built-in Mic
- IP66; IK08
Specifications
Images
Image Stabilizer
Yes
General
Model
SD1A404DB-GNY
Type
IP security camera
Detect Distance Wide
240 m
Digital Zoom
16 x
Focus
Motorized/Manual
Identify Distance Wide
24 m
Observe Distance Wide
94.8 m
Pan Manual Speed
0.1 - 70 °/sec
Pan Preset Speed
0.1 °/sec
Preset Points
Yes
Ptz Protocols
DH-SD
Recognize Distance Wide
48 m
Web Based Management
Yes
Infra Red Leds Life
3 h
Memory
RAM
512 MB
Storage
Compatible Card Types
MicroSD (TransFlash)
Built-in HDD
No
Max Memory Card
512 GB
ROM Capacity
256 MB
Display
LED Indicators
Yes
Connectivity
Bluetooth
No
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
Yes
Wi-Fi
No
Card Reader
Yes
LAN Ports
1
Audio
Audio Input Channels
1.0 channels
Audio Channels
2.0 = stereo. 5.1 = surround with subwoofer. 7.1 = full surround for gaming/cinema.
1.0 channels
Audio Detection
Yes
Power
Max Power Draw
13 W
Typical Power Draw
Typical board power (W) is the power draw under normal gaming load. Use it to estimate electricity cost and to size cooling. Peak transient spikes can be 20-30 percent higher, which is why PSU recommendations leave a buffer.
4 W
Power Source
DC, PoE
Software
Management Software
DMSS; DSS Pro
Camera
Shutter Speed
Exposure time range. Faster shutter reduces motion blur in bright scenes.
1 - 1/30000 s
Frame Rate
Frames per second (fps). 30 fps = standard; 60 fps = smoother video.
30 fps
LED Type
IR
Min. Illumination
Minimum lux for clear image. Lower = better in dark environments. 0 lux = IR only.
0.0005 lx
Sensor Size
Larger sensor = better low-light performance. Full-frame > APS-C > MFT > 1/2.8".
1/28
Progressive Scan
Captures full frames vs interlaced (alternating lines). Reduces motion blur.
Yes
Sensor Type
CMOS: most cameras today. CCD: older, higher quality. BSI: better low-light.
CMOS
Video Resolutions
1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576
Resolution (MP)
Higher megapixels = more detail. 12MP+ is sufficient for most uses.
4 MP
Wide Dynamic Range (WDR)
Captures detail in both bright and dark areas simultaneously.
Yes
Backlight Compensation (BLC)
BLC prevents silhouetting when subject is backlit.
Yes
Bitrate Control
VBR: variable bitrate (better quality). CBR: constant (predictable bandwidth).
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Min Focusing Distance
0.2 m
Focal Length
2.8 - 12 mm
Highlight Compensation (HLC)
HLC reduces overexposed bright spots (headlights, floodlights) in the frame.
Yes
Max Aperture (f-number)
Lower f-number = wider aperture = better low-light performance.
2.7
Night Vision
Yes
IR Night Vision Range
20 m
Noise Reduction
Yes
Noise Reduction Technology
3D DNR: better quality, reduces temporal noise. 2D DNR: lower latency.
2D noise reduction, 3D noise reduction
Signal-to-Noise Ratio
Higher SNR (dB) = cleaner image with less grain/noise. 50+ dB is good.
55 dB
White Balance
Corrects colour cast under different lighting. ATW = auto-tracking white balance.
Indoor/Manual/Natural/Outdoor/Sodium lamp/Street lamp
PTZ Pan Control
Yes
PTZ Tilt Control
Yes
Pan Range
0 - 355 °
Video Streaming
Yes
Camera Shutter Type
Electronic
Minimum Aperture Number
1.8
Optical Zoom
4 x
Networking
Network Protocols
FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP
Max Concurrent Users
20 user(s)
Features
Alarm Input Output
Yes
Auto Focus
Yes
Number of Cameras
1
PTZ Modes
Pan-Tilt-Zoom presets and auto-tracking modes.
8 Tour/Preset point
Video Compression
H.265 (HEVC): half the storage of H.264 at same quality. MJPEG: high CPU usage.
H.264/H.264+/H.264B/H.264H/H.265/H.265+/M-JPEG
Motion Detection
Yes
Alarm Input Channels
Dry-contact inputs for external sensors (PIR, door contacts, smoke detectors).
1
Alarm Output Channels
Relay outputs to trigger external devices (sirens, lights, door locks).
1
AI / Smart Features
AI analytics: face recognition, line crossing, intrusion detection, vehicle detection.
Abandoned object/Crossing line/Face detection/Missing object/Tripwire
ROI Encoding
Region of Interest . allocates more bitrate to key areas for sharper detail there.
Yes
Gain Control Type
Auto/Manual
Ptz Control
Yes
Compatibility
Mobile OS Support
Android/iOS
Physical
Weight
0.500000
Form Factor
Dome
IP Rating
IP66: dust-tight + jets. IP67: waterproof 1m/30min. IP68: continuous immersion.
IP66
IK Rating
Impact protection rating IK00–IK10. IK10 = withstands 20J impact.
IK08
Mounting Type
Ceiling/wall
Operating Humidity
0 - 95 %
Installation Type
Ceiling: dome cameras. Wall: bullet/box cameras. Pole: outdoor cameras.
Indoor & outdoor
Colour
Black, White
Height
65.7 mm
Tilt Adjustment
5 - 90 °
Tilt Manual Speed
0.1 - 30 °/sec
Tilt Preset Speed
0.1 °/sec
Additional
Certifications
CE-EMC: EN 55032; EN 61000-3-3; EN 61000-3-2; EN 50130-4; EN 55035, CE-LVD: EN 62368-1, FCC: 47 CFR FCC Part15, Subpart B, NSI C63.4
Warranty
36
SKU
1425268
EAN
6923172590367
