Special offer
NET CAMERA 5MP BULLET/IPC-HFW5541E-ZHE-27135S3 DAHUA
MPN:
IPC-HFW5541E-ZHE-27135-S3
Brand:
DAHUA
Connection Type:
Wired
€679.54
/ incl. VAT
€561.60
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
14 in Stock
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description

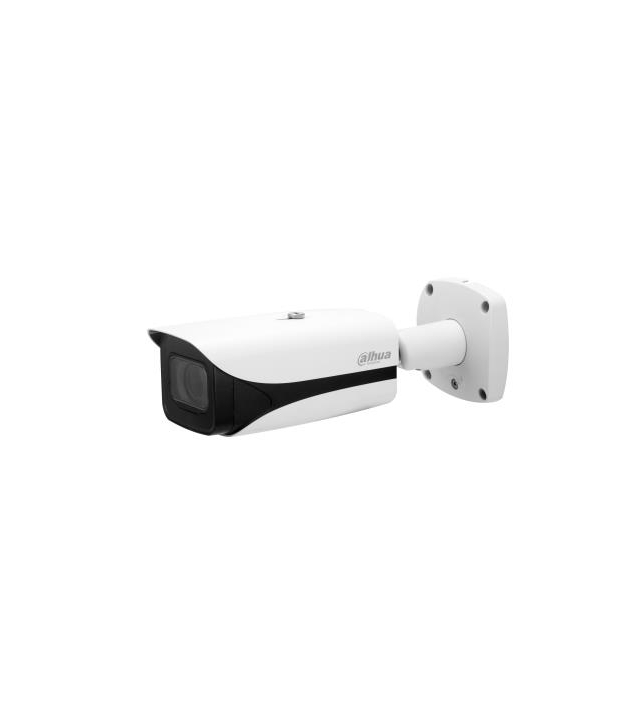

5MP IR Vari-focal Bullet WizMind Network Camera
> 5-MP 1/2.7 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 5MP (2960×1668) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 60 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD card, built-in MIC.
> 12 VDC/PoE power supply; ePoE.
> IP67 and IK10 protection, heater.
> SMD 3.0.
> Focal Length: 2.7 mm–13.5 mm
> Field of View: 114°–32°
Specifications
General
Model
IPC-HFW5541E-ZHE-27135S3
Storage
Compatible Card Types
MicroSD (TransFlash)
Max Memory Card
1000 GB
Display
Video Resolutions
320 x 240 pixels
Connectivity
LAN Ports
1
Audio
Built-in Microphone
Yes
Audio Input
1
Audio Output
1
Power
Max Power Draw
10.4 W
Typical Power Draw
Typical board power (W) is the power draw under normal gaming load. Use it to estimate electricity cost and to size cooling. Peak transient spikes can be 20-30 percent higher, which is why PSU recommendations leave a buffer.
3.6 W
Power Requirements
12 VDC/PoE (802.3af)/ePoE
Camera
Shutter Speed
Exposure time range. Faster shutter reduces motion blur in bright scenes.
1/3 s–1/100, 000 s s
LED Type
IR
Sensor Size
Larger sensor = better low-light performance. Full-frame > APS-C > MFT > 1/2.8".
1/2.7
Sensor Type
CMOS: most cameras today. CCD: older, higher quality. BSI: better low-light.
CMOS
Resolution (MP)
Higher megapixels = more detail. 12MP+ is sufficient for most uses.
5 MP
Adjustable Shutter Speed
Auto/Manual
Focal Length
2.7 mm–13.5 mm mm
Effective Pixels (H×V)
2960 (H) × 1668 (V) pixels
Lens Mount Interface
M14
Lens Type
Varifocal
Features
Alarm Input Channels
Dry-contact inputs for external sensors (PIR, door contacts, smoke detectors).
1
Alarm Output Channels
Relay outputs to trigger external devices (sirens, lights, door locks).
1
Physical
Weight
1.120000
Form Factor
Bullet
Colour
White
Height
95 mm
Depth
95 mm
Width
273.2 mm
Additional
Warranty
36
SKU
1453109
EAN
6923172587763
