Special offer
NET CAMERA 5MP EYEBALL/HDW5559TM-ASE-IL-0360B-B DAHUA
MPN:
HDW5559TM-ASE-IL-0360B-B
Brand:
DAHUA
Connection Type:
Wired
Resolution:
2960 × 1668 pixels
€410.92
/ incl. VAT
€339.60
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
5 in Stock
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description

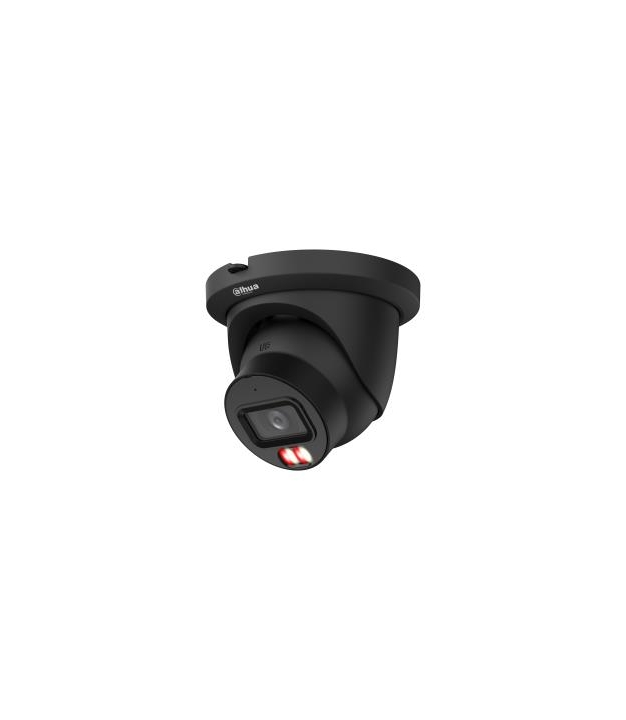

5MP Smart Dual Light Fixed-focal Eyeball WizMind Network Camera
>5-MP 1/2.7 CMOS image sensor, low luminance, and high definition image.
>Outputs max. 5 MP (2960 × 1668) @25/30 fps.
>Built-in multi-core light, the max. IR distance is 50 m and the max. warm light distance is 50 m.
>ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
>Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
>Powered by the Xinghan Large-Scale AI Models-Vision, the camera outstandingly delivers on its object detection, recognition, and scene adaptation functions.
>With deep learning algorithm, it supports: AcuPick, video metadata, IVS, face detection, and people counting, etc.
>Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD card; built-in Mic
>12 VDC/PoE power supply; ePoE
>IP67 protection.
> Focal Length: 3.6 mm
> Field of View: 90.3°
Specifications
General
Model
HDW5559TM-ASE-IL-0360B-B
Type
IP security camera
A 3d Nr
Yes
Storage
Compatible Card Types
MicroSD (TransFlash)
Max Memory Card
1000 GB
Display
Field Of View Fov Angle
90.3 °
Audio
Built-in Microphone
Yes
Audio Input
1
Audio Output
1
Power
Power Source
DC, PoE
DC Output Voltage
12
Camera
Shutter Speed
Exposure time range. Faster shutter reduces motion blur in bright scenes.
1/3 s–1/100, 000 s
LED Type
IR
Sensor Size
Larger sensor = better low-light performance. Full-frame > APS-C > MFT > 1/2.8".
1/2.7
Sensor Type
CMOS: most cameras today. CCD: older, higher quality. BSI: better low-light.
CMOS
Resolution (MP)
Higher megapixels = more detail. 12MP+ is sufficient for most uses.
5 MP
Wide Dynamic Range (WDR)
Captures detail in both bright and dark areas simultaneously.
Yes
Backlight Compensation (BLC)
BLC prevents silhouetting when subject is backlit.
Yes
Highlight Compensation (HLC)
HLC reduces overexposed bright spots (headlights, floodlights) in the frame.
Yes
Night Vision
Yes
B&W Night Vision Range
50 m
Fixed Focal Length
3.6 mm
Features
Alarm Input Output
Yes
Alarm Input Channels
Dry-contact inputs for external sensors (PIR, door contacts, smoke detectors).
1
Alarm Output Channels
Relay outputs to trigger external devices (sirens, lights, door locks).
1
Physical
Weight
0.530000
Form Factor
Eyeball
IP Rating
IP66: dust-tight + jets. IP67: waterproof 1m/30min. IP68: continuous immersion.
IP67
Installation Type
Ceiling: dome cameras. Wall: bullet/box cameras. Pole: outdoor cameras.
Outdoor
Colour
Black
Height
105.5 mm
Additional
Warranty
36
SKU
1453106
EAN
6937552410015
