Special offer

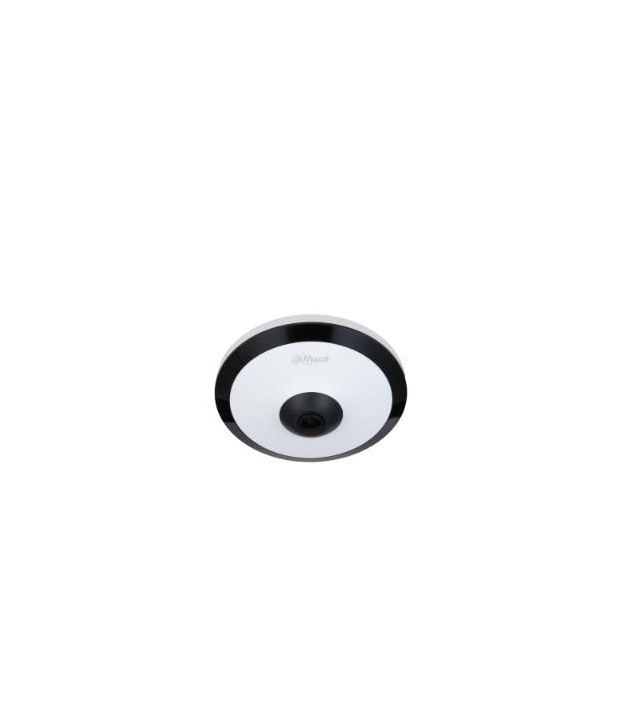

Dahua Technology WizMind IPC-EW5541P-AS IP security camera Indoor & outdoor 2592 x 1944 pixels Ceiling/wall
MPN:
DH-IPC-EW5541-AS
Brand:
DAHUA
Connection Type:
Wired
Night Vision:
Yes
Resolution:
2592 x 1944 pixels
€370.26
/ incl. VAT
€306.00
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
1 in Stock
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
Launched by Dahua Technology, Dahua WizMind is a full portfolio of
solutions composed of project-oriented products including IPC, NVR,
PTZ, XVR, Thermal and software platform which adopts industry-leading
deep learning algorithms. Focusing on customer's requirements,
WizMind provides precise, reliable and comprehensive AI solutions for
verticals.
With fisheye lens, Dahua Fisheye series camera can realize 360°
surveillance, and it is widely applied in various scenes such as airports,
shopping centers, banks and hotels.
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart
encoding technology realizes the higher encoding efficiency than H.265
and H.264, provides high-quality video, and reduces the cost of storage
and transmission.
Heat Map
Duhua heat map technology is used to display the crowd density and
people appearance probability. Display the crowd status by different
colors. Generally, the crowd status is the statistics of people quantity in
space and time dimensions.
In Area No.
With advanced stereo image technology and deep leaning algorithm,
Dahua In Area No. technology recognizes human targets accurately to
count people in area in real-time. You can set people quantity threshold,
when the number larger or smaller than the threshold, it triggers
linkage. It is applicable in the scene that has limit on people quantity.
True WDR
With advanced Wide Dynamic Range (120dB WDR) technology, Dahua
network camera provides clear details in the environment of strong
brightness contrast. The bright and dark area can get clear video even in
high brightness environment or with backlight shadow.
Cyber Security
Dahua network camera is equipped with a series of key security
technologies, such as security authentication and authorization, access
control, trusted protection, encrypted transmission, and encrypted
storage, which improve its security defense and data protection, and
prevent malicious programs from invading the device.
Protection (wide voltage)
The camera allows ±30% (for some power supplies) input voltage
tolerance (wide voltage range), and it is widely applied to outdoor
environment with instable voltage.
solutions composed of project-oriented products including IPC, NVR,
PTZ, XVR, Thermal and software platform which adopts industry-leading
deep learning algorithms. Focusing on customer's requirements,
WizMind provides precise, reliable and comprehensive AI solutions for
verticals.
With fisheye lens, Dahua Fisheye series camera can realize 360°
surveillance, and it is widely applied in various scenes such as airports,
shopping centers, banks and hotels.
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart
encoding technology realizes the higher encoding efficiency than H.265
and H.264, provides high-quality video, and reduces the cost of storage
and transmission.
Heat Map
Duhua heat map technology is used to display the crowd density and
people appearance probability. Display the crowd status by different
colors. Generally, the crowd status is the statistics of people quantity in
space and time dimensions.
In Area No.
With advanced stereo image technology and deep leaning algorithm,
Dahua In Area No. technology recognizes human targets accurately to
count people in area in real-time. You can set people quantity threshold,
when the number larger or smaller than the threshold, it triggers
linkage. It is applicable in the scene that has limit on people quantity.
True WDR
With advanced Wide Dynamic Range (120dB WDR) technology, Dahua
network camera provides clear details in the environment of strong
brightness contrast. The bright and dark area can get clear video even in
high brightness environment or with backlight shadow.
Cyber Security
Dahua network camera is equipped with a series of key security
technologies, such as security authentication and authorization, access
control, trusted protection, encrypted transmission, and encrypted
storage, which improve its security defense and data protection, and
prevent malicious programs from invading the device.
Protection (wide voltage)
The camera allows ±30% (for some power supplies) input voltage
tolerance (wide voltage range), and it is widely applied to outdoor
environment with instable voltage.
Specifications
General
Type
IP security camera
Memory
RAM
RAM (Random Access Memory) is the system's working memory where active applications and the operating system live. More RAM means smoother multitasking and bigger files can be edited without swapping to disk. 16 GB is the comfortable minimum for modern sy
512 MB
Storage
Compatible Card Types
MicroSD (TransFlash)
Max Memory Card
256 GB
ROM Capacity
128 MB
Connectivity
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
Yes
Card Reader
Yes
Audio
Audio Formats
G.726/PCM
Audio Input Channels
1.0 channels
Audio Channels
2.0 = stereo. 5.1 = surround with subwoofer. 7.1 = full surround for gaming/cinema.
1.0 channels
Bit Depth / Bitrate
H.264: 3 kbps-8192 kbps H.265: 3 kbps-8192 kbps
Built-in Microphone
Yes
Power
Max Power Draw
7.8 W
Typical Power Draw
Typical board power (W) is the power draw under normal gaming load. Use it to estimate electricity cost and to size cooling. Peak transient spikes can be 20-30 percent higher, which is why PSU recommendations leave a buffer.
3.6 W
Power Source
DC, PoE
DC Output Voltage
12
Power Consumption
4.4 W
Software
Management Software
Smart PSS, DSS, DMSS
Camera
Shutter Speed
Exposure time range. Faster shutter reduces motion blur in bright scenes.
1/3 -1/100000 s
Frame Rate
Frames per second (fps). 30 fps = standard; 60 fps = smoother video.
30 fps
LED Type
IR
Min. Illumination
Minimum lux for clear image. Lower = better in dark environments. 0 lux = IR only.
0.006 lx
Sensor Size
Larger sensor = better low-light performance. Full-frame > APS-C > MFT > 1/2.8".
1/2.7
Progressive Scan
Captures full frames vs interlaced (alternating lines). Reduces motion blur.
Yes
Sensor Type
CMOS: most cameras today. CCD: older, higher quality. BSI: better low-light.
CMOS
Video Resolutions
1280 x 720 (HD 720)/1280 x 960/1600 x 1200 (UXGA)/2048 x 1536 (QXGA)/2592 x 1944/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576
Supported Video Modes
720p
Resolution (MP)
Higher megapixels = more detail. 12MP+ is sufficient for most uses.
5 MP
Wide Dynamic Range (WDR)
Captures detail in both bright and dark areas simultaneously.
Yes
Adjustable Shutter Speed
Auto/Manual
Backlight Compensation (BLC)
BLC prevents silhouetting when subject is backlit.
Yes
Bitrate Control
VBR: variable bitrate (better quality). CBR: constant (predictable bandwidth).
Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Min Focusing Distance
2 m
Detection Distance
28 m
Dynamic Range
120 dB
Focal Length
1.4 mm
Highlight Compensation (HLC)
HLC reduces overexposed bright spots (headlights, floodlights) in the frame.
Yes
Identification Distance
2.8 m
Field of View (Diagonal)
180 °
Field of View (Horizontal)
180 °
Field of View (Vertical)
180 °
Max Aperture (f-number)
Lower f-number = wider aperture = better low-light performance.
2
Night Vision
Yes
IR Night Vision Range
10 m
Noise Reduction
Yes
Noise Reduction Technology
3D DNR: better quality, reduces temporal noise. 2D DNR: lower latency.
3D noise reduction
Effective Pixels (H×V)
2592 x 1944 pixels
IR LEDs
3
Observation Distance
11.2 m
Recognition Distance
5.6 m
Signal-to-Noise Ratio
Higher SNR (dB) = cleaner image with less grain/noise. 50+ dB is good.
56 dB
Video Formats
H.264+/H.265+
White Balance
Corrects colour cast under different lighting. ATW = auto-tracking white balance.
Auto/Manual/Natural/Outdoor/Street lamp
Networking
Network Protocols
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP
Max Concurrent Users
20 user(s)
Features
Number of Cameras
1
Privacy Masking
Blocks specific zones from being recorded to protect privacy.
Yes
Video Compression
H.265 (HEVC): half the storage of H.264 at same quality. MJPEG: high CPU usage.
H.264/H.264B/H.264H/H.265
Motion Detection
Yes
Alarm Input Channels
Dry-contact inputs for external sensors (PIR, door contacts, smoke detectors).
1
Alarm Output Channels
Relay outputs to trigger external devices (sirens, lights, door locks).
1
AI / Smart Features
AI analytics: face recognition, line crossing, intrusion detection, vehicle detection.
Heat map/Intrusion/Tripwire
ROI Encoding
Region of Interest . allocates more bitrate to key areas for sharper detail there.
Yes
Compatibility
Mobile OS Support
Android/iOS
Web Browser Access
Yes
Physical
Weight
0.299000
Mounting Type
Ceiling/wall
Operating Humidity
0 - 95 %
Installation Type
Ceiling: dome cameras. Wall: bullet/box cameras. Pole: outdoor cameras.
Indoor & outdoor
Colour
Black, White
Height
44.6 mm
Additional
Certifications
CE-LVD: EN62368-1, CE-EMC: Electromagnetic Compatibility Directive, 2014/30/EU, FCC: 47 CFR FCC Part 15, Subpart B, UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Warranty
36
SKU
1364140
EAN
6939554993855
