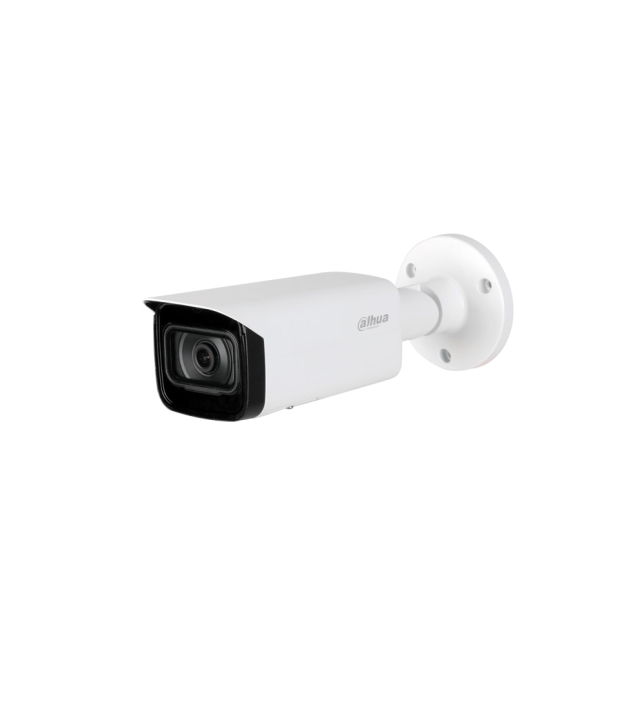

NET CAMERA 5MP IR BULLET/HFW5541T-ASE-0280B-S3-B DAHUA
MPN:
HFW5541T-ASE-0280B-S3-B
Brand:
DAHUA
Connection Type:
Wired
Night Vision:
Yes
Resolution:
2592 x 1944 pixels
€341.22
/ incl. VAT
€282.00
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
4 in Stock
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
Dahua AI series products adopt the most advanced AI technologies, including deep learning algorithms that primarily target people and vehicles, which provides higher flexibility and accuracy for end-users. This enables the Dahua AI series to offer various advanced applications such as Face Recognition, ANPR, Metadata, People Counting, traffic data statistics, etc.The complete lineup of Dahua AI includes network (PTZ) cameras, network video recorders, servers, and platform management products. Beyond seeing the world, the power of AI allows devices to perceive the environment and understand the world in a better way
Specifications
General
Model
IPC-HFW5541T-ASE-0280B-S3-B
Type
IP security camera
Angle Rotation
360 °
Mirror
Yes
Streaming Method
Multicast/Unicast
Web Based Management
Yes
Memory
RAM
RAM (Random Access Memory) is the system's working memory where active applications and the operating system live. More RAM means smoother multitasking and bigger files can be edited without swapping to disk. 16 GB is the comfortable minimum for modern sy
512 MB
Storage
Compatible Card Types
MicroSD (TransFlash)
Built-in HDD
No
Max Memory Card
256 GB
ROM Capacity
128 MB
Connectivity
Bluetooth
No
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
Yes
Wi-Fi
No
Card Reader
Yes
LAN Ports
1
LAN Speed
Fast Ethernet
Audio
Audio Formats
AAC
Audio Input Channels
1.0 channels
Audio Channels
2.0 = stereo. 5.1 = surround with subwoofer. 7.1 = full surround for gaming/cinema.
1.0 channels
Bit Depth / Bitrate
32- 8192Kbps, 19- 8192Kbps
Power
Max Power Draw
7.1 W
Power Source
DC, PoE
DC Output Voltage
12
Power Consumption
8.4 W
Camera
Shutter Speed
Exposure time range. Faster shutter reduces motion blur in bright scenes.
1/3 - 1/100000 s
Flip / Mirror Image
Flip: vertical. Mirror: horizontal. For cameras mounted upside-down.
Yes
Frame Rate
Frames per second (fps). 30 fps = standard; 60 fps = smoother video.
30 fps
IR Cut Filter
Mechanically removes IR filter at night for true night vision.
Yes
LED Type
IR
Min. Illumination
Minimum lux for clear image. Lower = better in dark environments. 0 lux = IR only.
0 lx
Sensor Size
Larger sensor = better low-light performance. Full-frame > APS-C > MFT > 1/2.8".
1/2.7
Progressive Scan
Captures full frames vs interlaced (alternating lines). Reduces motion blur.
Yes
Sensor Type
CMOS: most cameras today. CCD: older, higher quality. BSI: better low-light.
CMOS
Video Resolutions
1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2592 x 1944/2688 x 1520/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576
Supported Video Modes
1080p/720p
Resolution (MP)
Higher megapixels = more detail. 12MP+ is sufficient for most uses.
5 MP
Wide Dynamic Range (WDR)
Captures detail in both bright and dark areas simultaneously.
Yes
Backlight Compensation (BLC)
BLC prevents silhouetting when subject is backlit.
Yes
Bitrate Control
VBR: variable bitrate (better quality). CBR: constant (predictable bandwidth).
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Min Focusing Distance
1.6 m
Detection Distance
80 m
Highlight Compensation (HLC)
HLC reduces overexposed bright spots (headlights, floodlights) in the frame.
Yes
Identification Distance
8 m
Field of View (Horizontal)
84 °
Field of View (Vertical)
58 °
Max Aperture (f-number)
Lower f-number = wider aperture = better low-light performance.
1.6
Night Vision
Yes
IR Night Vision Range
78 m
Noise Reduction
Yes
Noise Reduction Technology
3D DNR: better quality, reduces temporal noise. 2D DNR: lower latency.
3D noise reduction
IR LEDs
4
Observation Distance
32 m
Recognition Distance
16 m
White Balance
Corrects colour cast under different lighting. ATW = auto-tracking white balance.
Auto/Manual/Natural/Outdoor
PTZ Pan Control
Yes
PTZ Tilt Control
Yes
Pan Range
0 - 360 °
Video Streaming
Yes
Fixed Focal Length
3.6 mm
Camera Shutter Type
Electronic/Mechanical
Networking
Networking Standards
IEEE 802.3af
QoS Support
Quality of Service prioritises camera stream traffic on the network.
Yes
Network Protocols
HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP;SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; SNMP;QoS; UPnP;NTP
Max Concurrent Users
20 user(s)
Features
Alarm Input Output
Yes
Number of Cameras
1
Privacy Masking
Blocks specific zones from being recorded to protect privacy.
Yes
Video Compression
H.265 (HEVC): half the storage of H.264 at same quality. MJPEG: high CPU usage.
H.264/H.264+/H.265/H.265+/M-JPEG
Motion Detection
Yes
AI / Smart Features
AI analytics: face recognition, line crossing, intrusion detection, vehicle detection.
Intrusion/People counting/Scene change/Tripwire
Gain Control Type
Auto/Manual
Voice Codecs
G.711a/G.711Mu/G.723/G.726
Compatibility
Mobile OS Support
Android/iOS
Physical
Weight
0.815000
Form Factor
Bullet
IP Rating
IP66: dust-tight + jets. IP67: waterproof 1m/30min. IP68: continuous immersion.
IP67
Length
244.1 mm
Mounting Type
Ceiling/wall
Operating Humidity
10 - 95 %
Installation Type
Ceiling: dome cameras. Wall: bullet/box cameras. Pole: outdoor cameras.
Outdoor
Colour
White
Tilt Adjustment
0 - 90 °
Depth
75.9 mm
Width
79 mm
Additional
Certifications
CE-LVD:EN60950-1, CE-EMC, 2014/30/EU, FCC:47 CFR FCC 15, B, UL/CUL:, UL60950-1, CAN/CSA C22.2 No.60950-1-07
Warranty
36
SKU
1404933
EAN
6923172578693
