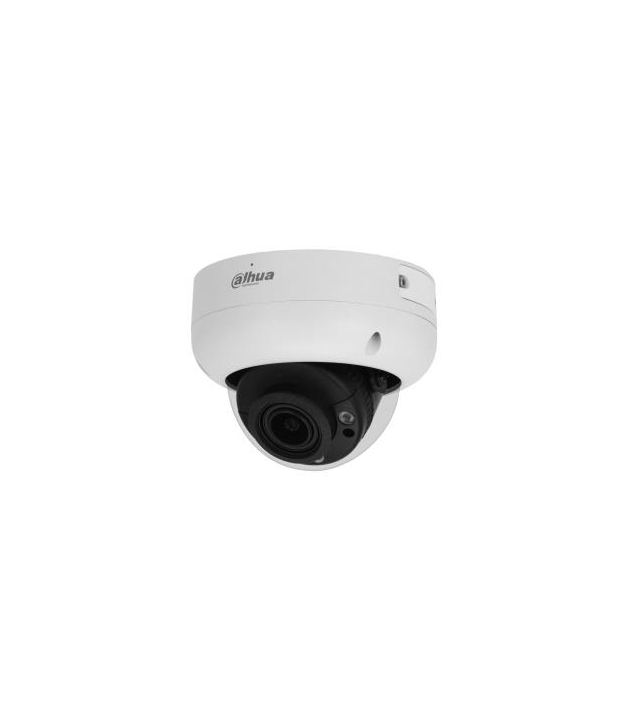

Dahua Technology WizSense HDBW3541R-ZAS-27135-S2 security camera Dome IP security camera Outdoor 2960 x 1668 pixels Ceiling/wall
MPN:
HDBW3541R-ZAS-27135-S2
Brand:
DAHUA
Connection Type:
Wired
Resolution:
2960 x 1668 pixels
€486.42
/ incl. VAT
€402.00
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
5 in Stock
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
- 5MP 1/2.7 CMOS image sensor, excellent low luminance performance and high definition of images
- Outputs max. 5 MP (2960 × 1668) @20 fps and supports 4MP (2688 × 1520) @25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in IR LED, max. IR distance: 40 m
- ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
- Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
- Alarm: 1 in, 1 out (Only - ZAS supports); audio: 1 in, 1 out (Only - ZAS supports); max. 256 G Micro SD card; built-in Mic
- 12 VDC/PoE power supply, easy for installation
- IP67, IK10 protection
- SMD 4.0, AI SSA
Specifications
Images
Image Stabilizer
Yes
General
Model
IPC-HDBW3541R-ZAS-27135-S2
Type
IP security camera
Angle Rotation
355 °
Behavior Analysis
Intrusion detection
Detect Distance Tele
210 m
Detect Distance Wide
64 m
Focus
Motorized
Fog Proof
Yes
Identify Distance Tele
21 m
Identify Distance Wide
6.4 m
Mirror
Yes
Number Privacy Masking Areas
4
Observe Distance Tele
84 m
Observe Distance Wide
25.6 m
Recognize Distance Tele
42 m
Recognize Distance Wide
12.8 m
Streaming Method
Multicast
Web Based Management
Yes
Memory
RAM
RAM (Random Access Memory) is the system's working memory where active applications and the operating system live. More RAM means smoother multitasking and bigger files can be edited without swapping to disk. 16 GB is the comfortable minimum for modern sy
512 MB
Storage
Compatible Card Types
MicroSD (TransFlash)
Built-in HDD
No
Max Memory Card
256 GB
ROM Capacity
128 MB
Connectivity
Bluetooth
No
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
Yes
Wi-Fi
No
Card Reader
Yes
LAN Ports
1
LAN Speed
Fast Ethernet
Audio
Audio Input Channels
1.0 channels
Audio Channels
2.0 = stereo. 5.1 = surround with subwoofer. 7.1 = full surround for gaming/cinema.
1.0 channels
Bit Depth / Bitrate
H.264: 3 kbps-8192 kbps H.265: 3 kbps-8192 kbps
Built-in Microphone
Yes
Power
Max Power Draw
9.2 W
Typical Power Draw
Typical board power (W) is the power draw under normal gaming load. Use it to estimate electricity cost and to size cooling. Peak transient spikes can be 20-30 percent higher, which is why PSU recommendations leave a buffer.
4 W
Power Source
DC, PoE
DC Output Voltage
12
Power Consumption
4.9 W
Camera
Shutter Speed
Exposure time range. Faster shutter reduces motion blur in bright scenes.
1/3 - 1/100000 s
Frame Rate
Frames per second (fps). 30 fps = standard; 60 fps = smoother video.
30 fps
LED Type
IR
Min. Illumination
Minimum lux for clear image. Lower = better in dark environments. 0 lux = IR only.
0 lx
Sensor Size
Larger sensor = better low-light performance. Full-frame > APS-C > MFT > 1/2.8".
1/2.7
Progressive Scan
Captures full frames vs interlaced (alternating lines). Reduces motion blur.
Yes
Sensor Type
CMOS: most cameras today. CCD: older, higher quality. BSI: better low-light.
CMOS
Video Resolutions
1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/2304 x 1296/2560 x 1440/2688 x 1520/2880 x 1620/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576
Resolution (MP)
Higher megapixels = more detail. 12MP+ is sufficient for most uses.
5 MP
Adjustable Shutter Speed
Auto/Manual
Backlight Compensation (BLC)
BLC prevents silhouetting when subject is backlit.
Yes
Bitrate Control
VBR: variable bitrate (better quality). CBR: constant (predictable bandwidth).
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Min Focusing Distance
0.8 m
Dynamic Range
120 dB
Focal Length
2.7 - 13.5 mm
Highlight Compensation (HLC)
HLC reduces overexposed bright spots (headlights, floodlights) in the frame.
Yes
Field of View (Diagonal)
138 - 36 °
Field of View (Horizontal)
114 - 32 °
Field of View (Vertical)
58 - 17 °
Night Vision
Yes
IR Night Vision Range
40 m
Noise Reduction
Yes
Noise Reduction Technology
3D DNR: better quality, reduces temporal noise. 2D DNR: lower latency.
3D noise reduction
IR LEDs
3
Signal-to-Noise Ratio
Higher SNR (dB) = cleaner image with less grain/noise. 50+ dB is good.
56 dB
White Balance
Corrects colour cast under different lighting. ATW = auto-tracking white balance.
Auto/Manual/Natural/Outdoor/Regional custom/Street lamp
Pan Range
0 - 355 °
Camera Shutter Type
Electronic
Minimum Aperture Number
1.5
Networking
Networking Standards
IEEE 802.3af
QoS Support
Quality of Service prioritises camera stream traffic on the network.
Yes
Network Protocols
IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP;
Max Concurrent Users
20 user(s)
Features
Number of Cameras
1
Privacy Masking
Blocks specific zones from being recorded to protect privacy.
Yes
Video Compression
H.265 (HEVC): half the storage of H.264 at same quality. MJPEG: high CPU usage.
H.264/H.264B/H.264H/H.265/M-JPEG
Alarm Input Channels
Dry-contact inputs for external sensors (PIR, door contacts, smoke detectors).
1
Alarm Output Channels
Relay outputs to trigger external devices (sirens, lights, door locks).
1
ROI Encoding
Region of Interest . allocates more bitrate to key areas for sharper detail there.
Yes
Gain Control Type
Auto
Smart Ir
Yes
Voice Codecs
G.711a/G.711Mu/G.723/G.726/PCM
Compatibility
Mobile OS Support
Android/iOS
Web Browser Access
Yes
Physical
Weight
0.713000
Form Factor
Dome
IP Rating
IP66: dust-tight + jets. IP67: waterproof 1m/30min. IP68: continuous immersion.
IP67
IK Rating
Impact protection rating IK00–IK10. IK10 = withstands 20J impact.
IK10
Mounting Type
Ceiling/wall
Operating Humidity
0 - 95 %
Installation Type
Ceiling: dome cameras. Wall: bullet/box cameras. Pole: outdoor cameras.
Outdoor
Colour
Black, White
Height
122 mm
Tilt Adjustment
0 - 80 °
Additional
Warranty
36
SKU
1387135
EAN
6923172542267
