Product Description

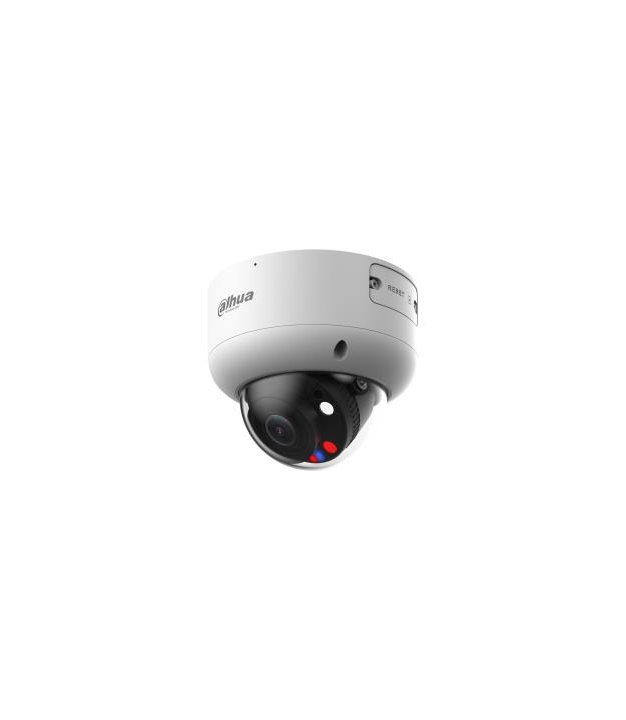

5MP Smart Dual Light Active Deterrence Vari-focal Dome WizSense Network Camera
> 5-MP 1/2.7 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 5 MP (2960 × 1668) @20 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light and IR LED; the max. IR illumination distance is 50 m and warm light distance is 40 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection; face detection (full image).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk.
> 12 VDC/PoE power supply.
> IP67 and IK10 protection.
> Sound and light alarm (red and blue lights).
> SMD 4.0.
> Supports AI SSA and one-tap arming and disarming.
> SMD area can be set in warm light areas that support triggering alarms.
> Focal Length: 2.7 mm–13.5 mm
> Field of View: 113°–36°
Specifications
Images
Image Stabilizer
Yes
General
Model
IPC-HDBW3549R1-ZAS-PV
A 3d Nr
Yes
Suitable For Outdoor Use
Yes
Storage
Compatible Card Types
MicroSD (TransFlash)
Max Memory Card
512 GB
Audio
Built-in Microphone
Yes
Audio Input
1
Audio Output
1
Built-in Speakers
Yes
Camera
Shutter Speed
Exposure time range. Faster shutter reduces motion blur in bright scenes.
1/3 s–1/100, 000 s s
Flip / Mirror Image
Flip: vertical. Mirror: horizontal. For cameras mounted upside-down.
Yes
LED Type
IR/White
Sensor Size
Larger sensor = better low-light performance. Full-frame > APS-C > MFT > 1/2.8".
1/2.7
Progressive Scan
Captures full frames vs interlaced (alternating lines). Reduces motion blur.
Yes
Sensor Type
CMOS: most cameras today. CCD: older, higher quality. BSI: better low-light.
CMOS
Resolution (MP)
Higher megapixels = more detail. 12MP+ is sufficient for most uses.
5 MP
Adjustable Shutter Speed
Auto/Manual
Focal Length
2.7 mm–13.5 mm mm
Noise Reduction
Yes
Effective Pixels (H×V)
2960 (H) × 1668 (V) pixels
Lens Type
Varifocal
Features
Privacy Masking
Blocks specific zones from being recorded to protect privacy.
Yes
Alarm Input Channels
Dry-contact inputs for external sensors (PIR, door contacts, smoke detectors).
1
Alarm Output Channels
Relay outputs to trigger external devices (sirens, lights, door locks).
1
Physical
Weight
0.730000
Form Factor
Dome
Colour
White
Width
105 mm
Additional
Warranty
36
SKU
1453706
EAN
6923172504128
