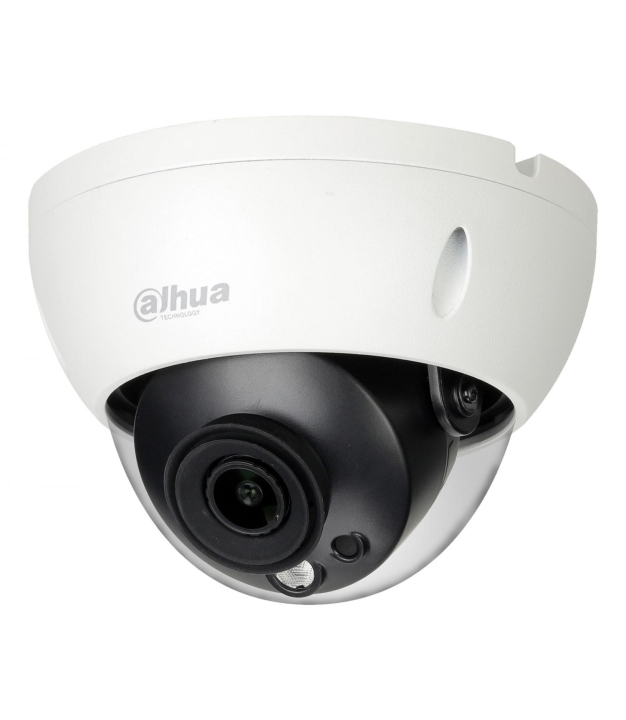

Dahua Technology Pro HDBW5541R-ASE Dome IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling/wall
MPN:
HDBW5541R-ASE-0280BOPAT
Brand:
DAHUA
Connection Type:
Wired
Resolution:
2688 x 1520 pixels
€159.72
/ incl. VAT
€132.00
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
16 in Stock
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
- 1/2.7” 5Megapixel progressive scan CMOS
- H.265 & H.264 triple-stream encoding
- 20 fps@2592 × 1944, 50/60 fps@1080P (1920 × 1080)
- WDR (120 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC
- Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS
- 2.8 mm fixed lens (3.6 mm, 6.0 mm optional)
- 1/1 Alarm in/out, 1/1 audio in/out
- Max. IR LEDs Length 50 m
- Micro SD memory, IP67, IK10
Specifications
General
Model
IPC-HDBW5541R-ASE-OPAT
Type
IP security camera
Angle Rotation
355 °
Digital Wide Dynamic Range Dwdr
Yes
Fixed Focus
Yes
Fog Proof
Yes
Mirror
Yes
Normal Focusing Range
2.5 - 6 m
Streaming Method
Multicast/Unicast
Video Intelligence Analytic
Yes
Web Based Management
Yes
Storage
Compatible Card Types
MicroSD (TransFlash)
Built-in HDD
No
Max Memory Card
256 GB
Connectivity
Bluetooth
No
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
Yes
Wi-Fi
No
Card Reader
Yes
LAN Ports
1
DC-In Jack
Yes
LAN Speed
Fast Ethernet
Audio
Audio Formats
AAC
Audio Input Channels
1.0 channels
Audio Channels
2.0 = stereo. 5.1 = surround with subwoofer. 7.1 = full surround for gaming/cinema.
1.0 channels
Bit Depth / Bitrate
H.264: 32 Kbps-8192 Kbps, H.265: 19 Kbps- 8192 Kbps
Power
Typical Power Draw
Typical board power (W) is the power draw under normal gaming load. Use it to estimate electricity cost and to size cooling. Peak transient spikes can be 20-30 percent higher, which is why PSU recommendations leave a buffer.
12.4 W
Power Source
AC, DC, PoE
DC Output Voltage
12
Input Voltage
24 V
Software
Management Software
Smart PSS, DSS, DMSS
Camera
Shutter Speed
Exposure time range. Faster shutter reduces motion blur in bright scenes.
1/3 - 1/100000 s
Flip / Mirror Image
Flip: vertical. Mirror: horizontal. For cameras mounted upside-down.
Yes
Frame Rate
Frames per second (fps). 30 fps = standard; 60 fps = smoother video.
30 fps
LED Type
IR
Min. Illumination
Minimum lux for clear image. Lower = better in dark environments. 0 lux = IR only.
0.002 lx
Sensor Size
Larger sensor = better low-light performance. Full-frame > APS-C > MFT > 1/2.8".
1/2.7
Progressive Scan
Captures full frames vs interlaced (alternating lines). Reduces motion blur.
Yes
Sensor Type
CMOS: most cameras today. CCD: older, higher quality. BSI: better low-light.
CMOS
Video Resolutions
1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440/2688 x 1520/352 x 240/352 x 288/640 x 480 (VGA)/704 x 576
Supported Video Modes
1080p/720p
Resolution (MP)
Higher megapixels = more detail. 12MP+ is sufficient for most uses.
5 MP
Adjustable Shutter Speed
Auto/Manual
Backlight Compensation (BLC)
BLC prevents silhouetting when subject is backlit.
Yes
Bitrate Control
VBR: variable bitrate (better quality). CBR: constant (predictable bandwidth).
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Detection Distance
30 m
Highlight Compensation (HLC)
HLC reduces overexposed bright spots (headlights, floodlights) in the frame.
Yes
Field of View (Diagonal)
129 °
Field of View (Horizontal)
98 °
Field of View (Vertical)
71 °
Max Aperture (f-number)
Lower f-number = wider aperture = better low-light performance.
1.6
Night Vision
Yes
IR Night Vision Range
80 m
Noise Reduction
Yes
Noise Reduction Technology
3D DNR: better quality, reduces temporal noise. 2D DNR: lower latency.
3D noise reduction
Effective Pixels (H×V)
2688 x 1520 pixels
IR LEDs
3
White Balance
Corrects colour cast under different lighting. ATW = auto-tracking white balance.
Auto/Lamp/Manual/Natural/Outdoor
PTZ Pan Control
Yes
PTZ Tilt Control
Yes
Pan Range
0 - 355 °
Video Streaming
Yes
Fixed Focal Length
2.8 mm
Camera Shutter Type
Electronic
Networking
Networking Standards
IEEE 802.1x
QoS Support
Quality of Service prioritises camera stream traffic on the network.
Yes
Network Protocols
IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP ;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP ;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;SNMP
Max Concurrent Users
20 user(s)
Features
Alarm Input Output
Yes
Auto Flip
Yes
Auto Focus
Yes
Tampering Alarm
Yes
Number of Cameras
1
Privacy Masking
Blocks specific zones from being recorded to protect privacy.
Yes
Video Compression
H.265 (HEVC): half the storage of H.264 at same quality. MJPEG: high CPU usage.
H.264/H.264+/H.265/H.265 Pro/H.265 Pro+/H.265+
Motion Detection
Yes
ROI Encoding
Region of Interest . allocates more bitrate to key areas for sharper detail there.
Yes
Gain Control Type
Auto/Manual
Motion Sensor
Yes
People Counting Function
Yes
Privacy Protection
Yes
Smart Ir
Yes
Voice Codecs
G.711a/G.711alaw/G.723/G.723.1/G.726/G.726-32
Compatibility
Windows Support
Yes
Mobile OS Support
Android/iOS
Web Browser Access
Yes
Physical
Weight
0.950000
Form Factor
Dome
IP Rating
IP66: dust-tight + jets. IP67: waterproof 1m/30min. IP68: continuous immersion.
IP67
IK Rating
Impact protection rating IK00–IK10. IK10 = withstands 20J impact.
IK10
Mounting Type
Ceiling/wall
Operating Humidity
0 - 95 %
Installation Type
Ceiling: dome cameras. Wall: bullet/box cameras. Pole: outdoor cameras.
Indoor & outdoor
Colour
White
Height
117.9 mm
Tilt Adjustment
0 - 65 °
Depth
159 mm
Additional
Warranty
36
SKU
1453707
EAN
6923172527431
