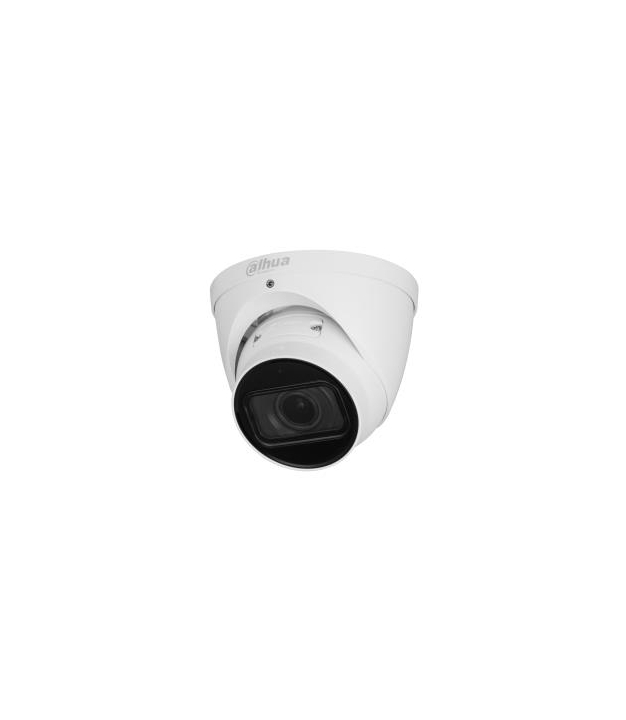

NET CAMERA 5MP IR EYEBALL/IPC-HDW5541T-ZE-27135-S3 DAHUA
MPN:
IPC-HDW5541T-ZE-27135-S3
Brand:
DAHUA
Connection Type:
Wired
Night Vision:
Yes
Resolution:
2960 x 1668 pixels
€573.54
/ incl. VAT
€474.00
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
5 in Stock
Short description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
Launched by Dahua Technology, Dahua WizMind is a full portfolio of solutions composed of project-oriented products including IPC, IVSS,NVR, PTZ, XVR, Thermal and software platform which adopts
industry-leading deep learning algorithms. Focusing on customer's requirements, WizMind provides precise, reliable and comprehensive AI solutions for verticals.
Driven by deep learning algorithms, Dahua WizMind S Series network camera offers a variety of intelligent functions that greatly improve the accuracy of audio and video analysis. It supports video metadata,
smart sound detection, face detection, perimeter protection, people counting and more. The camera also adopts advanced image processing AI ISP technology and has the Deeplight night vision effect. The camera
is dustproof, waterproof and vandal-proof, and is certified as IP67 and IK10 (the type of protection varies depending on the model).
- 5-MP 1/2.7 CMOS image sensor, low luminance, and high definition image
- Outputs max. 5MP (2960×1668) @25/30 fps
- Built-in IR LED, and the max. illumination distance is 40 m
- ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- With deep learning algorithm, it supports: video metadata, IVS, face detection, smart object detection, and people counting, etc
- Supports max. 1 TB Micro SD card, built-in MIC
- 12 VDC/PoE power supply; ePoE
- IP67 protection
- SMD 3.0
Specifications
Images
Image Stabilizer
Yes
General
Model
IPC-HDW5541T-ZE-27135-S3
Type
CCTV security camera
Angle Rotation
360 °
Bit Rate Range
12 - 16384 Kbit/s
Digital Watermark
Yes
Mirror
Yes
Number Privacy Masking Areas
8
Memory
RAM
1000 MB
Storage
Compatible Card Types
MicroSD (TransFlash)
Built-in HDD
No
Max Memory Card
1000 GB
ROM Capacity
4000 MB
Connectivity
Bluetooth
No
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
Yes
Wi-Fi
No
Card Reader
Yes
LAN Ports
1
LAN Speed
Fast Ethernet
Audio
Built-in Microphone
Yes
Power
Max Power Draw
8.5 W
Typical Power Draw
Typical board power (W) is the power draw under normal gaming load. Use it to estimate electricity cost and to size cooling. Peak transient spikes can be 20-30 percent higher, which is why PSU recommendations leave a buffer.
3.7 W
Power Source
DC, PoE
DC Output Voltage
12
Power Consumption
4.8 W
Camera
Shutter Speed
Exposure time range. Faster shutter reduces motion blur in bright scenes.
1/3 - 1/100000 s
Flip / Mirror Image
Flip: vertical. Mirror: horizontal. For cameras mounted upside-down.
Yes
LED Type
IR
Min. Illumination
Minimum lux for clear image. Lower = better in dark environments. 0 lux = IR only.
0.0005 lx
Sensor Size
Larger sensor = better low-light performance. Full-frame > APS-C > MFT > 1/2.8".
1/2.7
Progressive Scan
Captures full frames vs interlaced (alternating lines). Reduces motion blur.
Yes
Sensor Type
CMOS: most cameras today. CCD: older, higher quality. BSI: better low-light.
CMOS
Resolution (MP)
Higher megapixels = more detail. 12MP+ is sufficient for most uses.
5 MP
Video Recording
Yes
Wide Dynamic Range (WDR)
Captures detail in both bright and dark areas simultaneously.
Yes
Backlight Compensation (BLC)
BLC prevents silhouetting when subject is backlit.
Yes
Min Focusing Distance
0.8 m
Detection Distance
210 m
Focal Length
2.7 - 13.5 mm
Highlight Compensation (HLC)
HLC reduces overexposed bright spots (headlights, floodlights) in the frame.
Yes
Identification Distance
21 m
Field of View (Diagonal)
138-36 °
Field of View (Horizontal)
114-32 °
Field of View (Vertical)
58-17 °
Max Aperture (f-number)
Lower f-number = wider aperture = better low-light performance.
1.5
Night Vision
Yes
IR Night Vision Range
40 m
Noise Reduction
Yes
Noise Reduction Technology
3D DNR: better quality, reduces temporal noise. 2D DNR: lower latency.
3D noise reduction
Effective Pixels (H×V)
2960 x 1668 pixels
IR LEDs
2
Observation Distance
84 m
Recognition Distance
42 m
Signal-to-Noise Ratio
Higher SNR (dB) = cleaner image with less grain/noise. 50+ dB is good.
56 dB
White Balance
Corrects colour cast under different lighting. ATW = auto-tracking white balance.
Auto/Manual/Natural/Outdoor/Regional custom/Street lamp
Pan Range
0 - 360 °
Camera Shutter Type
Electronic
Networking
Network Protocols
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Register
Max Concurrent Users
20 user(s)
Features
Number of Cameras
1
Video Compression
H.265 (HEVC): half the storage of H.264 at same quality. MJPEG: high CPU usage.
H.264/H.264+/H.264B/H.264H/H.265/H.265+/M-JPEG
Motion Detection
Yes
ROI Encoding
Region of Interest . allocates more bitrate to key areas for sharper detail there.
Yes
Gain Control Type
Auto
People Counting Function
Yes
Physical
Weight
0.700000
Form Factor
Turret
IP Rating
IP66: dust-tight + jets. IP67: waterproof 1m/30min. IP68: continuous immersion.
IP67
Mounting Type
Ceiling
Operating Humidity
-40 - 60 %
Installation Type
Ceiling: dome cameras. Wall: bullet/box cameras. Pole: outdoor cameras.
Indoor & outdoor
Colour
White
Height
108.3 mm
Tilt Adjustment
0 - 78 °
Additional
Warranty
36
SKU
1433536
EAN
6923172587497
