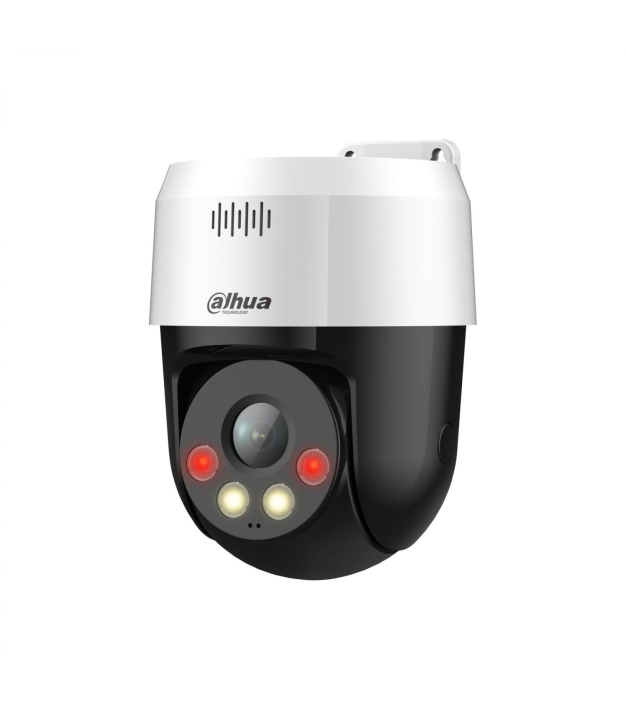

Dahua Technology WizSense SD2A500NB-GNY-A-PV Turret IP security camera Outdoor 2560 x 1920 pixels Ceiling/wall
MPN:
SD2A500NB-GNY-A-PV
Brand:
DAHUA
Connection Type:
Wired
Night Vision:
Yes
Resolution:
2560 x 1920 pixels
€175.69
/ incl. VAT
€145.20
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
1 in Stock
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions
The Active Defense series of small PT cameras raises the bar on performance. After detecting an intrusion, it triggers sound and light alarms, and then instantly relays vital information on the intrusion to the mobile client, keeping you informed no matter where you are. It supports twoway talk, allowing you to communicate with people in front of the camera in real time.It also can record full-color videos and information of key events using Smart Dual Illuminators, effectively reducing light pollution.
The Active Defense series of small PT cameras raises the bar on performance. After detecting an intrusion, it triggers sound and light alarms, and then instantly relays vital information on the intrusion to the mobile client, keeping you informed no matter where you are. It supports twoway talk, allowing you to communicate with people in front of the camera in real time.It also can record full-color videos and information of key events using Smart Dual Illuminators, effectively reducing light pollution.
Specifications
General
Model
SD2A500NB-GNY-A-PV
Type
IP security camera
Built In Light
Yes
CN Code
85258900
Dc Output Current
1.5 A
Pan Manual Speed
0.1 - 36.4 °/sec
Pan Preset Speed
74 °/sec
Siren Noise Level
55 dB
Web Based Management
Yes
Memory
RAM
128 MB
Storage
Compatible Card Types
MicroSD (TransFlash)
Built-in HDD
No
ROM Capacity
128 MB
Connectivity
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
Yes
Card Reader
Yes
LAN Ports
1
Audio
Audio System
1-way
Audio Input Channels
1.0 channels
Audio Channels
2.0 = stereo. 5.1 = surround with subwoofer. 7.1 = full surround for gaming/cinema.
1.0 channels
Built-in Microphone
Yes
Built-in Speakers
Yes
Power
Max Power Draw
9 W
Typical Power Draw
Typical board power (W) is the power draw under normal gaming load. Use it to estimate electricity cost and to size cooling. Peak transient spikes can be 20-30 percent higher, which is why PSU recommendations leave a buffer.
3.5 W
Power Source
DC, PoE
DC Output Voltage
12
Camera
Shutter Speed
Exposure time range. Faster shutter reduces motion blur in bright scenes.
1 - 100000 s
LED Type
IR/White
Min. Illumination
Minimum lux for clear image. Lower = better in dark environments. 0 lux = IR only.
0 lx
Sensor Size
Larger sensor = better low-light performance. Full-frame > APS-C > MFT > 1/2.8".
1/2.8
Progressive Scan
Captures full frames vs interlaced (alternating lines). Reduces motion blur.
Yes
Sensor Type
CMOS: most cameras today. CCD: older, higher quality. BSI: better low-light.
CMOS
Resolution (MP)
Higher megapixels = more detail. 12MP+ is sufficient for most uses.
5 MP
Wide Dynamic Range (WDR)
Captures detail in both bright and dark areas simultaneously.
Yes
Detection Distance
77.4 m
Field of View (Diagonal)
104.8 °
Field of View (Horizontal)
80.4 °
Field of View (Vertical)
58.1 °
Night Vision
Yes
IR Night Vision Range
30 m
IR LEDs
4
Observation Distance
31 m
Recognition Distance
15.5 m
PTZ Pan Control
Yes
PTZ Tilt Control
Yes
B&W Night Vision Range
30 m
Camera Shutter Type
Electronic
Networking
Max Concurrent Users
20 user(s)
Features
Alarm Input Output
Yes
Number of Cameras
1
PTZ Modes
Pan-Tilt-Zoom presets and auto-tracking modes.
Preset point
Alarm Input Channels
Dry-contact inputs for external sensors (PIR, door contacts, smoke detectors).
1
Alarm Output Channels
Relay outputs to trigger external devices (sirens, lights, door locks).
1
Ptz Control
Yes
Physical
Weight
0.500000
Form Factor
Turret
Mounting Type
Ceiling/wall
Installation Type
Ceiling: dome cameras. Wall: bullet/box cameras. Pole: outdoor cameras.
Outdoor
Colour
White
Weatherproof
Yes
Tilt Adjustment
0 - 80 °
Width
140.5 mm
Tilt Manual Speed
0.1 - 36.4 °/sec
Tilt Preset Speed
36.3 °/sec
Weight (with stand)
1000 g
Additional
Warranty
36
SKU
1425267
EAN
6923172576934
