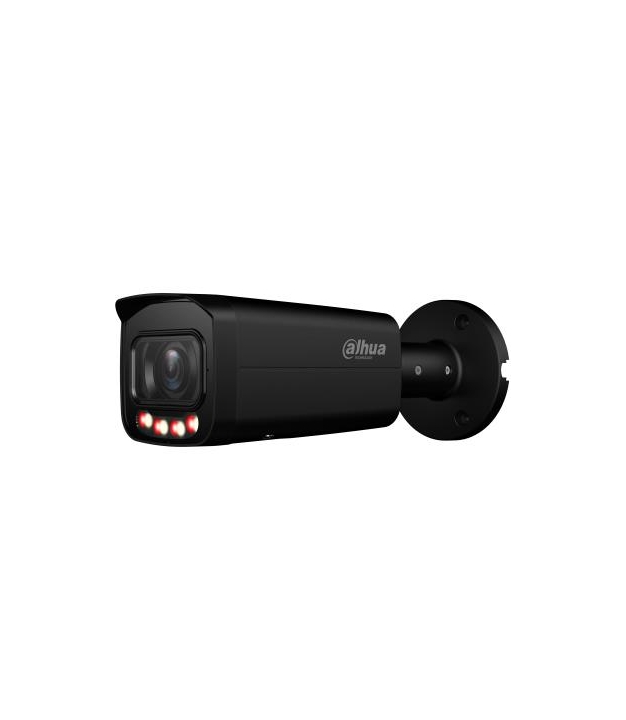

Dahua Technology IPC-HFW3649T-ZAS-IL-27135-B security camera Bullet IP security camera Indoor & outdoor 3288 x 1850 pixels Ceiling/wall
MPN:
IPC-HFW3649T-ZAS-IL-27135-B
Brand:
DAHUA
Connection Type:
Wired
Resolution:
3288 x 1850 pixels
€704.22
/ incl. VAT
€582.00
/ excl. VAT
/ incl. VAT
/ excl. VAT
This product is currently out of stock.
Subscribe to back in stock notification.
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
- 1/2.7 CMOS image sensor, low luminance, and high definition image
- Outputs max. 6 MP (3288 × 1850)@25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in multi-core light, the max. IR distance is 60 m and the max. warm light distance is 60 m
- ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human), stay detection, loitering detection, face detection (full image)
- Abnormality detection: Motion detection,video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in Mic
- 12 VDC/PoE power supply
- IP67, IK10 (optional, IEC 62262:2002) protection
- SMD 4.0
- Supports AI SSA
- SMD area can be set in warm light areas that support triggering alarms
Specifications
Images
Image Stabilizer
Yes
General
Type
IP security camera
Angle Rotation
360 °
Cloud Managed
Yes
Detect Distance Tele
280 m
Detect Distance Wide
85.3 m
Fog Proof
Yes
Identify Distance Tele
28 m
Identify Distance Wide
8.5 m
Observe Distance Tele
112 m
Observe Distance Wide
34 m
Recognize Distance Tele
56 m
Recognize Distance Wide
17.1 m
Web Based Management
Yes
Storage
Built-in HDD
No
Connectivity
Bluetooth
No
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
Yes
Wi-Fi
No
Audio
Audio Input Channels
1.0 channels
Audio Channels
2.0 = stereo. 5.1 = surround with subwoofer. 7.1 = full surround for gaming/cinema.
1.0 channels
Bit Depth / Bitrate
H.264: 3 kbps-8192 kbps; H.265: 3 kbps-8192 kbps
Built-in Microphone
Yes
Power
Power Source
DC, PoE
Camera
Shutter Speed
Exposure time range. Faster shutter reduces motion blur in bright scenes.
1/3 - 1/100.000 s
Flip / Mirror Image
Flip: vertical. Mirror: horizontal. For cameras mounted upside-down.
Yes
Frame Rate
Frames per second (fps). 30 fps = standard; 60 fps = smoother video.
30 fps
Min. Illumination
Minimum lux for clear image. Lower = better in dark environments. 0 lux = IR only.
0.005 lx
Sensor Size
Larger sensor = better low-light performance. Full-frame > APS-C > MFT > 1/2.8".
1/2.7
Progressive Scan
Captures full frames vs interlaced (alternating lines). Reduces motion blur.
Yes
Sensor Type
CMOS: most cameras today. CCD: older, higher quality. BSI: better low-light.
CMOS
Video Resolutions
1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440/2688 x 1520/352 x 240/352 x 288/704 x 480/704 x 576
Resolution (MP)
Higher megapixels = more detail. 12MP+ is sufficient for most uses.
6 MP
Wide Dynamic Range (WDR)
Captures detail in both bright and dark areas simultaneously.
Yes
Backlight Compensation (BLC)
BLC prevents silhouetting when subject is backlit.
Yes
Bitrate Control
VBR: variable bitrate (better quality). CBR: constant (predictable bandwidth).
Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Highlight Compensation (HLC)
HLC reduces overexposed bright spots (headlights, floodlights) in the frame.
Yes
Night Vision
Yes
Noise Reduction
Yes
Noise Reduction Technology
3D DNR: better quality, reduces temporal noise. 2D DNR: lower latency.
3D noise reduction
Signal-to-Noise Ratio
Higher SNR (dB) = cleaner image with less grain/noise. 50+ dB is good.
56 dB;56 dB
White Balance
Corrects colour cast under different lighting. ATW = auto-tracking white balance.
Auto/Custom modes/Lamp/Manual/Natural/Outdoor
Pan Range
0 - 360 °
Video Streaming
Yes
Networking
Networking Standards
IEEE 802.1x/IEEE 802.3af
Network Protocols
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Features
Tampering Alarm
Yes
Number of Cameras
1
Video Compression
H.265 (HEVC): half the storage of H.264 at same quality. MJPEG: high CPU usage.
H.264/H.264+/H.264B/H.264H/H.265/H.265+/M-JPEG
Motion Detection
Yes
Gain Control Type
Auto/Manual
Voice Codecs
G.711a/G.711Mu/G.723/PCM
Compatibility
Web Browser Access
Yes
Physical
Weight
0.835000
Form Factor
Bullet
IP Rating
IP66: dust-tight + jets. IP67: waterproof 1m/30min. IP68: continuous immersion.
IP67
Mounting Type
Ceiling/wall
Operating Humidity
0 - 95 %
Installation Type
Ceiling: dome cameras. Wall: bullet/box cameras. Pole: outdoor cameras.
Indoor & outdoor
Colour
Black
Height
90.7 mm
Tilt Adjustment
0 - 90 °
Depth
238.5 mm
Width
90.7 mm
Additional
Certifications
CE-LVD: EN62368-1;, CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Warranty
36
SKU
1455223
EAN
6939554927164
