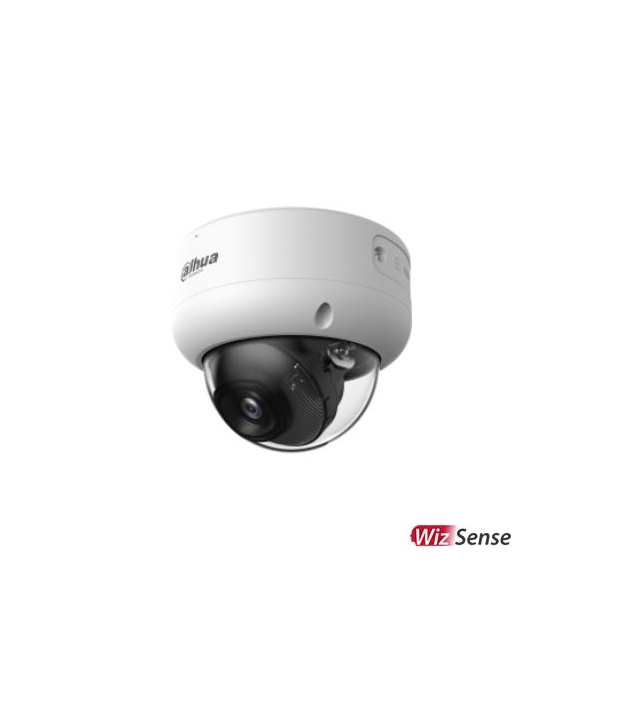

NET CAMERA 6MP DOME/HDBW3649E-AS-IL-0280B DAHUA
MPN:
DH-IPC-HDBW3649E-AS-IL-0280B
Brand:
DAHUA
Connection Type:
Wired
€473.72
/ incl. VAT
€391.50
/ excl. VAT
/ incl. VAT
/ excl. VAT
This product is currently out of stock.
Subscribe to back in stock notification.
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
> 6-MP 1/2.7 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 6 MP (3288 1850)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED and warm light , the max. IR illumination distance is 30 m and the max. warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection; face detection (full image).
> Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in Mic.
> 12 VDC/PoE power supply.
> IP67 and IK10 protection.
> SMD 4.0.
> Supports AI SSA.
> SMD area can be set in warm light areas that support triggering alarms.
> Focal Length 2.8 mm, Field of View 110°
Specifications
Storage
Compatible Card Types
MicroSD (TransFlash)
Max Memory Card
512 GB
Display
Effective Sensor Resolution
6 pixels
Connectivity
LAN Ports
1
Audio
Audio Input Channels
1.0 channels
Audio Channels
2.0 = stereo. 5.1 = surround with subwoofer. 7.1 = full surround for gaming/cinema.
1.0 channels
Built-in Microphone
Yes
Power
Max Power Draw
7.5 W
DC Output Voltage
12
Camera
Shutter Speed
Exposure time range. Faster shutter reduces motion blur in bright scenes.
1/3 s1/100, 000 s s
Sensor Size
Larger sensor = better low-light performance. Full-frame > APS-C > MFT > 1/2.8".
1/2.7
Sensor Type
CMOS: most cameras today. CCD: older, higher quality. BSI: better low-light.
CMOS
Adjustable Shutter Speed
Auto/Manual
Night Vision
Yes
B&W Night Vision Range
30 m
Fixed Focal Length
2.8 mm
Lens Mount Interface
M12
Networking
Power Over Ethernet Poe
Yes
Features
Alarm Input Channels
Dry-contact inputs for external sensors (PIR, door contacts, smoke detectors).
1
Alarm Output Channels
Relay outputs to trigger external devices (sirens, lights, door locks).
1
Physical
Form Factor
Dome
Additional
Warranty
36
SKU
1441435
EAN
6939554919961
