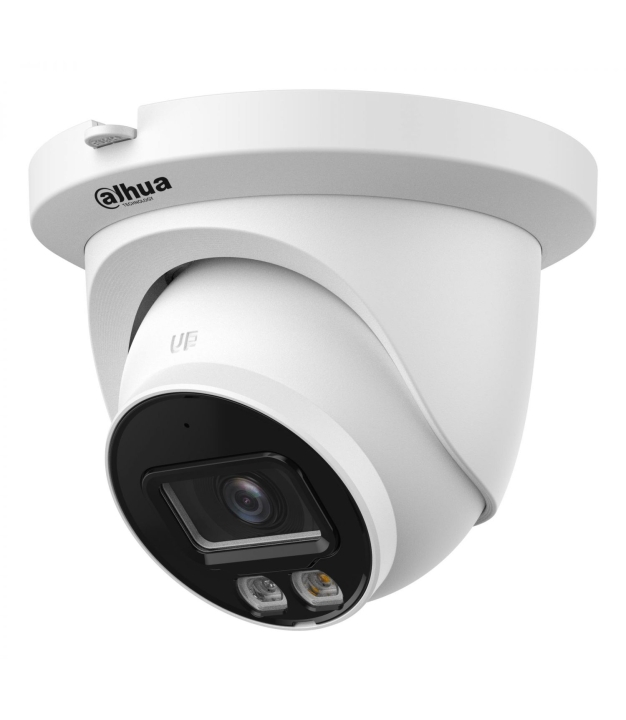

Dahua Technology WizSense IPC-HDW2649TM-S-IL-0280B security camera Turret IP security camera Indoor 3288 x 1850 pixels Ceiling/Wall/Pole
MPN:
IPC-HDW2649TM-S-IL-0280B
Brand:
DAHUA
Connection Type:
Wired
Night Vision:
Yes
Resolution:
3288 x 1850 pixels
€214.90
/ incl. VAT
€177.60
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
26 in Stock
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
- 1/2.7 CMOS image sensor, low luminance, and high definition image
- Outputs max. 6 MP (3288×1850) @20 fps, and supports 2688×1520 (2688 × 1520) @25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in warm light and IR LED, the max. IR distance is 30 m and the max. warm light distance is 30 m
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
- Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
- Supports max. 256 G Micro SD card; built in Mic
- 12 VDC/PoE power supply, easy for installation
Specifications
General
Model
IPC-HDW2649TM-S-IL-0280B
Type
IP security camera
Angle Rotation
360 °
Certifications
CE
Fixed Focus
Yes
Human And Vehicle Targets Classification
Yes
Mirror
Yes
Number Privacy Masking Areas
4
Streaming Method
Multicast
Memory
RAM
256 MB
Storage
Compatible Card Types
MicroSD (TransFlash)
Built-in HDD
No
Max Memory Card
256 GB
ROM Capacity
128 MB
Network Access Storage Nas
Yes
Connectivity
Bluetooth
No
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
Yes
Wi-Fi
No
Card Reader
Yes
LAN Ports
1
DC-In Jack
Yes
LAN Speed
Fast Ethernet
Audio
Audio Formats
G.711 µ-law/G.711 A-law/G.726/PCM
Built-in Microphone
Yes
Power
Max Power Draw
4.6 W
Typical Power Draw
Typical board power (W) is the power draw under normal gaming load. Use it to estimate electricity cost and to size cooling. Peak transient spikes can be 20-30 percent higher, which is why PSU recommendations leave a buffer.
2.5 W
Power Source
DC, PoE
DC Output Voltage
12
Camera
Shutter Speed
Exposure time range. Faster shutter reduces motion blur in bright scenes.
1/3 - 1/100000 s
Frame Rate
Frames per second (fps). 30 fps = standard; 60 fps = smoother video.
30 fps
LED Type
IR
Min. Illumination
Minimum lux for clear image. Lower = better in dark environments. 0 lux = IR only.
0.0007 lx
Sensor Size
Larger sensor = better low-light performance. Full-frame > APS-C > MFT > 1/2.8".
1/2.7
Progressive Scan
Captures full frames vs interlaced (alternating lines). Reduces motion blur.
Yes
Sensor Type
CMOS: most cameras today. CCD: older, higher quality. BSI: better low-light.
CMOS
Resolution (MP)
Higher megapixels = more detail. 12MP+ is sufficient for most uses.
6 MP
Video Recording
Yes
Wide Dynamic Range (WDR)
Captures detail in both bright and dark areas simultaneously.
Yes
Backlight Compensation (BLC)
BLC prevents silhouetting when subject is backlit.
Yes
Bitrate Control
VBR: variable bitrate (better quality). CBR: constant (predictable bandwidth).
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Min Focusing Distance
1 m
Detection Distance
61.2 m
Dynamic Range
120 dB
Highlight Compensation (HLC)
HLC reduces overexposed bright spots (headlights, floodlights) in the frame.
Yes
Identification Distance
6.1 m
Field of View (Diagonal)
132 °
Field of View (Horizontal)
112 °
Field of View (Vertical)
61 °
Max Aperture (f-number)
Lower f-number = wider aperture = better low-light performance.
1.6
Night Vision
Yes
IR Night Vision Range
30 m
Noise Reduction
Yes
Noise Reduction Technology
3D DNR: better quality, reduces temporal noise. 2D DNR: lower latency.
3D noise reduction
IR LEDs
2
Observation Distance
24.5 m
Recognition Distance
12.2 m
White Balance
Corrects colour cast under different lighting. ATW = auto-tracking white balance.
Auto/Manual/Natural/Outdoor/Regional custom/Street lamp
PTZ Pan Control
Yes
PTZ Tilt Control
Yes
Pan Range
0 - 360 °
Video Streaming
Yes
Fixed Focal Length
2.8 mm
Networking
IP Address Filtering
Yes
Networking Standards
IEEE 802.1x
QoS Support
Quality of Service prioritises camera stream traffic on the network.
Yes
Network Protocols
IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, ICMP, IGMP, NFS, PPPoE, P2P
Features
Number of Cameras
1
Video Compression
H.265 (HEVC): half the storage of H.264 at same quality. MJPEG: high CPU usage.
H.264/H.264B/H.264H/H.265/M-JPEG
Motion Detection
Yes
ROI Encoding
Region of Interest . allocates more bitrate to key areas for sharper detail there.
Yes
Gain Control Type
Auto/Manual
Compatibility
Mobile OS Support
Android/iOS
Physical
Weight
0.530000
Form Factor
Turret
IP Rating
IP66: dust-tight + jets. IP67: waterproof 1m/30min. IP68: continuous immersion.
IP67
Colour Night Vision Distance
30 m
Mounting Type
Ceiling/Wall/Pole
Installation Type
Ceiling: dome cameras. Wall: bullet/box cameras. Pole: outdoor cameras.
Indoor
Colour
White
Height
99.1 mm
Tilt Adjustment
0 - 78 °
Additional
Warranty
36
SKU
1441442
EAN
6939554905285
