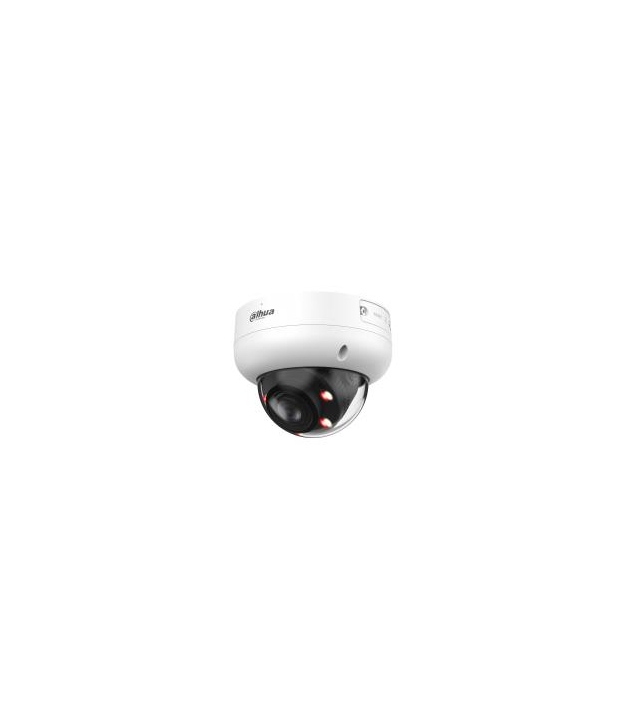

Dahua Technology WizSense DH-IPC-HDBW3849R-ZAS-IL-27135 security camera Dome IP security camera Indoor & outdoor 3840 x 2160 pixels Ceiling
MPN:
DH-IPC-HDBW3849R-ZAS-IL-27135
Brand:
DAHUA
Connection Type:
Wired
Night Vision:
Yes
Resolution:
3840 x 2160 pixels
€586.61
/ incl. VAT
€484.80
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
6 in Stock
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
8MP Smart Dual Light Vari-focal Dome WizSense Network Camera
- 8-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
- Outputs max. 8 MP (3840 × 2160)@25/30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in multi-core light, the max. IR distance is 50 m and the max. warm light distance is 50 m.
- ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
- Abnormality detection: Motion detection,video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
- Supports max. 512 G Micro SD card; built-in Mic.
- 12 VDC/PoE power supply.
- IP67, IK10 protection.
- SMD 4.0.
- Supports AI SSA.
- SMD area can be set in warm light areas that support triggering alarms.
- 8-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
- Outputs max. 8 MP (3840 × 2160)@25/30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in multi-core light, the max. IR distance is 50 m and the max. warm light distance is 50 m.
- ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
- Abnormality detection: Motion detection,video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
- Supports max. 512 G Micro SD card; built-in Mic.
- 12 VDC/PoE power supply.
- IP67, IK10 protection.
- SMD 4.0.
- Supports AI SSA.
- SMD area can be set in warm light areas that support triggering alarms.
Specifications
General
Model
IPC-HDBW3649R-ZAS-IL
Type
IP security camera
Angle Rotation
355 °
Bit Rate Range
3 - 8192 Kbit/s
Built In Light
Yes
Detect Distance Tele
257.4 m
Detect Distance Wide
89.9 m
Fixed Focus
Yes
Focus
Motorized/Manual
Identify Distance Tele
25.7 m
Identify Distance Wide
19 m
Mirror
Yes
Number Privacy Masking Areas
8
Observe Distance Tele
103 m
Observe Distance Wide
36 m
Recognize Distance Tele
51.5 m
Recognize Distance Wide
18 m
User Access Level
User
Memory
RAM
1024 MB
Storage
Compatible Card Types
MicroSD (TransFlash)
Max Memory Card
512 GB
ROM Capacity
256 MB
Display
Vertical Field Of View
58 °
Connectivity
Bluetooth
No
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
Yes
Wi-Fi
No
Card Reader
Yes
LAN Ports
1
LAN Speed
Fast Ethernet
Battery & Security
Password Protection
Yes
Audio
Audio Formats
G.711/G.723/G.726/PCM
Audio Input Channels
1.0 channels
Audio Channels
2.0 = stereo. 5.1 = surround with subwoofer. 7.1 = full surround for gaming/cinema.
1.0 channels
Built-in Microphone
Yes
Power
Max Power Draw
9 W
Power Source
DC, PoE
DC Output Voltage
12
Power Consumption
3.9 W
Software
Management Software
Smart PSS; DSS; DMSS
Firmware Upgradeable
Yes
Camera
Shutter Speed
Exposure time range. Faster shutter reduces motion blur in bright scenes.
1/3 s-1/100, 000 s
Frame Rate
Frames per second (fps). 30 fps = standard; 60 fps = smoother video.
30 fps
LED Type
IR/White
Min. Illumination
Minimum lux for clear image. Lower = better in dark environments. 0 lux = IR only.
0.007 lx
Sensor Size
Larger sensor = better low-light performance. Full-frame > APS-C > MFT > 1/2.8".
1/2.7
Progressive Scan
Captures full frames vs interlaced (alternating lines). Reduces motion blur.
Yes
Sensor Type
CMOS: most cameras today. CCD: older, higher quality. BSI: better low-light.
CMOS
Video Resolutions
1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/2304 x 1296/2592 x 1944/2688 x 1520/3072 x 1728/3072 x 2048/352 x 240/352 x 288/3840 x 2160/640 x 480 (VGA)/704 x 480/704 x 576
Resolution (MP)
Higher megapixels = more detail. 12MP+ is sufficient for most uses.
8 MP
Wide Dynamic Range (WDR)
Captures detail in both bright and dark areas simultaneously.
Yes
Adjustable Shutter Speed
Auto/Manual
Backlight Compensation (BLC)
BLC prevents silhouetting when subject is backlit.
Yes
Bitrate Control
VBR: variable bitrate (better quality). CBR: constant (predictable bandwidth).
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Min Focusing Distance
1.5 m
Dynamic Range
120 dB
Focal Length
2.7 - 13.5 mm
Highlight Compensation (HLC)
HLC reduces overexposed bright spots (headlights, floodlights) in the frame.
Yes
Field of View (Diagonal)
138 - 36 °
Field of View (Horizontal)
114 - 32 °
Field of View (Vertical)
58 - 17 °
Max Aperture (f-number)
Lower f-number = wider aperture = better low-light performance.
1
Night Vision
Yes
IR Night Vision Range
50 m
Noise Reduction
Yes
Noise Reduction Technology
3D DNR: better quality, reduces temporal noise. 2D DNR: lower latency.
3D noise reduction
Effective Pixels (H×V)
3840 x 2160 pixels
IR LEDs
2
Signal-to-Noise Ratio
Higher SNR (dB) = cleaner image with less grain/noise. 50+ dB is good.
56 dB;56 dB
White Balance
Corrects colour cast under different lighting. ATW = auto-tracking white balance.
Auto/Custom modes/Lamp/Manual/Natural/Outdoor
Pan Range
0 - 360 °
Video Streaming
Yes
Networking
Digest Authentication
Yes
Networking Standards
IEEE 802.1x/IEEE 802.3af
Network Protocols
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
Max Concurrent Users
20 user(s)
Features
Auto Focus
Yes
Number of Cameras
1
Video Compression
H.265 (HEVC): half the storage of H.264 at same quality. MJPEG: high CPU usage.
H.264/H.265
Motion Detection
Yes
Alarm Input Channels
Dry-contact inputs for external sensors (PIR, door contacts, smoke detectors).
1
Alarm Output Channels
Relay outputs to trigger external devices (sirens, lights, door locks).
1
ROI Encoding
Region of Interest . allocates more bitrate to key areas for sharper detail there.
Yes
Gain Control Type
Auto/Manual
Smart Ir
Yes
Compatibility
Mobile OS Support
Android/iOS
Physical
Weight
0.560000
Form Factor
Dome
IP Rating
IP66: dust-tight + jets. IP67: waterproof 1m/30min. IP68: continuous immersion.
IP67
IK Rating
Impact protection rating IK00–IK10. IK10 = withstands 20J impact.
IK10
Mounting Type
Ceiling
Installation Type
Ceiling: dome cameras. Wall: bullet/box cameras. Pole: outdoor cameras.
Indoor & outdoor
Colour
White
Height
94 mm
Tilt Adjustment
0 - 80 °
Additional
Certifications
CE-LVD: EN62368-1;, CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Warranty
36
SKU
1441428
EAN
6939554925757
