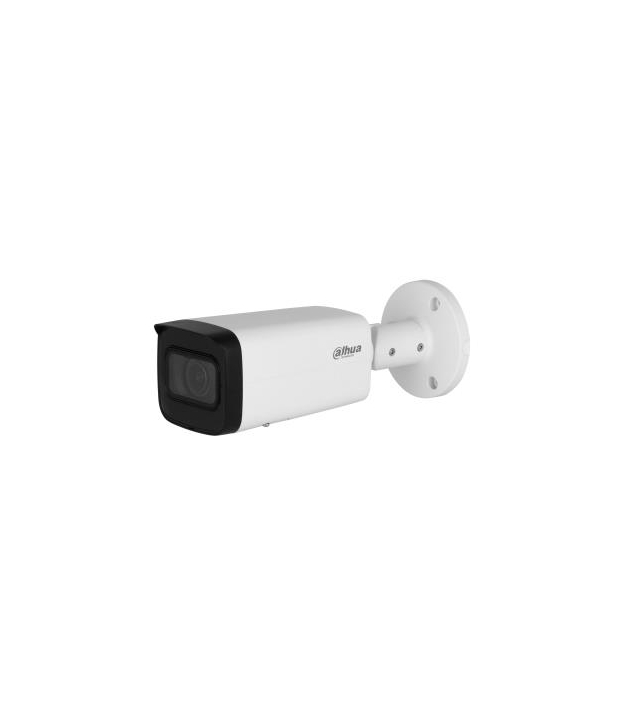

NET CAMERA 8MP IR BULLET/IPC-HFW3842T-ZAS-2712 DAHUA
MPN:
IPC-HFW3842T-ZAS-2712
Brand:
DAHUA
Connection Type:
Wired & Wireless
Night Vision:
Yes
Resolution:
3840 x 2160 pixels
€793.16
/ incl. VAT
€655.50
/ excl. VAT
/ incl. VAT
/ excl. VAT
This product is currently out of stock.
Subscribe to back in stock notification.
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
- Outputs max. 8 MP (3840 × 2160) 25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in IR LED, max. IR distance: 60 m
- ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Supports the AFSA (Anti-flicker Self-adaption) function, which automatically eliminates flicker
- Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
- Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; max. 256 G Micro SD card. built-in Mic
- SMD 4.0, AI SSA
Specifications
General
Type
IP security camera
Angle Rotation
360 °
Digital Watermark
Yes
Digital Wide Dynamic Range Dwdr
Yes
Focus
Motorized
Human And Vehicle Targets Classification
Yes
Mirror
Yes
Number Privacy Masking Areas
4
Streaming Method
Multicast
Web Based Management
Yes
Memory
RAM
1000 MB
Storage
Compatible Card Types
MicroSD (TransFlash)
Built-in HDD
No
Max Memory Card
256 GB
ROM Capacity
128 MB
Connectivity
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
Yes
LAN Ports
1
DC-In Jack
Yes
LAN Speed
Fast Ethernet
Audio
Audio Formats
G.711 A-law/G.723/G.726/PCM
Bit Depth / Bitrate
H.264: 3 kbps-16384 kbps H.265: 3 kbps-16384 kbps
Built-in Microphone
Yes
Microphone Input
Yes
Power
Max Power Draw
8.9 W
Typical Power Draw
Typical board power (W) is the power draw under normal gaming load. Use it to estimate electricity cost and to size cooling. Peak transient spikes can be 20-30 percent higher, which is why PSU recommendations leave a buffer.
3.6 W
Power Source
AC, DC
DC Output Voltage
12
Power Consumption
4.4 W
Camera
Shutter Speed
Exposure time range. Faster shutter reduces motion blur in bright scenes.
1/100000 s
Frame Rate
Frames per second (fps). 30 fps = standard; 60 fps = smoother video.
30 fps
IR Cut Filter
Mechanically removes IR filter at night for true night vision.
Yes
LED Type
IR/White
Min. Illumination
Minimum lux for clear image. Lower = better in dark environments. 0 lux = IR only.
0.003 lx
Sensor Size
Larger sensor = better low-light performance. Full-frame > APS-C > MFT > 1/2.8".
1/1.8
Progressive Scan
Captures full frames vs interlaced (alternating lines). Reduces motion blur.
Yes
Sensor Type
CMOS: most cameras today. CCD: older, higher quality. BSI: better low-light.
CMOS
Video Resolutions
3840 x 2160
Resolution (MP)
Higher megapixels = more detail. 12MP+ is sufficient for most uses.
8 MP
Wide Dynamic Range (WDR)
Captures detail in both bright and dark areas simultaneously.
Yes
Optical Zoom
Optical zoom uses lens movement (quality preserved). Digital zoom crops (loses quality).
Yes
Backlight Compensation (BLC)
BLC prevents silhouetting when subject is backlit.
Yes
Detection Distance
186.9 m
Focal Length
2.7 - 12 mm
Highlight Compensation (HLC)
HLC reduces overexposed bright spots (headlights, floodlights) in the frame.
Yes
Identification Distance
19 m
Field of View (Diagonal)
133 53 °
Field of View (Horizontal)
113 - 47 °
Field of View (Vertical)
60 - 26 °
Max Aperture (f-number)
Lower f-number = wider aperture = better low-light performance.
1.6
Night Vision
Yes
IR Night Vision Range
60 m
Noise Reduction
Yes
Noise Reduction Technology
3D DNR: better quality, reduces temporal noise. 2D DNR: lower latency.
3D noise reduction
Observation Distance
75.8 m
Recognition Distance
37.9 m
Signal-to-Noise Ratio
Higher SNR (dB) = cleaner image with less grain/noise. 50+ dB is good.
56 dB
Video Formats
H.264+/H.265+
White Balance
Corrects colour cast under different lighting. ATW = auto-tracking white balance.
Auto/Manual/Natural/Outdoor/Regional custom/Street lamp
Pan Range
0 - 360 °
Camera Shutter Type
Electronic
Networking
Networking Standards
IEEE 802.3af
Network Protocols
IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P
Features
Auto Focus
Yes
Alert Notifications
Push notification
HTTPS Encryption
Yes
Number of Cameras
1
Security Protocols
HTTPS
Video Compression
H.265 (HEVC): half the storage of H.264 at same quality. MJPEG: high CPU usage.
H.264/H.264B/H.264H/H.265/MPEG
Motion Detection
Yes
Alarm Input Channels
Dry-contact inputs for external sensors (PIR, door contacts, smoke detectors).
1
Alarm Output Channels
Relay outputs to trigger external devices (sirens, lights, door locks).
1
AI / Smart Features
AI analytics: face recognition, line crossing, intrusion detection, vehicle detection.
Intrusion/Tripwire
Detection Distance
189.6 m
Gain Control Type
Auto/Manual
Motion Sensor
Yes
Privacy Protection
Yes
Remote Viewing
Yes
Smart Ir
Yes
Physical
Weight
0.820000
Form Factor
Bullet
IP Rating
IP66: dust-tight + jets. IP67: waterproof 1m/30min. IP68: continuous immersion.
IP67
Length
238.5 mm
Mounting Type
Ceiling/wall
Operating Humidity
0 - 95 %
Installation Type
Ceiling: dome cameras. Wall: bullet/box cameras. Pole: outdoor cameras.
Indoor & outdoor
Colour
White
Weatherproof
Yes
Height
90.7 mm
Tilt Adjustment
0 - 90 °
Width
90.7 mm
Additional
Warranty
36
SKU
1399508
EAN
6923172597069
