Special offer

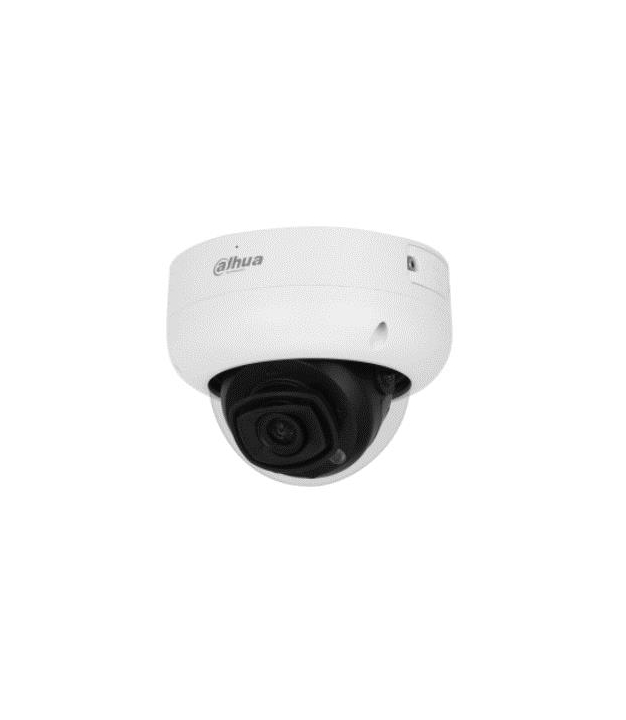

NET CAMERA 8MP IR DOME/HDBW5842R-ASE-0280B-S3 DAHUA
MPN:
HDBW5842R-ASE-0280B-S3
Brand:
DAHUA
Connection Type:
Wired
Resolution:
3840×2160 pixels
€630.17
/ incl. VAT
€520.80
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
1 in Stock
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
8MP IR Fixed-focal Vandal-proof Dome WizMind Network Camera
> 8-MP 1/1.8 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840×2160) @25/30fps
> Built-in IR LED, and the max. illumination distance is 50 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 GB Micro SD card, built-in MIC.
> 12 VDC/PoE power supply; ePoE.
> IP67 and IK10 protection.
> SMD 3.0.
Specifications
General
Model
IPC-HDBW5842R-ASE-0280B-S3
Type
IP security camera
A 3d Nr
Yes
Storage
Compatible Card Types
MicroSD (TransFlash)
Max Memory Card
512 GB
Audio
Built-in Microphone
Yes
Audio Input
1
Audio Output
1
Power
Typical Power Draw
Typical board power (W) is the power draw under normal gaming load. Use it to estimate electricity cost and to size cooling. Peak transient spikes can be 20-30 percent higher, which is why PSU recommendations leave a buffer.
5.2 W
Power Source
DC, PoE
DC Output Voltage
12
Camera
Shutter Speed
Exposure time range. Faster shutter reduces motion blur in bright scenes.
1/3 s–1/100, 000 s
LED Type
IR
Min. Illumination
Minimum lux for clear image. Lower = better in dark environments. 0 lux = IR only.
0.0004 lx
Sensor Size
Larger sensor = better low-light performance. Full-frame > APS-C > MFT > 1/2.8".
1/1.8
Sensor Type
CMOS: most cameras today. CCD: older, higher quality. BSI: better low-light.
CMOS
Resolution (MP)
Higher megapixels = more detail. 12MP+ is sufficient for most uses.
8 MP
Wide Dynamic Range (WDR)
Captures detail in both bright and dark areas simultaneously.
Yes
Backlight Compensation (BLC)
BLC prevents silhouetting when subject is backlit.
Yes
Highlight Compensation (HLC)
HLC reduces overexposed bright spots (headlights, floodlights) in the frame.
Yes
Night Vision
Yes
B&W Night Vision Range
50 m
Features
Alarm Input Output
Yes
Physical
Weight
0.720000
Form Factor
Dome
IP Rating
IP66: dust-tight + jets. IP67: waterproof 1m/30min. IP68: continuous immersion.
IP67
IK Rating
Impact protection rating IK00–IK10. IK10 = withstands 20J impact.
IK10
Colour
White
Height
94 mm
Additional
Warranty
36
SKU
1405022
EAN
6923172588197
