Product Description

>8-MP 1/2.7 CMOS image sensor, low luminance, and high definition image.
>Outputs max. 8 MP (3840 × 2160)@20 fps, and supports 2688 × 1520 (2688 × 1520)@25/30 fps.
>H.265 codec, high compression rate, ultra-low bit rate.
>Built-in multi-core light, the max. IR distance is 60 m and the max. warm light distance is 60 m.
>ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
>Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
>Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
>Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
>Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built in Mic.
>12 VDC/PoE power supply, easy for installation.
>IP67, IK10 (optional) protection.
>SMD Plus.
>Focal Length 2.7 mm–13.5 mm, Field of View: H: 114°–32°

Specifications

General

CN Code 85258900

Suitable For Outdoor Use Yes

Power

Power Source 12 VDC; PoE (802.3af)

Camera

Shutter Speed Exposure time range. Faster shutter reduces motion blur in bright scenes. 1/3 s–1/100, 000 s s

Sensor Size Larger sensor = better low-light performance. Full-frame > APS-C > MFT > 1/2.8". 1/2.7

Sensor Type CMOS: most cameras today. CCD: older, higher quality. BSI: better low-light. CMOS

Adjustable Shutter Speed Auto/Manual

Focal Length 2.7 mm–13.5 mm mm

Max Aperture (f-number) Lower f-number = wider aperture = better low-light performance. 1.5

Effective Pixels (H×V) 3840 (H) × 2160 (V) pixels

Lens Mount Interface M14

Lens Type Varifocal

Physical

Weight 0.760000

Form Factor Bullet

Colour White

Height 90.7 mm

Depth 90.7 mm

Width 238.5 mm

Additional

Warranty 36

SKU 1432615

EAN 6939554924477

Show All Specifications

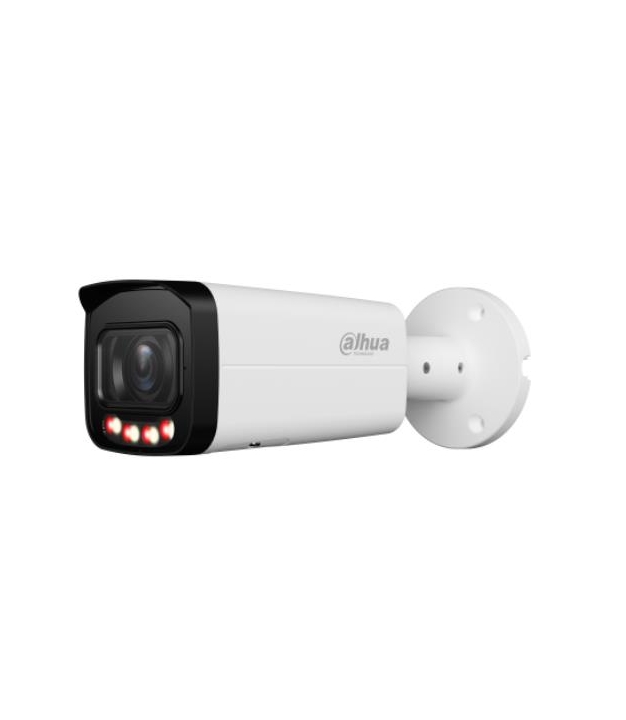

NET CAMERA 8MP IR DOME/IPC-HFW2849T-ZAS-IL27135 DAHUA

36 months
