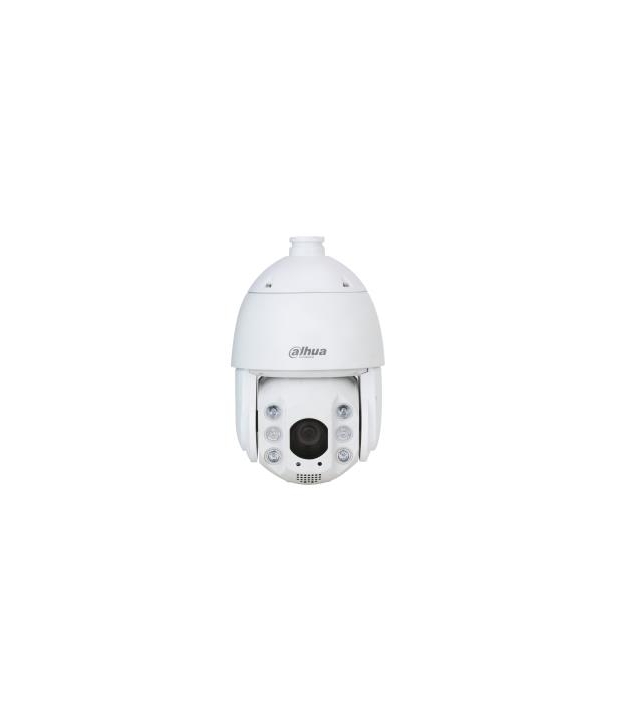

NET CAMERA 8MP PTZ DOME/SD6C3825GA-HNR-A-PV1 DAHUA
MPN:
SD6C3825GA-HNR-A-PV1
Brand:
DAHUA
Connection Type:
Wired
Night Vision:
Yes
Resolution:
3840 x 2160 pixels
€1,280.95
/ incl. VAT
€1,058.64
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
1 in Stock
Short description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
- 1/1.8 8Megapixel STARVIS™ CMOS
- 25Ă— optical zoom
- Starlight technology
- Max. 25/30 fps@8M
- IR distance up to 150 m
- Auto-tracking 3.0
- Perimeter protection
- Face detection
- SMD 4.0
- Full-color illuminator; red and blue warning light
- IP66
- PoE (802.3at)
Specifications
Images
Image Stabilizer
Yes
General
Model
SD6C3825GA-HNR-A-PV1
Type
IP security camera
Bit Rate Range
51 - 12288 Kbit/s
Cloud Managed
Yes
Digital Zoom
16 x
Focus
Manual
Number Privacy Masking Areas
24
Streaming Method
Multicast/Unicast
Memory
RAM
1024 MB
Storage
Built-in HDD
No
ROM Capacity
4096 MB
Connectivity
Bluetooth
No
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
Yes
Wi-Fi
No
LAN Speed
Fast Ethernet
Power
Max Power Draw
23 W
Typical Power Draw
Typical board power (W) is the power draw under normal gaming load. Use it to estimate electricity cost and to size cooling. Peak transient spikes can be 20-30 percent higher, which is why PSU recommendations leave a buffer.
13 W
Power Source
DC, PoE
Camera
Shutter Speed
Exposure time range. Faster shutter reduces motion blur in bright scenes.
1/1 - 1/30000 s
Frame Rate
Frames per second (fps). 30 fps = standard; 60 fps = smoother video.
30 fps
Min. Illumination
Minimum lux for clear image. Lower = better in dark environments. 0 lux = IR only.
0.0001 lx
Sensor Size
Larger sensor = better low-light performance. Full-frame > APS-C > MFT > 1/2.8".
1/1.8
Sensor Type
CMOS: most cameras today. CCD: older, higher quality. BSI: better low-light.
CMOS
Video Resolutions
1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/2304 x 1296/2560 x 1440/352 x 240/352 x 288/3840 x 2160/640 x 480 (VGA)/704 x 480/704 x 576
Resolution (MP)
Higher megapixels = more detail. 12MP+ is sufficient for most uses.
8 MP
Wide Dynamic Range (WDR)
Captures detail in both bright and dark areas simultaneously.
Yes
Optical Zoom
Optical zoom uses lens movement (quality preserved). Digital zoom crops (loses quality).
Yes
Backlight Compensation (BLC)
BLC prevents silhouetting when subject is backlit.
Yes
Bitrate Control
VBR: variable bitrate (better quality). CBR: constant (predictable bandwidth).
Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Min Focusing Distance
2 m
Focal Length
5.4 - 135 mm
Highlight Compensation (HLC)
HLC reduces overexposed bright spots (headlights, floodlights) in the frame.
Yes
Field of View (Diagonal)
66.6 - 4 °
Field of View (Horizontal)
61.6 - 3.6 °
Field of View (Vertical)
35.7 - 2 °
Max Aperture (f-number)
Lower f-number = wider aperture = better low-light performance.
1.6
Night Vision
Yes
Noise Reduction
Yes
Noise Reduction Technology
3D DNR: better quality, reduces temporal noise. 2D DNR: lower latency.
2D noise reduction, 3D noise reduction
White Balance
Corrects colour cast under different lighting. ATW = auto-tracking white balance.
Auto/Indoor/Manual/Natural/Outdoor/Sodium lamp/Street lamp
Video Streaming
Yes
Camera Shutter Type
Electronic
Minimum Aperture Number
4
Optical Zoom
25 x
Networking
Network Protocols
FTP;RTMP;IPv6;Bonjour;IPv4;DNS;RTCP;PPPoE;NTP;R TP;802.1x;HTTPS;SNMP;TCP/IP;DDNS;UPnP;NFS;ICMP; UDP;IGMP;HTTP;SSL;DHCP;SMTP;Qos;RTSP;ARP
Features
Auto Focus
Yes
Auto Patrol Mode
Yes
Auto Tracking
Yes
Number of Cameras
1
PTZ Modes
Pan-Tilt-Zoom presets and auto-tracking modes.
5 Pattern/5 Scan/8 Tour/Preset point
Video Compression
H.265 (HEVC): half the storage of H.264 at same quality. MJPEG: high CPU usage.
H.264/H.264+/H.264B/H.264H/H.265/H.265+/M-JPEG
Motion Detection
Yes
Alarm Input Channels
Dry-contact inputs for external sensors (PIR, door contacts, smoke detectors).
1
Alarm Output Channels
Relay outputs to trigger external devices (sirens, lights, door locks).
1
ROI Encoding
Region of Interest . allocates more bitrate to key areas for sharper detail there.
Yes
Gain Control Type
Auto/Manual
Ptz Control
Yes
Physical
Weight
4.600000
Form Factor
Dome
IP Rating
IP66: dust-tight + jets. IP67: waterproof 1m/30min. IP68: continuous immersion.
IP66
Mounting Type
Ceiling/wall
Operating Humidity
0 - 95 %
Installation Type
Ceiling: dome cameras. Wall: bullet/box cameras. Pole: outdoor cameras.
Outdoor
Colour
White
Height
325.3 mm
Depth
202 mm
Width
202 mm
Additional
Certifications
CE-EMC: EN 55032; EN 61000-3-3; EN 61000-3-2; EN, 50130-4; EN 55035, CE-LVD: EN 62368-1, FCC: 47 CFR FCC Part15, Subpart B, NSI C63.4
Warranty
36
SKU
1449595
EAN
6923172570475
