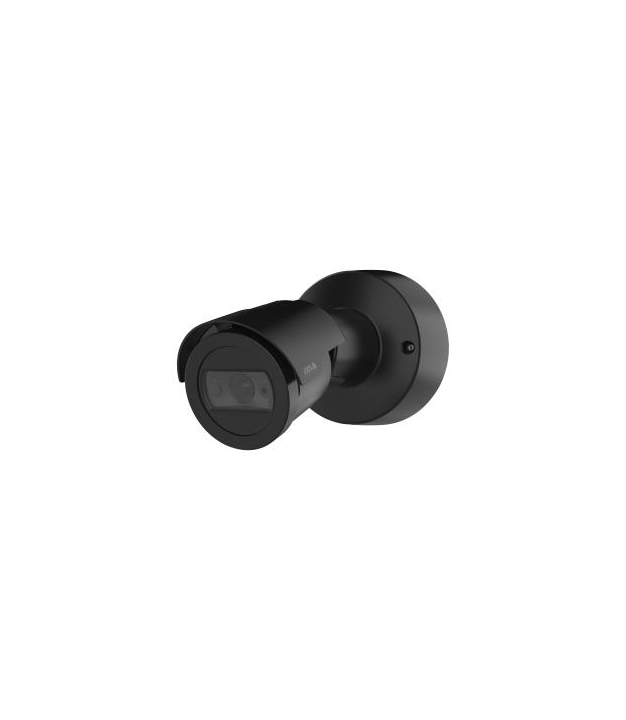

NET CAMERA M2036-LE IR BULLET/BLACK 02134-001 AXIS
MPN:
02134-001
Brand:
AXIS
Connection Type:
Wired
Night Vision:
Yes
Resolution:
2304 x 1728 pixels
€869.39
/ incl. VAT
€718.50
/ excl. VAT
/ incl. VAT
/ excl. VAT
This product is currently out of stock.
Subscribe to back in stock notification.
Short description
Return Policy
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
Ideal for tough environments and rough weather, AXIS M2036-LE delivers Quad HD 1440p/4 MP. With a deep learning processing unit, it enables unique opportunities for analytics based on deep learning on the edge. AXIS Object Analytics offers detection and classification of humans, vehicles, and types of vehicles. And Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. This IK08-rated camera offers flexible and cost-efficient installation including support for PoE. Edge-to-edge technology allows for smart pairing with Axis Speakers. Plus, a spacious, sealed back box ensures secure cable management.
- Analytics with deep learning; Compact, lightweight design; Outdoor-ready with IR illumination; Quad HD 1440p/4 MP; Zipstream supporting H.264/H.265
Specifications
Images
Image Stabilizer
Yes
General
Model
M2036-LE
Type
IP security camera
Video Intelligence Analytic
Yes
Memory
RAM
RAM (Random Access Memory) is the system's working memory where active applications and the operating system live. More RAM means smoother multitasking and bigger files can be edited without swapping to disk. 16 GB is the comfortable minimum for modern sy
1024 MB
Storage
Compatible Card Types
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Built-in HDD
No
Flash Memory
512 MB
Connectivity
Bluetooth
No
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
Yes
Wi-Fi
No
Card Reader
Yes
LAN Ports
1
Battery & Security
Password Protection
Yes
Power
Max Power Draw
12.95 W
Typical Power Draw
Typical board power (W) is the power draw under normal gaming load. Use it to estimate electricity cost and to size cooling. Peak transient spikes can be 20-30 percent higher, which is why PSU recommendations leave a buffer.
5 W
Power Source
PoE
Software
Interface Languages
English/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
Number of Languages
12
Camera
Shutter Speed
Exposure time range. Faster shutter reduces motion blur in bright scenes.
1/38500 - 1/5 s
Frame Rate
Frames per second (fps). 30 fps = standard; 60 fps = smoother video.
30 fps
IR Cut Filter
Mechanically removes IR filter at night for true night vision.
Yes
LED Type
IR
Min. Illumination
Minimum lux for clear image. Lower = better in dark environments. 0 lux = IR only.
0 lx
Sensor Size
Larger sensor = better low-light performance. Full-frame > APS-C > MFT > 1/2.8".
1/2.7
Progressive Scan
Captures full frames vs interlaced (alternating lines). Reduces motion blur.
Yes
Sensor Type
CMOS: most cameras today. CCD: older, higher quality. BSI: better low-light.
CMOS
Video Resolutions
2304 x 1728/2668 x 1512
Supported Video Modes
1440p
Resolution (MP)
Higher megapixels = more detail. 12MP+ is sufficient for most uses.
4 MP
Video Recording
Yes
Wide Dynamic Range (WDR)
Captures detail in both bright and dark areas simultaneously.
Yes
Bitrate Control
VBR: variable bitrate (better quality). CBR: constant (predictable bandwidth).
Variable Bit Rate (VBR)
Min Focusing Distance
0.5 m
Field of View (Horizontal)
130 °
Field of View (Vertical)
81 °
Max Aperture (f-number)
Lower f-number = wider aperture = better low-light performance.
2.1
Night Vision
Yes
IR Night Vision Range
20 m
White Balance
Corrects colour cast under different lighting. ATW = auto-tracking white balance.
Auto
IR Wavelength
850nm: visible red glow. 940nm: invisible/covert. 850nm gives better range.
855 nm
Video Streaming
Yes
Fixed Focal Length
2.4 mm
Networking
IP Address Filtering
Yes
Networking Standards
IEEE 802.3/IEEE 802.3af/IEEE 802.3at
QoS Support
Quality of Service prioritises camera stream traffic on the network.
Yes
Network Protocols
IPv4, IPv6 USGv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SOCKS, SSH, LLDP, MQTT v3.1.1
Features
Tampering Alarm
Yes
Alert Notifications
E-mail
HTTPS Encryption
Yes
Number of Cameras
1
Privacy Masking
Blocks specific zones from being recorded to protect privacy.
Yes
PTZ Modes
Pan-Tilt-Zoom presets and auto-tracking modes.
Digital PTZ
Security Protocols
802.1x RADIUS/EAP-TLS/HTTPS/SSH
Text Overlay (OSD)
Overlay date, time, or custom text on the video stream.
Yes
Video Compression
H.265 (HEVC): half the storage of H.264 at same quality. MJPEG: high CPU usage.
H.264/H.265/M-JPEG
Motion Detection
Yes
Physical
Weight
0.491000
Form Factor
Bullet
IP Rating
IP66: dust-tight + jets. IP67: waterproof 1m/30min. IP68: continuous immersion.
IP66, IP67
IK Rating
Impact protection rating IK00–IK10. IK10 = withstands 20J impact.
IK08
Length
170 mm
Mounting Type
Ceiling/wall
Operating Humidity
10 - 100 %
Installation Type
Ceiling: dome cameras. Wall: bullet/box cameras. Pole: outdoor cameras.
Indoor & outdoor
Colour
Black
Additional
Certifications
CISPR 24, CISPR 35, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A, IEC/EN 62368-1, IEC 62471, IS 13252, IEC 60068-2-X, IEC/EN 60
Warranty
60
SKU
1388972
EAN
7331021073074
