NET CAMERA M4216-LV DOME/02113-001 AXIS
MPN:
02113-001
Brand:
AXIS
Connection Type:
Wired
Night Vision:
Yes
Resolution:
2304 x 1728 pixels
€1,032.74
/ incl. VAT
€853.50
/ excl. VAT
/ incl. VAT
/ excl. VAT
This product is currently out of stock.
Subscribe to back in stock notification.
Short description
Return Policy
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description

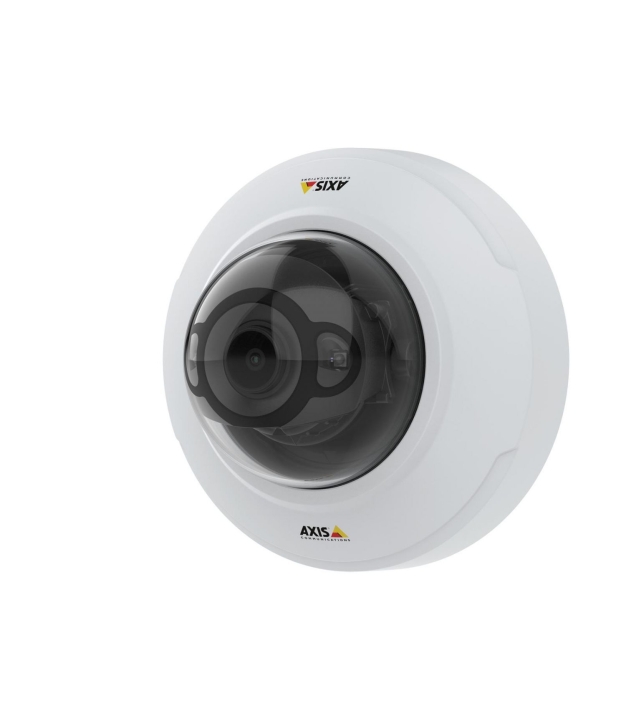

The compact and discreet AXIS M4216-LV delivers great images, day and night. With a deep learning processing unit (DLPU), it’s possible to take advantage of intelligent applications based on deep learning on the edge. Furthermore, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. Designed to blend seamlessly into any environment, the camera can be repainted and offers a wide range of accessories for discreet monitoring. It features an HDMI port and offers the flexibility to add audio and I/O connectivity using accessories.
- Great image quality in 4 MP; HDMI output for public viewing monitors; Support for analytics with deep learning; Varifocal lens with remote zoom and focus; WDR, Lightfinder and OptimizedIR
Specifications
General
Model
M4216-LV
Type
IP security camera
Memory
RAM
RAM (Random Access Memory) is the system's working memory where active applications and the operating system live. More RAM means smoother multitasking and bigger files can be edited without swapping to disk. 16 GB is the comfortable minimum for modern sy
1024 MB
Storage
Compatible Card Types
MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD
Built-in HDD
No
Built-in SSD
No
Flash Memory
512 MB
Connectivity
Bluetooth
No
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
Yes
Wi-Fi
No
LAN Ports
1
HDMI Ports
1
Battery & Security
Password Protection
Yes
Power
Max Power Draw
9.7 W
Typical Power Draw
Typical board power (W) is the power draw under normal gaming load. Use it to estimate electricity cost and to size cooling. Peak transient spikes can be 20-30 percent higher, which is why PSU recommendations leave a buffer.
5 W
Power Source
PoE
Software
Interface Languages
English/French/German/Italian/Japanese/Korean/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
Number of Languages
11
Camera
Shutter Speed
Exposure time range. Faster shutter reduces motion blur in bright scenes.
1/37500 - 1/5 s
Flip / Mirror Image
Flip: vertical. Mirror: horizontal. For cameras mounted upside-down.
Yes
Frame Rate
Frames per second (fps). 30 fps = standard; 60 fps = smoother video.
30 fps
IR Cut Filter
Mechanically removes IR filter at night for true night vision.
Yes
LED Type
IR
Min. Illumination
Minimum lux for clear image. Lower = better in dark environments. 0 lux = IR only.
0.18 lx
Sensor Size
Larger sensor = better low-light performance. Full-frame > APS-C > MFT > 1/2.8".
1/2.7
Progressive Scan
Captures full frames vs interlaced (alternating lines). Reduces motion blur.
Yes
Sensor Type
CMOS: most cameras today. CCD: older, higher quality. BSI: better low-light.
CMOS
Supported Video Modes
1080p/720p
Resolution (MP)
Higher megapixels = more detail. 12MP+ is sufficient for most uses.
4 MP
Wide Dynamic Range (WDR)
Captures detail in both bright and dark areas simultaneously.
Yes
Optical Zoom
Optical zoom uses lens movement (quality preserved). Digital zoom crops (loses quality).
Yes
Focal Length
3 - 6 mm
Night Vision
Yes
IR Night Vision Range
20 m
PTZ Pan Control
Yes
PTZ Tilt Control
Yes
IR Wavelength
850nm: visible red glow. 940nm: invisible/covert. 850nm gives better range.
855 nm
Pan Range
-180 - 180 °
Video Streaming
Yes
Networking
IP Address Filtering
Yes
Networking Standards
IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
QoS Support
Quality of Service prioritises camera stream traffic on the network.
Yes
Network Protocols
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb, TLSb, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, HDMI, LLDP
Features
Tampering Alarm
Yes
Alert Notifications
E-mail, Text alert message
HTTPS Encryption
Yes
Number of Cameras
1
Privacy Masking
Blocks specific zones from being recorded to protect privacy.
Yes
PTZ Modes
Pan-Tilt-Zoom presets and auto-tracking modes.
Digital PTZ
Security Protocols
EAP-TLS
Text Overlay (OSD)
Overlay date, time, or custom text on the video stream.
Yes
Video Compression
H.265 (HEVC): half the storage of H.264 at same quality. MJPEG: high CPU usage.
H.264/H.265
Motion Detection
Yes
Compatibility
Windows Support
Yes
Physical
Weight
0.375000
Form Factor
Dome
IP Rating
IP66: dust-tight + jets. IP67: waterproof 1m/30min. IP68: continuous immersion.
IP42
IK Rating
Impact protection rating IK00–IK10. IK10 = withstands 20J impact.
IK08
Mounting Type
Ceiling/wall
Operating Humidity
10 - 85 %
Installation Type
Ceiling: dome cameras. Wall: bullet/box cameras. Pole: outdoor cameras.
Indoor
Colour
White
Height
71 mm
Tilt Adjustment
-40 - 65 °
Additional
Warranty
60
SKU
1363245
EAN
7331021072817
