Special offer
NET CAMERA P3277-LVE 5MP DOME/WHITE 03153-001 AXIS
MPN:
03153-001
Brand:
AXIS
Connection Type:
Wired
Night Vision:
Yes
Resolution:
2592 x 1944 pixels
€1,501.37
/ incl. VAT
€1,240.80
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
1 in Stock
Short description
Return Policy
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description

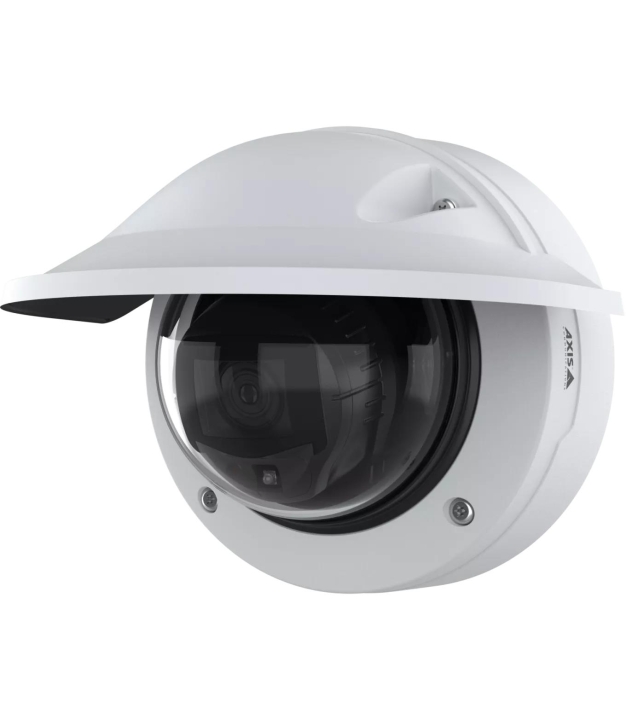

AXIS P3277-LVE Dome Camera
Built on ARTPEC-9, this robust AI-powered dome camera with support for AV1 codec delivers excellent 5 MP image quality in any light conditions. It offers accelerated performance to run impressive analytics applications on the edge.
Excellent image quality
AXIS P3277-LVE offers excellent image quality and forensic details in 5 MP under any light conditions. Thanks to Lightfinder 2.0 and Forensic WDR, it ensures true colors and great detail in near darkness or challenging light. And OptimizedIR enables surveillance in pitch darkness without the need for extra lighting. Axis Zipstream with support for AV1, H.264, and H.265 significantly reduces bandwidth and storage requirements without compromising image quality. Furthermore, this dome camera includes a built-in audio jack so it’s possible to connect a microphone for audio support.
Powerful analytics
Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics to detect, classify, track, and count humans, vehicles, and types of vehicles. Now combined with ARTPEC 9, this application offers enhanced performance with greater accuracy. In addition, AXIS Image Health Analytics comes preinstalled, so you’ll be notified if your image is blocked, degraded, under-exposed, or redirected. And, with AXIS Live Privacy Shield, it’s easy to remotely monitor activities while protecting privacy.
Robust with strong security
This robust, IK10-, IP66-, and NEMA 4X-rated outdoor-ready camera is both vandal- and impact-resistant. It features a built-in weathershield and has an operating temperature range from -40°C to 50 °C (-40°F to 122°F). And a built-in intrusion switch can detect tampering. Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. It also offers secure key storage with FIPS 140-3 Level 3 certified secure cryptographic key storage and operations. What’s more, this dome camera is easy to install, maintain, and operate.
- Excellent image quality in 5 MP
- Next-generation AI-powered analytics
- Lightfinder 2.0 and Forensic WDR
- Audio and I/O connectivity
- Built-in cybersecurity with Axis Edge Vault
Specifications
Images
Image Quality Adjustment
Brightness/Contrast/Saturation/Sharpness
General
Model
P3277-LVE
Type
IP security camera
Angle Rotation
190 °
Certifications
CE/cUL/EAC/Electromagnetic Compatibility (EMC)/Federal Communications Commission (FCC)/ICES/KC/RCM/REACH/RoHS/Trade Agreements Act (TAA)/UKCA/UL/VCCI
Detect Distance Tele
170 m
Detect Distance Wide
60 m
Fog Proof
Yes
Human And Vehicle Targets Classification
Yes
Identify Distance Tele
17 m
Identify Distance Wide
6 m
Observe Distance Tele
67 m
Observe Distance Wide
24 m
Recognize Distance Tele
34 m
Recognize Distance Wide
12 m
Streaming Method
Multicast
Memory
RAM
RAM (Random Access Memory) is the system's working memory where active applications and the operating system live. More RAM means smoother multitasking and bigger files can be edited without swapping to disk. 16 GB is the comfortable minimum for modern sy
2000 MB
Storage
Compatible Card Types
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash Memory
8 MB
Display
LED Indicators
Yes
Connectivity
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
Yes
LAN Speed
Fast Ethernet
Audio
Audio System
2-way
Audio Formats
AAC-LC/ADPCM/G.711/G.726/LPCM/OPUS/PCM
Audio Detection
Yes
Audio System Full Duplex
Yes
Microphone Input
Yes
Power
Max Power Draw
12.6 W
Typical Power Draw
Typical board power (W) is the power draw under normal gaming load. Use it to estimate electricity cost and to size cooling. Peak transient spikes can be 20-30 percent higher, which is why PSU recommendations leave a buffer.
4.7 W
Power Source
PoE
Camera
Shutter Speed
Exposure time range. Faster shutter reduces motion blur in bright scenes.
1/30500 - 2 s
Flip / Mirror Image
Flip: vertical. Mirror: horizontal. For cameras mounted upside-down.
Yes
Frame Rate
Frames per second (fps). 30 fps = standard; 60 fps = smoother video.
30 fps
IR Cut Filter
Mechanically removes IR filter at night for true night vision.
Yes
LED Type
IR
Min. Illumination
Minimum lux for clear image. Lower = better in dark environments. 0 lux = IR only.
0.03 lx
Sensor Size
Larger sensor = better low-light performance. Full-frame > APS-C > MFT > 1/2.8".
1/2.8
Progressive Scan
Captures full frames vs interlaced (alternating lines). Reduces motion blur.
Yes
Sensor Type
CMOS: most cameras today. CCD: older, higher quality. BSI: better low-light.
CMOS
Video Resolutions
1920 x 1200 (WUXGA)/2560 x 1440/2592 x 1944
Resolution (MP)
Higher megapixels = more detail. 12MP+ is sufficient for most uses.
5 MP
Wide Dynamic Range (WDR)
Captures detail in both bright and dark areas simultaneously.
Yes
Bitrate Control
VBR: variable bitrate (better quality). CBR: constant (predictable bandwidth).
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Min Focusing Distance
1 m
Focal Length
3 - 8.5 mm
Field of View (Horizontal)
104 °
Field of View (Vertical)
76 °
Max Aperture (f-number)
Lower f-number = wider aperture = better low-light performance.
2.58
Night Vision
Yes
IR Night Vision Range
40 m
Noise Reduction Technology
3D DNR: better quality, reduces temporal noise. 2D DNR: lower latency.
2D noise reduction, 3D noise reduction
Signal-to-Noise Ratio
Higher SNR (dB) = cleaner image with less grain/noise. 50+ dB is good.
55 dB
Video Formats
AV1/AVC/H.264/H.265/HEVC/M-JPEG/MPEG4
PTZ Pan Control
Yes
PTZ Tilt Control
Yes
IR Wavelength
850nm: visible red glow. 940nm: invisible/covert. 850nm gives better range.
850 nm
Pan Range
-190 - 190 °
Video Streaming
Yes
Lens Diameter
10 mm
Minimum Aperture Number
1.38
Networking
Networking Standards
IEEE 802.1AE/IEEE 802.1x/IEEE 802.3af
QoS Support
Quality of Service prioritises camera stream traffic on the network.
Yes
Network Protocols
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/ 2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6
Features
Protection Features
Impact resistant/Vandal proof
Auto Focus
Yes
Auto Tracking
Yes
Number of Cameras
1
Security Protocols
256-bit AES-XTS/EAP-TLS/MSCHAPv2/PEAP
Text Overlay (OSD)
Overlay date, time, or custom text on the video stream.
Yes
AI / Smart Features
AI analytics: face recognition, line crossing, intrusion detection, vehicle detection.
Line crossing detection/Moving object
Gain Control Type
Auto
People Counting Function
Yes
Privacy Protection
Yes
Ptz Control
Yes
Tour Recording
Yes
Physical
Weight
0.850000
Form Factor
Dome
IP Rating
IP66: dust-tight + jets. IP67: waterproof 1m/30min. IP68: continuous immersion.
IP66
IK Rating
Impact protection rating IK00–IK10. IK10 = withstands 20J impact.
IK10
Mounting Type
Ceiling/wall
Operating Humidity
10 - 100 %
Installation Type
Ceiling: dome cameras. Wall: bullet/box cameras. Pole: outdoor cameras.
Indoor & outdoor
Colour
Black, White
Weatherproof
Yes
Height
107 mm
Tilt Adjustment
-50 - 80 °
Depth
149 mm
Width
149 mm
Additional
Warranty
60
SKU
1447994
EAN
7331021089938
