NET CAMERA Q1800-LE/03107-001 AXIS
MPN:
03107-001
Brand:
AXIS
Connection Type:
Wired
Night Vision:
Yes
Resolution:
1920 x 1080 pixels
€2,445.17
/ incl. VAT
€2,020.80
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
1 in Stock
Short description
Return Policy
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description

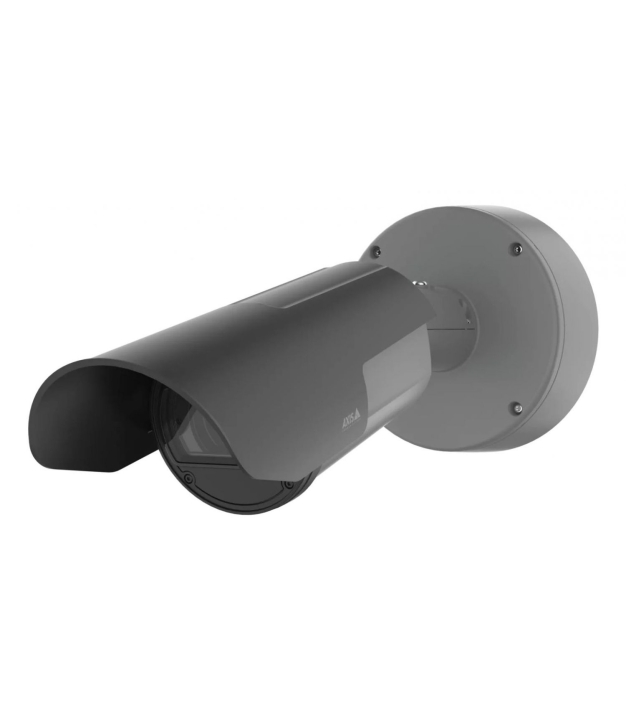

This purpose-tuned camera is ideal for traffic surveillance and smart city initiatives - enabling you to capture sharp license plate images 24/7. Made for 3rd party LPR software, it can help law enforcement agencies improve road safety and gather valuable intelligence.
Extraordinary accuracy 24/7
Designed to capture license plates with exceptional clarity and sharpness, this purpose-tuned camera comes preconfigured with advanced algorithms focusing solely on license plates. This ensures the required pixel density for accurate identification - with practically no setup required! It can capture plates at speeds up to 250 km/h (155 mph) in single lanes and from distances of up to 100 m (328 ft) during daylight. In pitch darkness, the camera captures license plate images at up to 50 m (164 ft), and up to 100 m (328 ft) with the optional accessory AXIS T90D20 IR-LED Illuminator delivering unmatched, reliable performance day and night.
Do it your way
AXIS Q1800-LE is fully compatible with edge- or server-based LPR software from any leading third-party vendor, giving you the freedom to choose the license plate recognition analytics that best suit your needs. Built on the Axis open platform, it integrates seamlessly with most third-party video management software (VMS) and supports a wide range of third-party applications and analytics. Plus, with various installation accessories available, this camera offers flexible mounting options, making it an ideal solution for any deployment.
Ready for anything
This purpose-tuned camera ensures accurate license plate capture 24/7 with minimal setup. Robust and weatherproof, it ensures durability in the toughest conditions. It includes an extra-long weathershield that can withstand hurricane-force winds of up to 60 m/s (134 mph) and resist harsh weather impacts (IK10-rated casing, IK08-rated front glass, and IP66- and NEMA 4X-rated). Plus, electronic image stabilization ensures stable images in situations where the camera is subject to vibrations. What’s more, the discreet gray color housing and black weathershield blend right into any traffic environment.
- LPR camera for 3rd party software
- Purpose-tuned for license plate recognition
- Capture license plates up to 250 km/h (155 mph)
- Capture range of up to 100 m (328 ft)
- Robust design withstands tough weather
Specifications
Images
Image Quality Adjustment
Brightness/Contrast/Saturation/Sharpness
Image Stabilizer
Yes
General
Model
03107-001
Type
IP security camera
Angle Rotation
270 °
Certifications
Electromagnetic Compatibility (EMC)/Trade Agreements Act (TAA)
Detect Distance Tele
1884.2 m
Detect Distance Wide
96.7 m
Identify Distance Tele
188.4 m
Identify Distance Wide
9.7 m
Observe Distance Tele
747.7 m
Observe Distance Wide
38.4 m
Preset Points
Yes
Recognize Distance Tele
376.8 m
Recognize Distance Wide
19.3 m
Sample Rate
48 kHz
Streaming Method
Multicast
Memory
RAM
RAM (Random Access Memory) is the system's working memory where active applications and the operating system live. More RAM means smoother multitasking and bigger files can be edited without swapping to disk. 16 GB is the comfortable minimum for modern sy
2048 MB
Storage
Compatible Card Types
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash Memory
8192 MB
Display
Camera Pixel Size
2.9 µm
Horizontal Field Of View
38 - 2.3 °
Connectivity
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
Yes
Card Reader
Yes
LAN Ports
1
DC-In Jack
Yes
Battery & Security
Password Protection
Yes
Audio
Audio System
2-way
Audio Formats
AAC-LC/ADPCM/LPCM/OPUS/PCM
Audio Detection
Yes
Built-in Speakers
Yes
Microphone Input
Yes
Power
Max Power Draw
29 W
Typical Power Draw
Typical board power (W) is the power draw under normal gaming load. Use it to estimate electricity cost and to size cooling. Peak transient spikes can be 20-30 percent higher, which is why PSU recommendations leave a buffer.
11 W
Power Source
PoE
Camera
Shutter Speed
Exposure time range. Faster shutter reduces motion blur in bright scenes.
1/111000 - 2 s
Frame Rate
Frames per second (fps). 30 fps = standard; 60 fps = smoother video.
90 fps
IR Cut Filter
Mechanically removes IR filter at night for true night vision.
Yes
LED Type
IR
Min. Illumination
Minimum lux for clear image. Lower = better in dark environments. 0 lux = IR only.
0.06 lx
Sensor Size
Larger sensor = better low-light performance. Full-frame > APS-C > MFT > 1/2.8".
1/2.8
Pixel Counter
Yes
Sensor Type
CMOS: most cameras today. CCD: older, higher quality. BSI: better low-light.
CMOS;CMOS
Video Resolutions
1400 x 1050 (SXGA+)/160 x 120/1920 x 1080 (HD 1080)/320 x 180
Supported Video Modes
1080p
Wide Dynamic Range (WDR)
Captures detail in both bright and dark areas simultaneously.
Yes
Bitrate Control
VBR: variable bitrate (better quality). CBR: constant (predictable bandwidth).
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Min Focusing Distance
1.2 m
Focal Length
7 - 138 mm
Identification Distance
1.2 m
Field of View (Horizontal)
22 - 1.3 °
Night Vision
Yes
IR Night Vision Range
100 m
Noise Reduction
Yes
Noise Reduction Technology
3D DNR: better quality, reduces temporal noise. 2D DNR: lower latency.
2D noise reduction, 3D noise reduction
Signal-to-Noise Ratio
Higher SNR (dB) = cleaner image with less grain/noise. 50+ dB is good.
55 dB;55 dB
Video Formats
AVC/H.264/H.265/M-JPEG
IR Wavelength
850nm: visible red glow. 940nm: invisible/covert. 850nm gives better range.
850 nm
Pan Range
-180 - 180 °
Video Streaming
Yes
B&W Night Vision Range
50 m
Networking
Digest Authentication
Yes
Networking Standards
IEEE 802.3af/IEEE 802.3at
Network Protocols
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS3, HTTP/ 2, TLS3, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH
Features
Protection Features
Impact resistant/Vandal proof/Weather resistant
Auto Focus
Yes
Tampering Alarm
Yes
Number of Cameras
1
PTZ Modes
Pan-Tilt-Zoom presets and auto-tracking modes.
Digital PTZ
Security Protocols
HTTPS
Text Overlay (OSD)
Overlay date, time, or custom text on the video stream.
Yes
Motion Detection
Yes
AI / Smart Features
AI analytics: face recognition, line crossing, intrusion detection, vehicle detection.
Human detection/Line crossing detection/Moving object/Vehicle detection
Ptz Control
Yes
Remote Operated
Yes
Physical
Weight
3.200000
Form Factor
Bullet
IP Rating
IP66: dust-tight + jets. IP67: waterproof 1m/30min. IP68: continuous immersion.
IP66
IK Rating
Impact protection rating IK00–IK10. IK10 = withstands 20J impact.
IK08, IK10
Mounting Type
Wall
Operating Humidity
10 - 100 %
Installation Type
Ceiling: dome cameras. Wall: bullet/box cameras. Pole: outdoor cameras.
Outdoor
Colour
Black
Height
183 mm
Tilt Adjustment
0 - 90 °
Depth
464 mm
Width
183 mm
Additional
Certifications
UL/cUL, BIS, UKCA, CE, KC, VCCI, RCM
Warranty
60
SKU
1434580
EAN
7331021089334
