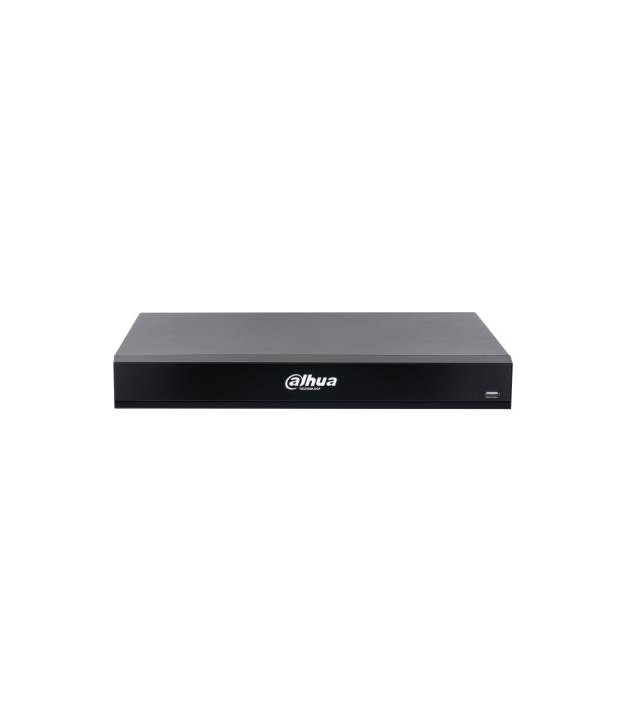

NET VIDEO RECORDER 16CH/NVR5216-XI DAHUA
MPN:
NVR5216-XI
Brand:
DAHUA
€1,485.40
/ incl. VAT
€1,227.60
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
1 in Stock
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
NVR5216-XI
16CH 1U 2HDDs WizMind Network Video Recorder
> Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats.
> Max. decoding capability: 32 × 1080p@30 fps
> Max. 512/512/512 Mbps incoming/recording/outgoing bandwidth.
> Supports IP cameras with a resolution up to 32 MP.
> Supports AcuPick with up to 16 channels.
> AI by Recorder supports 8-channel face detection and recognition, up to 20 face databases and 200,000 face images; 8-channel metadata; 16-channel perimeter protection; 16-channel SMD Plus.
> AI by Camera supports face detection and recognition, perimeter protection, SMD Plus, metadata, ANPR, stereo analysis, heat map, and people counting.
> Supports N+M cluster, ISCSI.
> Supports EPTZ, and one-click arming and disarming.
Specifications
General
Model
NVR5216-XI
Certifications
FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032: 2015+A1: 2020; EN IEC 61000-3-2: 2019+A1: 2021; EN 61000-3-3: 2013+A1: 2019+A2: 2021; EN 55035: 2017+A11: 2020; EN 50130-4: 2011+A1: 2014 CE-LVD: EN 62368-1: 2014
Desktop Pedestal
Yes
Rack
Yes
Rs232
1
Rs 485
1
15-pin D-Sub
1
Processor
Built-in Processor
Yes
Storage
SATA
Yes
Connectivity
LAN Ports
1
HDMI Ports
1
USB 2.0 Ports (Rear)
1
HDMI
1
USB 2.0 Ports
1
USB 3.2 Gen 1 Type-A Ports
1
Audio
Audio Formats
G.711 A-law, G.711 μ-law, G.726, PCM
Audio In
1
Audio Out
1
Power
Typical Power Draw
Typical board power (W) is the power draw under normal gaming load. Use it to estimate electricity cost and to size cooling. Peak transient spikes can be 20-30 percent higher, which is why PSU recommendations leave a buffer.
10 W
Power Supply Requirements
12 VDC, 4 A
Camera
Channels
16
Features
Alarm In
1
Alarm Out
1
Motion Detection
Yes
Operating System
Operating System
Embedded LINUX
Compatibility
HDD Bays
2
Physical
Depth
283 mm
Height
56 mm
Width
375 mm
Colour
Black
Dimensions
375.0 × 282.9 x 56.0 mm
Operating Temperature Range
-10 - 65 °C
Net Weight
1.56 kg
Additional
Warranty
36
SKU
1428495
EAN
6923172510143
Networking
Ethernet Data Rates
10, 100, 1000 Mbit/s
