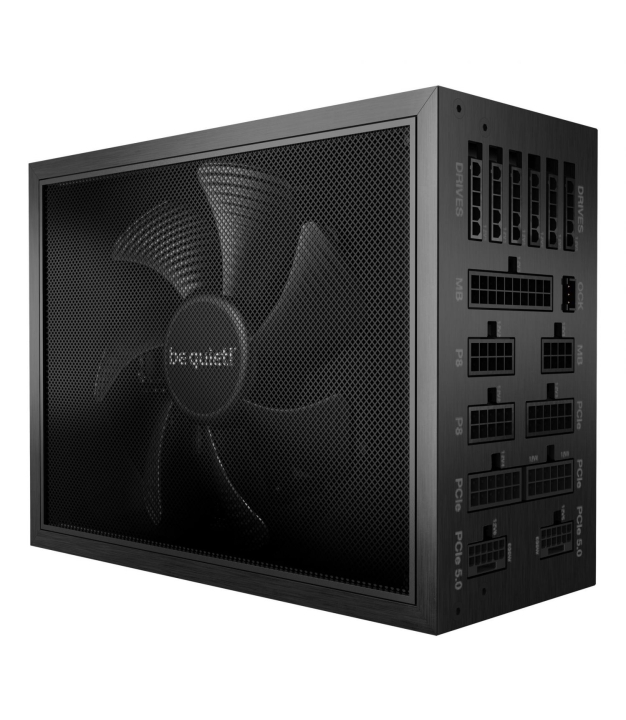

be quiet! Dark Power Pro 13 | 1600W power supply unit 20+4 pin ATX ATX Black
MPN:
BN332
Brand:
BE QUIET
Cable Management:
Fully-Modular
€577.32
/ incl. VAT
€477.12
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
6 in Stock
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
CUTTING EDGE TECHNOLOGIES AND PERFORMANCE
The be quiet! Dark Power Pro 13 1600W offers 80 PLUS® Titanium efficiency and world-class performance due to fully digital control and a frameless fan concept. With the latest PCIe 5.1 compatibility it is predetermined as the ATX 3.1 power supply for your next-gen graphics card.
The be quiet! Dark Power Pro 13 1600W offers 80 PLUS® Titanium efficiency and world-class performance due to fully digital control and a frameless fan concept. With the latest PCIe 5.1 compatibility it is predetermined as the ATX 3.1 power supply for your next-gen graphics card.
Specifications
General
Model Name
Dark Power Pro 13 1600W
Certifications
CCC/CE/Federal Communications Commission (FCC)/RoHS/UKCA/WEEE
Efficiency
94.5 %
Eps Version
2.92
Hold Time
18 ms
Max Output Current 12v1
40 A
Max Output Current 12v2
40 A
Max Output Current 12v3
45 A
Max Output Current 12v4
45 A
Noise Level
dB(A) of operational noise. Under 30 dB is very quiet (whisper level).
31.1 dB
Power
Input Frequency
50 - 60 Hz
Input Voltage
115 - 240 V
12V Rail Power
The 12V rail powers the CPU and GPU; it is the most important rating for gaming builds.
1600 W;6 W
3.3V Rail Power
150 W
5V Rail Power
150 W
5VSB Rail Power
17.5 W
EPS 4+4-pin Connector
Yes
EPS 8-pin CPU Power
Yes
Input Current
15 - 9 A
Max 12V Current
0.5 A
Max 3.3V Current
25 A
Max 5V Current
25 A
Max 5VSB Current
3.5 A
Motherboard Power Connector
20+4 pin ATX
SATA Power Connectors
16
PCIe 6+2-pin Connectors
6
Protection Features
OVP (Over-Voltage Protection), UVP (Under-Voltage Protection), OCP (Over-Current Protection), OPP (Over-Power Protection) and SCP (Short-Circuit Protection) protect against voltage spikes, over-current and short circuits.
Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Total Power Output
1600 W
80 PLUS Rating
80 PLUS efficiency tiers measure how much input wall power is wasted as heat at typical loads. Bronze >=82 percent, Gold >=87 percent, Platinum >=90 percent, Titanium >=94 percent. Higher tiers run cooler and cost less to operate but the PSU itself is mor
80 PLUS Titanium
ATX 20+4-pin Connector
Yes
PCIe Power Connector
Yes
Number Of Pata Power Connectors
5
Peak Power
1700 W
Power Factor
0.99
Processor
Cpu Power Cable Length
700 mm
Cooling
Fan Bearing Type
FDB/Fluid: quieter, longer life. Ball: durable in any orientation. Sleeve: budget.
FDB
Cooling Type
Active
Fan Size
Larger fans (140 mm vs 120 mm) move more air at lower RPM . quieter operation.
135 mm
Fan Count
1 fan(s)
Features
Cable Tie S Included
Yes
Compatibility
ATX Standard
3.1
Physical
Weight
2.440000
Depth
200 mm
Height
86 mm
Width
150 mm
Motherboard Cable Length
600 mm
PCIe Cable Length
600 mm
Molex Cable Length
1050/600/750/900 mm
PSU Form Factor
ATX: standard. SFX: compact for small form-factor builds.
ATX
Colour
Black
SATA Power Cable Length
1050/500/600/750/800/900/950 mm
Shipping Case Height
283 mm
Shipping Case Length
440 mm
Shipping Case Net Weight
14600 g
Shipping Case Width
325 mm
Additional
MTBF
Mean Time Between Failures . statistical lifespan estimate in hours.
100000 h
Sustainability Certs
ENERGY STAR/ErP/Triman
Warranty
24;10 year(s)
SKU
1395831
EAN
4260052189375
