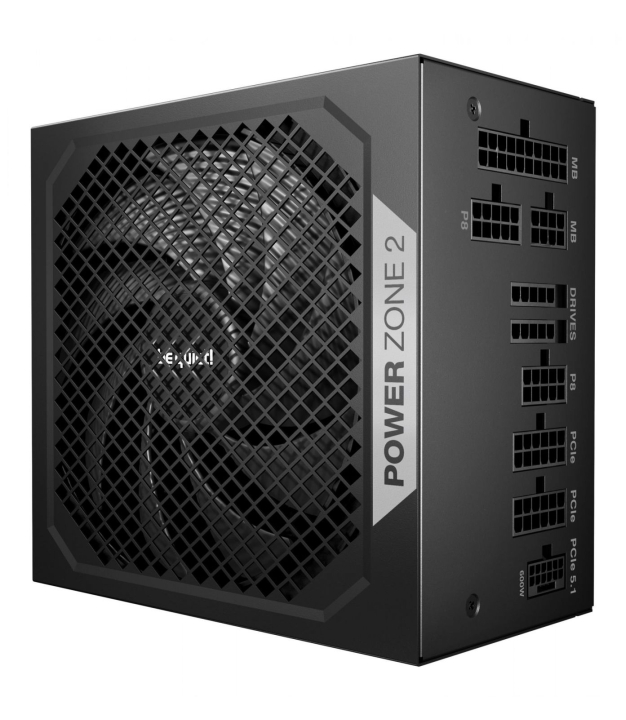

be quiet! POWER ZONE 2 1000W power supply unit 20+4 pin ATX ATX Black

MPN: BP008EU Brand: BE QUIET
Cable Management: Fully-Modular
€281.72 / incl. VAT
€232.83 / excl. VAT
This product is currently out of stock. Subscribe to back in stock notification.
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions? Expert help just one click away Contact Us

Product Description

Exceptional efficiency for Gamers
Power Zone 2 1000W is a power supply with 80 PLUS® Platinum certification and semi-passive zero-RPM cooling for both efficient and quiet gaming sessions.

PLATINUM CERTIFIED
Highly efficient operation

Power Zone 2 1000W is certified with 80 PLUS Platinum and Cybenetics Platinum, resulting in an energy efficiency rating of up to 94.0%. This results in lower power consumption, overall cooler and quieter operation, and many other benefits for your high-end system.

SEMI-PASSIVE ZERO-RPM COOLING
Enjoy the silence

A large Pure Wings 3 140mm fan is keeping Power Zone 2 1000W cool. While under low load, the fan turns off completely until its services are needed again for more demanding operations. This post-ventilation requires a short cooldown period of 2-5 minutes to avoid frequent and annoying starts and stops of the fan. Combined with the large fan for active cooling, this power supply is exceptionally silent in all load scenarios.

PURE WINGS 3 FAN
Specially designed for Power Zone 2

No Power Supply is like the other. Hence, we have altered aspects of our renowned Pure Wings 3 140mm fan to make it the perfect match for Power Zone 2 1000W. The fan offers outstanding reliability and makes for a long-lasting companion. Due to its large diameter, the fan cools the interior of the PSU efficiently and quietly.

FUTURE-PROOF YOUR SYSTEM
With 90° angled 12V-2x6 connector in scope of delivery

Power Zone 2 1000W is an ATX 3.1 PSU and comes with both native integration of the 12V-2x6 connector for next-generation PCIe 5.1 graphics cards, and 3 PCIe 6+2-pin connectors for support of current-gen GPUs. A 90° angled 12V-2x6 connector in the scope of delivery leaves no doubt that this PSU is here to stay. All of this makes Power Zone 2 1000W extremely versatile and the perfect choice for powerful systems of today and the ones to come.

THE NEW STANDARD OF POWER
For massive transient loads

Power Zone 2 offers 1000W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Power Zone 2 1000W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.

HIGH-CLASS TECHNOLOGIES
All packed in a stunning design

With its LLC topology, the Power Zone 2 1000W offers best-in-class voltage regulation and efficiency. This makes it perfect for building very quiet systems or upgrading gaming and media creation PCs. The inner values are what everyone cares about most in a power supply but looks cannot be completely ignored. That is why the Power Zone 2 1000W has a distinctive look with a newly designed mesh front. In addition, all cable designations are printed directly on the PSU’s case for a long-lasting impression and an unparalleled look and feel.

Specifications

General
Model Name POWER ZONE 2
Certifications BSMI/CB/CCC/CE/Federal Communications Commission (FCC)/RCM/RoHS/TÜV mark/UKCA/WEEE
Efficiency 92.6 %
Eps Version 2.92
Hold Time 22.7 ms
Manual Languages English/French/German/Polish/Russian/Spanish/Ukrainian
Maximum Input Current 110v 13 A
Maximum Input Current 220v 6.5 A
Noise Level dB(A) of operational noise. Under 30 dB is very quiet (whisper level). 27.2 dB
Number Of 12v Rail S 1
Operating Humidity 0 - 85 %
Power
Input Frequency 50/60 Hz
Input Voltage 100 - 240 V
12V Rail Power The 12V rail powers the CPU and GPU; it is the most important rating for gaming builds. 999.6 W;6 W
3.3V Rail Power 120 W
5V Rail Power 120 W
5VSB Rail Power 15 W
EPS 8-pin CPU Power Yes
Max 12V Current 83.3 A;0.5 A
Max 3.3V Current 20 A
Max 5V Current 20 A
Max 5VSB Current 3 A
Motherboard Power Connector 20+4 pin ATX
SATA Power Connectors 7
PCIe 6+2-pin Connectors 3
Molex Connectors 1
Protection Features OVP (Over-Voltage Protection), UVP (Under-Voltage Protection), OCP (Over-Current Protection), OPP (Over-Power Protection) and SCP (Short-Circuit Protection) protect against voltage spikes, over-current and short circuits. Over current/Over power/Over voltage/Overheating/Short circuit/Surge & inrush/Under voltage
Total Power Output 1000 W
80 PLUS Rating 80 PLUS efficiency tiers measure how much input wall power is wasted as heat at typical loads. Bronze >=82 percent, Gold >=87 percent, Platinum >=90 percent, Titanium >=94 percent. Higher tiers run cooler and cost less to operate but the PSU itself is mor 80 PLUS Platinum
CPU 4+4-pin Connector Yes
PCIe 16-pin Connector 1
Peak Power 1070 W
Power Factor 0.98
Processor
Cpu P4 Connector 4 Pin 1
Cpu Power Cable Length 700 mm
Cooling
Fan Bearing Type FDB/Fluid: quieter, longer life. Ball: durable in any orientation. Sleeve: budget. Rifle
Cooling Type Active
Fan Size Larger fans (140 mm vs 120 mm) move more air at lower RPM . quieter operation. 140 mm
Fan Count 1 fan(s)
Features
Cable Ties Included Yes
Screws Included Yes
Compatibility
ATX Standard 3.1
Physical
Weight 2.820000
Depth 160 mm
Height 86 mm
Width 150 mm
Motherboard Cable Length 600 mm
PCIe Cable Length 600 mm
Molex Cable Length 1000 mm
PSU Form Factor ATX: standard. SFX: compact for small form-factor builds. ATX
Colour Black
SATA Power Cable Length 1000/550/700/850 mm
Shipping Case Gross Weight 19650 g
Shipping Case Height 346 mm
Shipping Case Length 651 mm
Shipping Case Width 282 mm
Additional
MTBF Mean Time Between Failures . statistical lifespan estimate in hours. 100000 h
Sustainability Certs ENERGY STAR/ErP/Triman
Warranty 24
SKU 1435332
EAN 4260052191385
