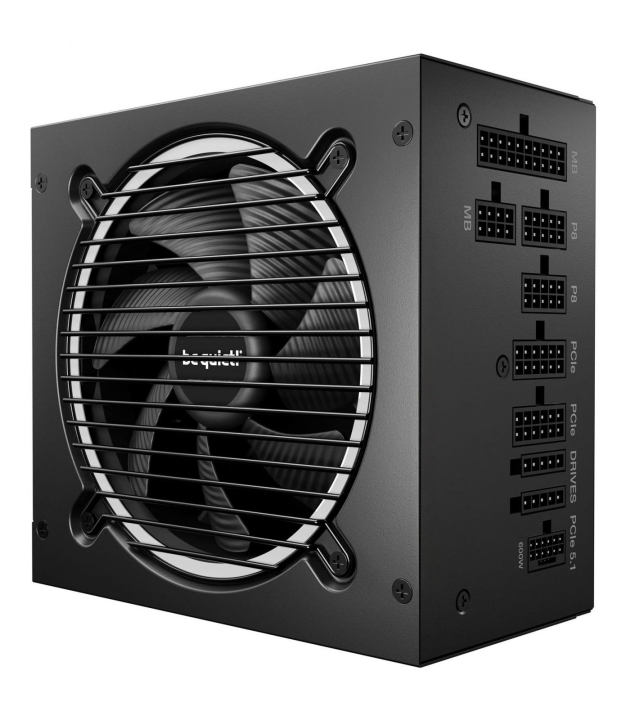

be quiet! Pure Power 13 M | 750W power supply unit 20+4 pin ATX ATX Black
MPN:
BP026EU
Brand:
BE QUIET
Cable Management:
Fully-Modular
€153.04
/ incl. VAT
€126.48
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
28 in Stock
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
Exceptional quiet, superior features
Pure Power 13 M 750W is an ATX 3.1 compliant and PCIe 5.1 compatible power supply with semi-passive cooling. It offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers outstanding compatibility with current-gen and next-gen graphics cards. Pure Power 13 M 750W offers the best combination of features with outstanding compatibility.
Pure Power 13 M 750W is an ATX 3.1 compliant and PCIe 5.1 compatible power supply with semi-passive cooling. It offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers outstanding compatibility with current-gen and next-gen graphics cards. Pure Power 13 M 750W offers the best combination of features with outstanding compatibility.
Specifications
General
Model Name
Pure Power 12
Certifications
BSMI/CB/CCC/CE/cTUVus/Federal Communications Commission (FCC)/IRAM/RCM/RoHS/TÜV mark/UKCA/WEEE
Efficiency
92.6 %
Eps Version
2.92
Hold Time
28.62 ms
Max Output Current 12v1
62.5 A
Maximum Input Current 110v
10 A
Maximum Input Current 220v
5 A
Noise Level
dB(A) of operational noise. Under 30 dB is very quiet (whisper level).
20.8 dB
Number Of 12v Rail S
1
Power
Input Frequency
50/60 Hz
Input Voltage
100 - 240 V
12V Rail Power
The 12V rail powers the CPU and GPU; it is the most important rating for gaming builds.
750 W;3.6 W
3.3V Rail Power
120 W
5V Rail Power
120 W
5VSB Rail Power
15 W
EPS 8-pin CPU Power
Yes
Max 12V Current
0.3 A
Max 3.3V Current
20 A
Max 5V Current
20 A
Max 5VSB Current
3 A
Motherboard Power Connector
20+4 pin ATX
SATA Power Connectors
6
PCIe 6+2-pin Connectors
4
Molex Connectors
2
PFC Type
Active PFC (Power Factor Correction) reduces power waste; Passive is older and less efficient.
Active
Protection Features
OVP (Over-Voltage Protection), UVP (Under-Voltage Protection), OCP (Over-Current Protection), OPP (Over-Power Protection) and SCP (Short-Circuit Protection) protect against voltage spikes, over-current and short circuits.
Over current/Over power/Over voltage/Overheating/Short circuit/Surge & inrush protection (SIP)/Under voltage
Total Power Output
750 W
80 PLUS Rating
80 PLUS efficiency tiers measure how much input wall power is wasted as heat at typical loads. Bronze >=82 percent, Gold >=87 percent, Platinum >=90 percent, Titanium >=94 percent. Higher tiers run cooler and cost less to operate but the PSU itself is mor
80 PLUS Gold
CPU 4+4-pin Connector
Yes
Pci Express Power Connectors 12 Pin
1
Peak Power
820 W
Power Factor
0.98
Processor
Cpu P4 Connector 4 Pin
2
Cpu Power Cable Length
650 mm
Cooling
Fan Bearing Type
FDB/Fluid: quieter, longer life. Ball: durable in any orientation. Sleeve: budget.
Rifle
Cooling Type
Active
Fan Size
Larger fans (140 mm vs 120 mm) move more air at lower RPM . quieter operation.
120 mm
Fan Count
1 fan(s)
Fan Speed
0 - 1800 RPM
Features
Cable Ties Included
Yes
Screws Included
Yes
Compatibility
ATX Standard
3.1
Physical
Weight
2.460000
Depth
160 mm
Height
86 mm
Width
150 mm
Motherboard Cable Length
550 mm
Molex Cable Length
800/950 mm
PSU Form Factor
ATX: standard. SFX: compact for small form-factor builds.
ATX
Colour
Black
SATA Power Cable Length
500/650/800/950 mm
Shipping Case Gross Weight
21500 g
Shipping Case Height
233 mm
Shipping Case Length
580 mm
Shipping Case Width
325 mm
Additional
MTBF
Mean Time Between Failures . statistical lifespan estimate in hours.
100000 h
Sustainability Certs
ENERGY STAR/ErP
Warranty
24
SKU
1442605
EAN
4260052192184
