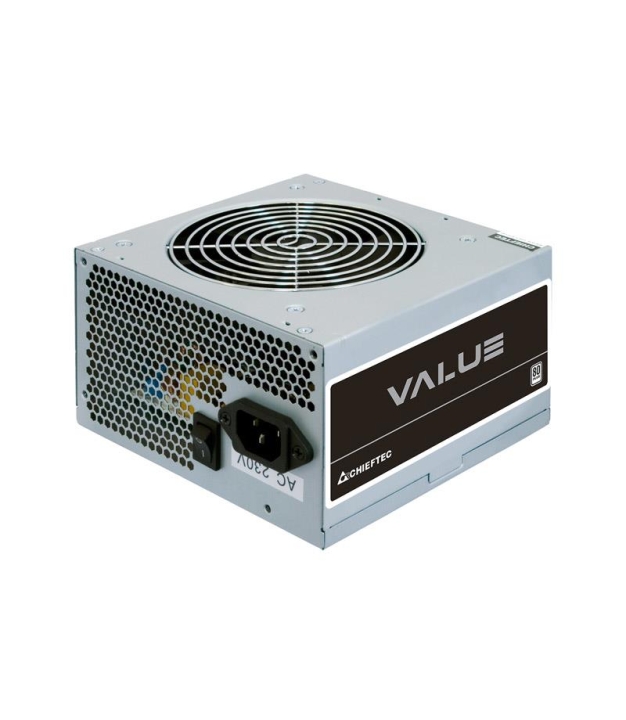

Chieftec Value APB-400B8 power supply unit 400 W 20+4 pin ATX PS/2 Silver
MPN:
APB-400B8
Brand:
CHIEFTEC
Cable Management:
Non-Modular
€40.17
/ incl. VAT
€33.20
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
100+ in Stock
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
The APB-400B8 of the VALUE SERIES offers both quality and 80 PLUS® 230V EU efficiency at a highly competitive pricing. Equipped with a vast amount of required connectors, long native cables and a silent running fan with installed thermal board, the PSU runs quietly on full load and provides REAL POWER, thereby providing all security features. Certified by CE, CB, EAC, TÜV and amongst many others, it’s the VALUE choice!
Specifications
General
Certifications
80PLUS 230V EU
HS Code
84733020
Power
Input Frequency
47 - 63 Hz
Input Voltage
200 - 240 V
12V Rail Power
The 12V rail powers the CPU and GPU; it is the most important rating for gaming builds.
360 W;3.6 W
3.3V Rail Power
100 W
5V Rail Power
100 W
5VSB Rail Power
12.5 W
EPS 4+4-pin Connector
Yes
Input Current
3 A
Max 12V Current
30 A;0.3 A
Max 3.3V Current
17 A
Max 5V Current
16 A
Max 5VSB Current
2.5 A
Motherboard Power Connector
20+4 pin ATX
SATA Power Connectors
3
PCIe 6+2-pin Connectors
1
Molex Connectors
2
PFC Type
Active PFC (Power Factor Correction) reduces power waste; Passive is older and less efficient.
Active
Protection Features
OVP (Over-Voltage Protection), UVP (Under-Voltage Protection), OCP (Over-Current Protection), OPP (Over-Power Protection) and SCP (Short-Circuit Protection) protect against voltage spikes, over-current and short circuits.
Over voltage/Overload/Short circuit/Under voltage
Total Power Output
400 W
80 PLUS Rating
80 PLUS efficiency tiers measure how much input wall power is wasted as heat at typical loads. Bronze >=82 percent, Gold >=87 percent, Platinum >=90 percent, Titanium >=94 percent. Higher tiers run cooler and cost less to operate but the PSU itself is mor
80 PLUS
CPU 4+4-pin Connector
Yes
Floppy Drive Power Connector
1
Power Factor
0.9
Processor
Cpu Power Cable Length
350 mm
Storage
Floppy Disk Drive Connector
Yes
Cooling
Fan Size
Larger fans (140 mm vs 120 mm) move more air at lower RPM . quieter operation.
120 mm
Fan Count
1 fan(s)
Compatibility
ATX Standard
2.3
Physical
Depth
150 mm
Height
87 mm
Width
140 mm
Motherboard Cable Length
350 mm
PCIe Cable Length
350 mm
Molex Cable Length
150/350 mm
PSU Form Factor
ATX: standard. SFX: compact for small form-factor builds.
PS/2
Colour
Silver
SATA Power Cable Length
150/350 mm
Additional
Warranty
24
SKU
1234708
EAN
4710713230552
