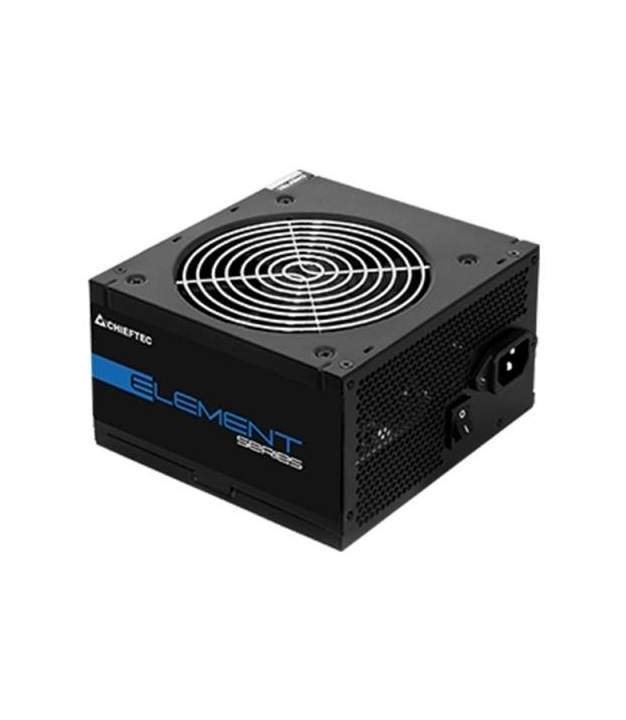

Chieftec ELP-500S power supply unit 500 W 20+4 pin ATX PS/2 Black
MPN:
ELP-500S
Brand:
CHIEFTEC
Cable Management:
Non-Modular
€50.66
/ incl. VAT
€41.87
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
25 in Stock
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
The brand new ELEMENT series combines innovation, high quality, great design and efficiency. With a silent running 12cm fan, the PSU is held in decent black, equipped with long native cables, a power cord, and a solid and eye catching retail box. With an efficiency of over 85% (BRONZE) @230V, the ELEMENT series fulfills the requirement of GREEN IT at an attractive price.
Specifications
General
Certifications
CE, CB, EAC, ErP, RoHS, interseroh, TÜV
Efficiency
85 %
Max Output Current 12v1
38 A
Power
Input Frequency
47 - 63 Hz
Input Voltage
200 - 240 V
12V Rail Power
The 12V rail powers the CPU and GPU; it is the most important rating for gaming builds.
456 W;3.6 W
3.3V Rail Power
110 W
5V Rail Power
110 W
5VSB Rail Power
12.5 W
EPS 4+4-pin Connector
Yes
Input Current
4 A
Max 3.3V Current
18 A
Max 5V Current
17 A
Max 5VSB Current
2.5 A
Motherboard Power Connector
20+4 pin ATX
SATA Power Connectors
3
PCIe 6+2-pin Connectors
1
PFC Type
Active PFC (Power Factor Correction) reduces power waste; Passive is older and less efficient.
Active
Protection Features
OVP (Over-Voltage Protection), UVP (Under-Voltage Protection), OCP (Over-Current Protection), OPP (Over-Power Protection) and SCP (Short-Circuit Protection) protect against voltage spikes, over-current and short circuits.
Over power/Over voltage/Short circuit/Under voltage
Total Power Output
500 W
80 PLUS Rating
80 PLUS efficiency tiers measure how much input wall power is wasted as heat at typical loads. Bronze >=82 percent, Gold >=87 percent, Platinum >=90 percent, Titanium >=94 percent. Higher tiers run cooler and cost less to operate but the PSU itself is mor
80 PLUS Bronze
PCIe Power Connector
Yes
Power Factor
0.9
Storage
Floppy Disk Drive Connector
Yes
Cooling
Cooling Type
Active
Fan Size
Larger fans (140 mm vs 120 mm) move more air at lower RPM . quieter operation.
120 mm
Fan Count
1 fan(s)
Compatibility
ATX Standard
2.3
Supported Motherboard Form Factors
ATX
Physical
Weight
1.440000
Depth
150 mm
Height
86 mm
Width
140 mm
Motherboard Cable Length
500 mm
PCIe Cable Length
500 mm
PSU Form Factor
ATX: standard. SFX: compact for small form-factor builds.
PS/2
Colour
Black
SATA Power Cable Length
150/500 mm
Additional
Warranty
24
SKU
1234706
EAN
4710713230958
