Special offer

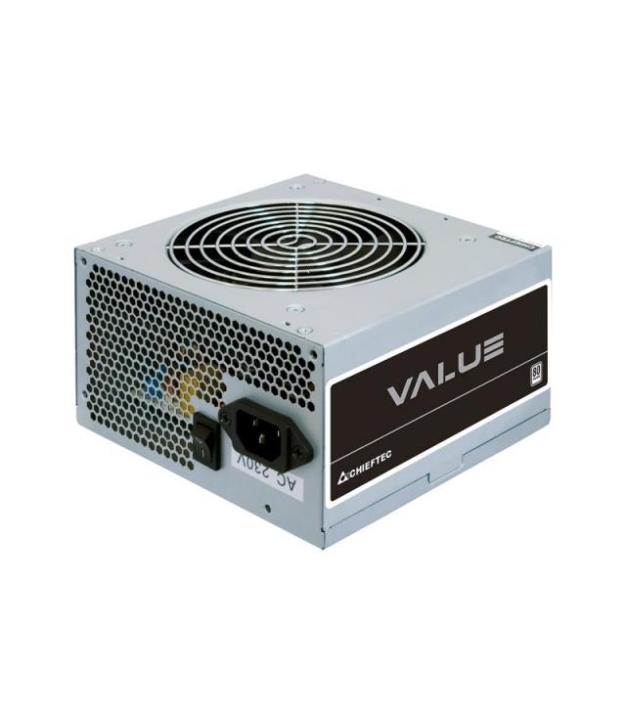

Chieftec Value APB-600B8 power supply unit 600 W 20+4 pin ATX ATX Steel
MPN:
APB-600B8
Brand:
CHIEFTEC
Cable Management:
Non-Modular
€52.15
/ incl. VAT
€43.10
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
8 in Stock
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
The new VALUE SERIES offers both quality and 80 PLUS 230V EU efficiency at a highly competitive pricing. Equipped with a vast amount of required connectors, long native cables and a silent running fan with installed thermal board, the PSU runs quietly on full load and provides REAL POWER, thereby providing all security features. Certified by CE, CB, EAC, TÜV and amongst many others, it’s the VALUE choice!
Specifications
General
Certifications
CE/RoHS
HS Code
84733020
Max Output Current 12v1
46 A
Maximum Input Current 220v
4.5 A
Power
Input Frequency
47 - 63 Hz
Input Voltage
200 - 240 V
12V Rail Power
The 12V rail powers the CPU and GPU; it is the most important rating for gaming builds.
552 W;3.6 W
3.3V Rail Power
120 W
5V Rail Power
120 W
5VSB Rail Power
12.5 W
EPS 4+4-pin Connector
Yes
EPS 8-pin CPU Power
No
Max 12V Current
0.3 A
Max 3.3V Current
20 A
Max 5V Current
20 A
Max 5VSB Current
2.5 A
Motherboard Power Connector
20+4 pin ATX
SATA Power Connectors
4
PCIe 6+2-pin Connectors
2
Molex Connectors
2
Total Power Output
600 W
80 PLUS Rating
80 PLUS efficiency tiers measure how much input wall power is wasted as heat at typical loads. Bronze >=82 percent, Gold >=87 percent, Platinum >=90 percent, Titanium >=94 percent. Higher tiers run cooler and cost less to operate but the PSU itself is mor
80 PLUS
Peak Power
600 W
Storage
Floppy Disk Drive Cable Length
150 mm
Floppy Disk Drive Connector
Yes
Cooling
Cooling Type
Active
Fan Size
Larger fans (140 mm vs 120 mm) move more air at lower RPM . quieter operation.
120 mm
Fan Location
Top
Fan Count
1 fan(s)
Compatibility
ATX Standard
2.3
Physical
Weight
1.420000
Depth
140 mm
Height
87 mm
Width
150 mm
Motherboard Cable Length
550 mm
Molex Cable Length
150/500 mm
PSU Form Factor
ATX: standard. SFX: compact for small form-factor builds.
ATX
Colour
Steel
SATA Power Cable Length
150/500 mm
Additional
Warranty
24
SKU
1382015
EAN
753263077813
