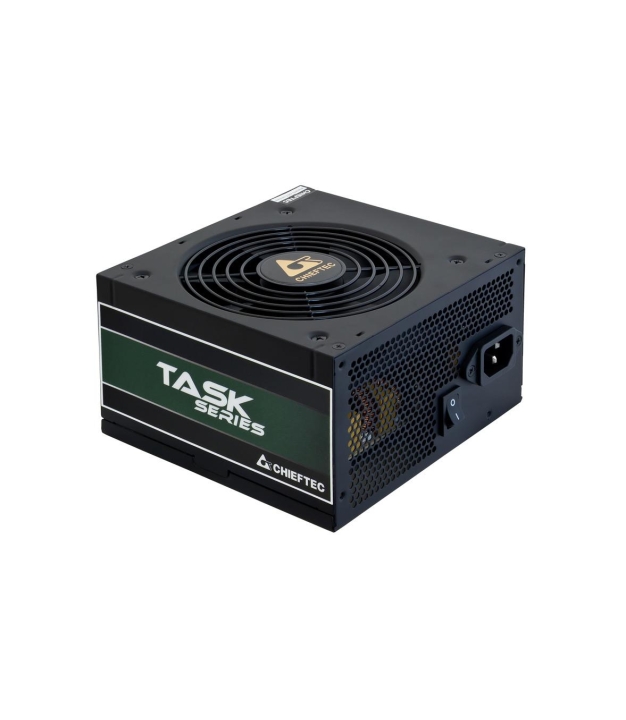

Chieftec Task TPS-700S power supply unit 700 W 20+4 pin ATX ATX Black
MPN:
TPS-700S
Brand:
CHIEFTEC
Cable Management:
Non-Modular
€65.63
/ incl. VAT
€54.24
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
50 in Stock
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
TPS-700S
The CHIEFTEC Task Series PSU’s are true to their name, and take on any task they are required for without any trouble. With certified 80PLUS Bronze efficiency and all modern protection and safety features, the PSU can be trusted to deliver power efficiently and reliably. With cable lengths extended to 650mm for motherboard and CPU, these power supplies will also serve excellently for builds inside larger cases.
The CHIEFTEC Task Series PSU’s are true to their name, and take on any task they are required for without any trouble. With certified 80PLUS Bronze efficiency and all modern protection and safety features, the PSU can be trusted to deliver power efficiently and reliably. With cable lengths extended to 650mm for motherboard and CPU, these power supplies will also serve excellently for builds inside larger cases.
Specifications
General
Certifications
ErP, CE, CB, EAC, TUV
Certifications
RoHS
HS Code
84733020
Power
Input Frequency
47 - 63 Hz
Input Voltage
100 - 240 V
12V Rail Power
The 12V rail powers the CPU and GPU; it is the most important rating for gaming builds.
648 W;3.6 W
5VSB Rail Power
12.5 W
EPS 4+4-pin Connector
Yes
Input Current
10 A
Max 12V Current
54 A;0.3 A
Max 3.3V Current
19 A
Max 5V Current
17 A
Max 5VSB Current
2.5 A
Motherboard Power Connector
20+4 pin ATX
SATA Power Connectors
6
PCIe 6+2-pin Connectors
2
Molex Connectors
3
PFC Type
Active PFC (Power Factor Correction) reduces power waste; Passive is older and less efficient.
Active
Protection Features
OVP (Over-Voltage Protection), UVP (Under-Voltage Protection), OCP (Over-Current Protection), OPP (Over-Power Protection) and SCP (Short-Circuit Protection) protect against voltage spikes, over-current and short circuits.
Over voltage/Overheating/Overload/Short circuit/Under voltage
Total Power Output
700 W
80 PLUS Rating
80 PLUS efficiency tiers measure how much input wall power is wasted as heat at typical loads. Bronze >=82 percent, Gold >=87 percent, Platinum >=90 percent, Titanium >=94 percent. Higher tiers run cooler and cost less to operate but the PSU itself is mor
80 PLUS Bronze
ATX 20+4-pin Connector
Yes
Power Factor
0.9
Cooling
Fan Size
Larger fans (140 mm vs 120 mm) move more air at lower RPM . quieter operation.
120 mm
Fan Count
1 fan(s)
Compatibility
Supported Motherboard Form Factors
ATX
Physical
Weight
1.740000
Depth
140 mm
Height
87 mm
Width
150 mm
Motherboard Cable Length
650 mm
PCIe Cable Length
500 mm
Molex Cable Length
150/500 mm
PSU Form Factor
ATX: standard. SFX: compact for small form-factor builds.
ATX
Colour
Black
SATA Power Cable Length
150/500 mm
Eps Cable Length
650 mm
Additional
Warranty
24
SKU
1339188
EAN
753263076502
