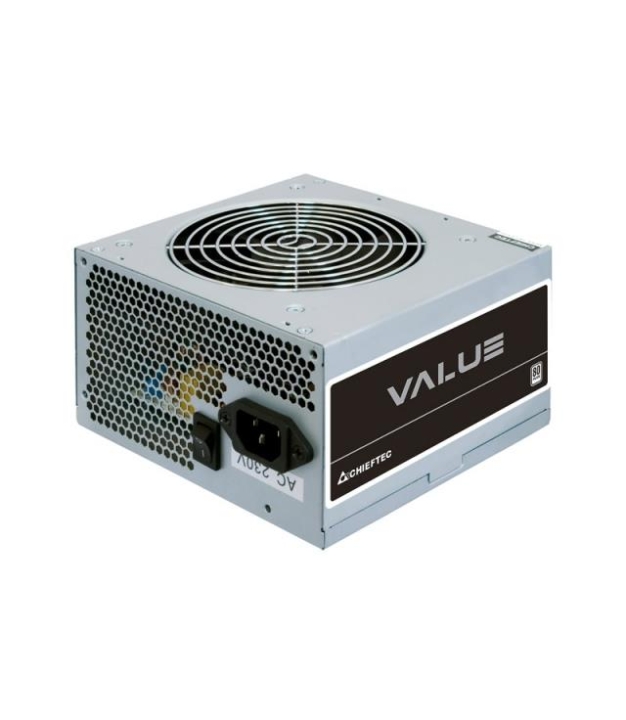

Chieftec Value APB-700B8 power supply unit 700 W 20+4 pin ATX ATX Silver
MPN:
APB-700B8
Brand:
CHIEFTEC
Cable Management:
Non-Modular
€55.15
/ incl. VAT
€45.58
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
10 in Stock
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
The new VALUE SERIES offers both quality and 80 PLUS® 230V EU efficiency at a highly competitive pricing. Equipped with a vast amount of required connectors, long native cables and a silent running fan with installed thermal board, the PSU runs quietly on full load and provides REAL POWER, thereby providing all security features. Certified by CE, CB, EAC, TÜV and amongst many others, it’s the VALUE choice!
Specifications
General
Certifications
CE, CB, EAC, TÜV
Certifications
CE
HS Code
84733020
Max Output Current 12v1
54 A
Power
Input Frequency
47 - 63 Hz
Input Voltage
200 - 240 V
12V Rail Power
The 12V rail powers the CPU and GPU; it is the most important rating for gaming builds.
648 W
3.3V Rail Power
130 W
5V Rail Power
130 W
EPS 4+4-pin Connector
Yes
Input Current
5 A
Max 3.3V Current
22 A
Max 5V Current
22 A
Motherboard Power Connector
20+4 pin ATX
SATA Power Connectors
4
PCIe 6+2-pin Connectors
2
Molex Connectors
2
PFC Type
Active PFC (Power Factor Correction) reduces power waste; Passive is older and less efficient.
Active
Protection Features
OVP (Over-Voltage Protection), UVP (Under-Voltage Protection), OCP (Over-Current Protection), OPP (Over-Power Protection) and SCP (Short-Circuit Protection) protect against voltage spikes, over-current and short circuits.
Over voltage/Overheating/Overload/Short circuit/Under power/Under voltage
Total Power Output
700 W
80 PLUS Rating
80 PLUS efficiency tiers measure how much input wall power is wasted as heat at typical loads. Bronze >=82 percent, Gold >=87 percent, Platinum >=90 percent, Titanium >=94 percent. Higher tiers run cooler and cost less to operate but the PSU itself is mor
80 PLUS
CPU 4+4-pin Connector
Yes
Floppy Drive Power Connector
1
Power Factor
0.9
Processor
Cpu Power Cable Length
500 mm
Storage
Floppy Disk Drive Connector
Yes
Cooling
Cooling Type
Active
Fan Size
Larger fans (140 mm vs 120 mm) move more air at lower RPM . quieter operation.
120 mm
Fan Count
1 fan(s)
Compatibility
ATX Standard
2.3
Physical
Weight
1.420000
Depth
140 mm
Height
87 mm
Width
150 mm
Motherboard Cable Length
550 mm
PCIe Cable Length
500 mm
Molex Cable Length
150/500 mm
PSU Form Factor
ATX: standard. SFX: compact for small form-factor builds.
ATX
Colour
Silver
SATA Power Cable Length
150/550 mm
Additional
Warranty
24
SKU
1382014
EAN
753263077820
