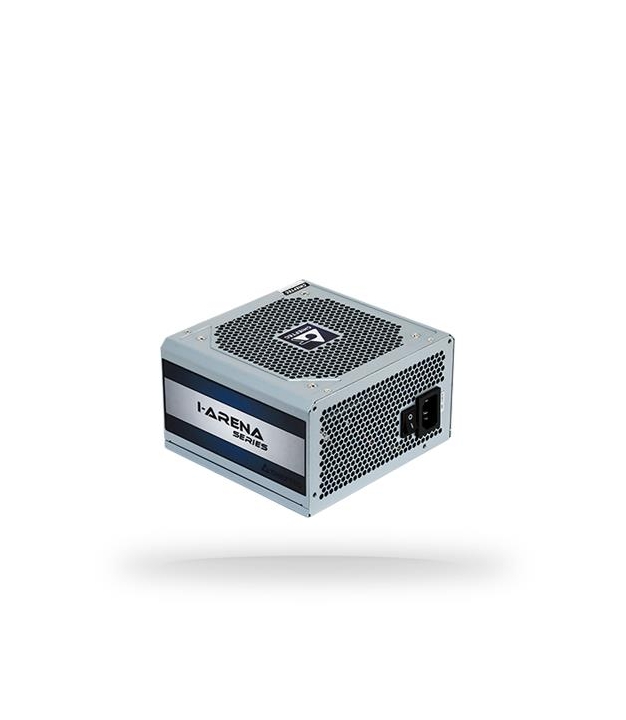

Chieftec GPC-700S power supply unit 700 W 24-pin ATX PS/2 Silver
MPN:
GPE-700S
Brand:
CHIEFTEC
Cable Management:
Non-Modular
€90.97
/ incl. VAT
€75.18
/ excl. VAT
/ incl. VAT
/ excl. VAT
This product is currently out of stock.
Subscribe to back in stock notification.
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
In a continuous effort to align our high-end production with the extreme fast technological developments of the IT industry, CHIEFTEC introduces its NEW iARENA series. Initially dedicated to the SI market alone, the iARENA series has established a strong position amongst end users as well, owing to the implemented high-end components which have lead and proven longevity and ruggedness.
Specifications
General
Model Name
GPE-700S
HS Code
84733020
Max Output Current 12v1
52.5 A
Power
Input Frequency
50 Hz
Input Voltage
230 V
3.3V Rail Power
130 W
5VSB Rail Power
12.5 W
Input Current
6.3 A
Max 12V Current
0.3 A
Max 3.3V Current
22 A
Max 5V Current
22 A
Max 5VSB Current
2.5 A
Motherboard Power Connector
24-pin ATX
SATA Power Connectors
6
Molex Connectors
2
PFC Type
Active PFC (Power Factor Correction) reduces power waste; Passive is older and less efficient.
Active
Protection Features
OVP (Over-Voltage Protection), UVP (Under-Voltage Protection), OCP (Over-Current Protection), OPP (Over-Power Protection) and SCP (Short-Circuit Protection) protect against voltage spikes, over-current and short circuits.
Over voltage/Overload/Short circuit/Under voltage
Total Power Output
700 W
Cooling
Fan Size
Larger fans (140 mm vs 120 mm) move more air at lower RPM . quieter operation.
120 mm
Fan Count
1 fan(s)
Compatibility
ATX Standard
2.3
Physical
Depth
150 mm
Height
87 mm
Width
140 mm
PSU Form Factor
ATX: standard. SFX: compact for small form-factor builds.
PS/2
Colour
Silver
Additional
Warranty
24
SKU
1207546
EAN
4710713234208
