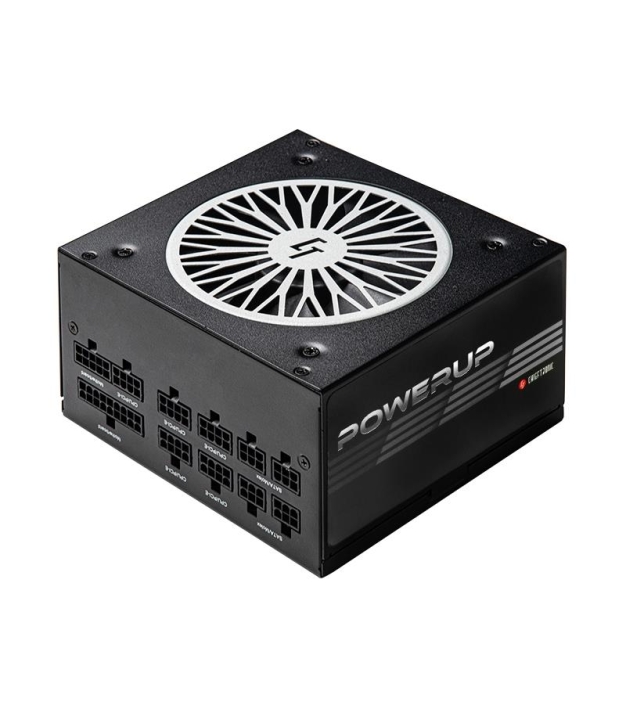

Chieftec PowerUp GPX-850FC power supply unit 850 W 20+4 pin ATX ATX Black
MPN:
GPX-850FC
Brand:
CHIEFTEC
Cable Management:
Fully-Modular
€110.52
/ incl. VAT
€91.34
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
30 in Stock
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
With the PowerUp series, Chieftec aims to bring the well-received technical quality and high performance of the PowerPlay series to the mainstream gamer’s market. With modern full-bridge LLC and DC-to-DC technology, extremely low ripple values and tight voltage regulation can be achieved.
A high power-density design allows this series to deliver up to 850W of power in a compact form factor, measuring only 14 cm in total length, while achieving 80 PLUS® Gold certified efficiency. The compact size combined with the fully modular cable management, allows the PowerUp series to be used conveniently in smaller builds, where a short PSU is needed, while long, flat, black cables support builds even in very
large gaming cases.
A high power-density design allows this series to deliver up to 850W of power in a compact form factor, measuring only 14 cm in total length, while achieving 80 PLUS® Gold certified efficiency. The compact size combined with the fully modular cable management, allows the PowerUp series to be used conveniently in smaller builds, where a short PSU is needed, while long, flat, black cables support builds even in very
large gaming cases.
Specifications
General
Certifications
80PLUS Gold
HS Code
84733020
Power
Input Frequency
47 - 63 Hz
Input Voltage
100 - 240 V
12V Rail Power
The 12V rail powers the CPU and GPU; it is the most important rating for gaming builds.
846 W;3.6 W
3.3V Rail Power
110 W
5V Rail Power
110 W
5VSB Rail Power
12.5 W
Input Current
12 A
Max 12V Current
70.5 A;0.3 A
Max 3.3V Current
20 A
Max 5V Current
20 A
Max 5VSB Current
2.5 A
Motherboard Power Connector
20+4 pin ATX
SATA Power Connectors
9
PCIe 6+2-pin Connectors
6
Molex Connectors
3
PFC Type
Active PFC (Power Factor Correction) reduces power waste; Passive is older and less efficient.
Active
Protection Features
OVP (Over-Voltage Protection), UVP (Under-Voltage Protection), OCP (Over-Current Protection), OPP (Over-Power Protection) and SCP (Short-Circuit Protection) protect against voltage spikes, over-current and short circuits.
Over current/Over power/Over voltage/Short circuit/Under voltage
Total Power Output
850 W
80 PLUS Rating
80 PLUS efficiency tiers measure how much input wall power is wasted as heat at typical loads. Bronze >=82 percent, Gold >=87 percent, Platinum >=90 percent, Titanium >=94 percent. Higher tiers run cooler and cost less to operate but the PSU itself is mor
80 PLUS Gold
CPU 4+4-pin Connector
Yes
ATX 20+4-pin Connector
Yes
Floppy Drive Power Connector
1
Processor
Cpu Power Cable Length
800 mm
Cooling
Fan Size
Larger fans (140 mm vs 120 mm) move more air at lower RPM . quieter operation.
120 mm
Fan Location
Top
Fan Count
1 fan(s)
Compatibility
ATX Standard
2.53
Physical
Weight
2.400000
Depth
140 mm
Height
86 mm
Width
150 mm
Motherboard Cable Length
650 mm
PCIe Cable Length
650 mm
Molex Cable Length
500/650/800/950 mm
PSU Form Factor
ATX: standard. SFX: compact for small form-factor builds.
ATX
Colour
Black
SATA Power Cable Length
500/650/800 mm
Additional
Warranty
24
SKU
1339192
EAN
753263077202
