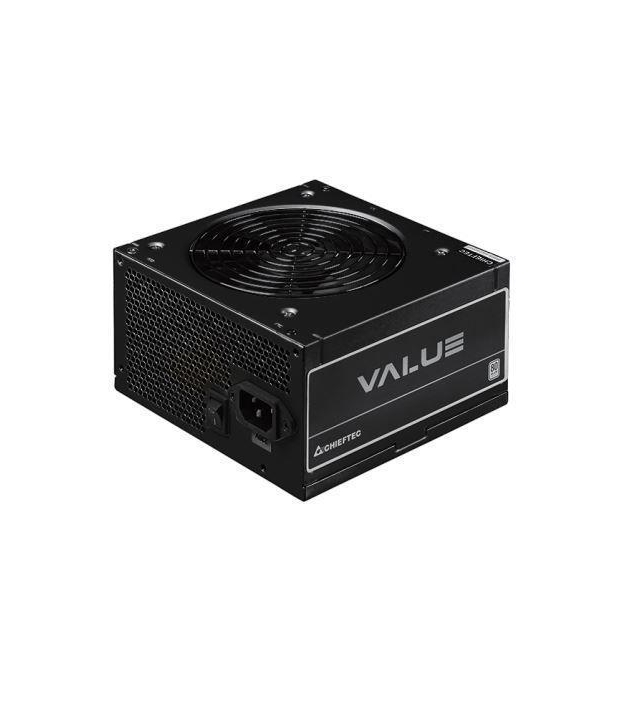

Power Supply, CHIEFTEC, APB-400B8, 200 - 240 V, 400 W, APB-400B8-BK

MPN: APB-400B8-BK Brand: CHIEFTEC

€41.07 / incl. VAT

€33.94 / excl. VAT

In 2 Business Days

50 in Stock

Return Policy

Warranty

Delivery Information

Have questions? Expert help just one click away Contact Us

Product Description

The new VALUE SERIES offers both quality and 80 PLUS® 230V EU efficiency at a highly competitive pricing. Equipped with a vast amount of required connectors, long native cables and a silent running fan with installed thermal board, the PSU runs quietly on full load and provides REAL POWER, thereby providing all security features. Certified by CE, CB, EAC, TÜV and amongst many others, it’s the VALUE choice!

Specifications

General

Model Name APB-400B8

Max Output Current 12v1 30 A

Power

Input Frequency 47 - 63 Hz

Input Voltage 200 - 240 V

5VSB Rail Power 12.5 W

Input Current 200-240V / 3.0A A

Max 12V Current 0.3 A

Max 3.3V Current 17 A

Max 5V Current 16 A

Max 5VSB Current 2.5 A

Motherboard Power Connector 20+4 pin ATX

PFC Type Active PFC (Power Factor Correction) reduces power waste; Passive is older and less efficient. Active

Total Power Output 400 W

80 PLUS Rating 80 PLUS efficiency tiers measure how much input wall power is wasted as heat at typical loads. Bronze >=82 percent, Gold >=87 percent, Platinum >=90 percent, Titanium >=94 percent. Higher tiers run cooler and cost less to operate but the PSU itself is mor 80 PLUS White

Cooling

Fan Size Larger fans (140 mm vs 120 mm) move more air at lower RPM . quieter operation. 120 mm

Compatibility

ATX Standard 2.3

Supported Motherboard Form Factors ATX

Physical

Weight 1.170000

Depth 150 mm

Height 87 mm

Width 140 mm

Colour Black

Additional

Warranty 24

SKU 1401199

EAN 753263078506
