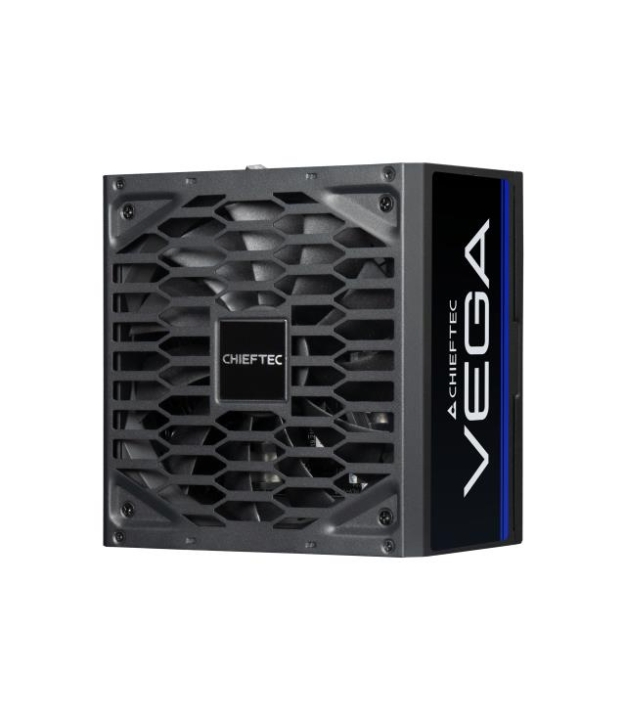

Chieftec Vega PPG-850-S Watt power supply unit 850 W 20+4 pin ATX ATX Black
MPN:
PPG-850-S
Brand:
CHIEFTEC
Cable Management:
Non-Modular
€126.75
/ incl. VAT
€104.75
/ excl. VAT
/ incl. VAT
/ excl. VAT
This product is currently out of stock.
Subscribe to back in stock notification.
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
The CHIEFTEC VEGA Series power supply is built to Intel’s ATX 12V 3.1 standard and supports PCIe GEN5 with 80PLUS Gold certified efficiency. It prioritizes a competitive price-to-performance ratio up to 850W while maintaining the trusted Chieftec quality.
The Vega Series features LLC Half-Bridge converter with DC-to-DC technology to provide enhanced power efficiency and stability. The equipped extra-long native black cables make it suitable for mainstream gamers to build their system, even in larger PC cases.
Additionally, its 135mm fluid dynamic bearing (FDB) silent fan optimizes the balance between cooling performance and noise levels. The Vega Series is your trusted reliable choice for all computing needs incorporating all necessary modern protection and safety features.
The Vega Series features LLC Half-Bridge converter with DC-to-DC technology to provide enhanced power efficiency and stability. The equipped extra-long native black cables make it suitable for mainstream gamers to build their system, even in larger PC cases.
Additionally, its 135mm fluid dynamic bearing (FDB) silent fan optimizes the balance between cooling performance and noise levels. The Vega Series is your trusted reliable choice for all computing needs incorporating all necessary modern protection and safety features.
Specifications
General
Model Name
PPG-850-S
Certifications
80PLUS Gold
Power
Input Voltage
100 - 240 V
EPS 4+4-pin Connector
Yes
EPS 8-pin CPU Power
Yes
Motherboard Power Connector
20+4 pin ATX
SATA Power Connectors
6
PCIe 12+4-pin Connectors
1
PCIe 6+2-pin Connectors
4
Molex Connectors
3
Protection Features
OVP (Over-Voltage Protection), UVP (Under-Voltage Protection), OCP (Over-Current Protection), OPP (Over-Power Protection) and SCP (Short-Circuit Protection) protect against voltage spikes, over-current and short circuits.
Over current/Over power/Over voltage/Overheating/Short circuit/Surge & inrush protection (SIP)/Surge and inrush/Under voltage
Total Power Output
850 W
80 PLUS Rating
80 PLUS efficiency tiers measure how much input wall power is wasted as heat at typical loads. Bronze >=82 percent, Gold >=87 percent, Platinum >=90 percent, Titanium >=94 percent. Higher tiers run cooler and cost less to operate but the PSU itself is mor
80 PLUS Gold
CPU 4+4-pin Connector
Yes
ATX 20+4-pin Connector
Yes
ATX 24-pin Connector
Yes
Pci Express Power Connectors 12 4 Pin Cable Length
600 mm
Processor
Cpu Power Cable Length
650 mm
Cooling
Fan Bearing Type
FDB/Fluid: quieter, longer life. Ball: durable in any orientation. Sleeve: budget.
FDB
Cooling Type
Active
Fan Size
Larger fans (140 mm vs 120 mm) move more air at lower RPM . quieter operation.
135 mm
Fan Count
1 fan(s)
Features
RGB Lighting
No
Compatibility
ATX Standard
3.1
Physical
Weight
2.070000
Motherboard Cable Length
600 mm
PCIe Cable Length
600 mm
Molex Cable Length
400 mm
PSU Form Factor
ATX: standard. SFX: compact for small form-factor builds.
ATX
Colour
Black
SATA Power Cable Length
400 mm
Additional
Warranty
24
SKU
1430638
EAN
753263078797
