Special offer
Power Supply, ENDORFY, ATX, PC, 100 - 240 V, 750 W, EY7A013
MPN:
EY7A013
Brand:
ENDORFY
Cable Management:
Fully-Modular
€127.49
/ incl. VAT
€105.36
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
50 in Stock
Short description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description

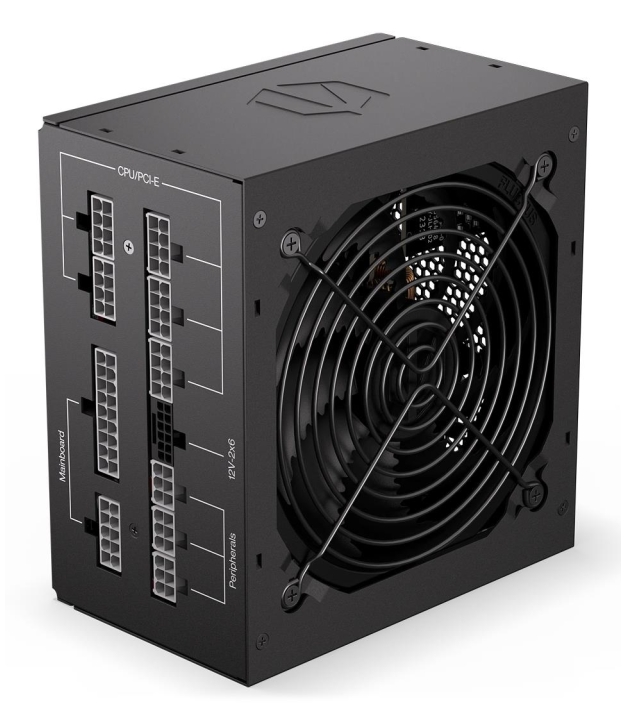

Supremo FM6 750 W is a fully modular modern ATX 3.1-compliant power supply unit, providing stable operation and supporting PCIe 5.1 GPUs. 80 PLUS® Gold certificate confirms its high efficiency, while a Fluctus fan guarantees quiet work. Thanks to the Japanese capacitors and a 10-year warranty, it’s a reliable solution for avid gamers and professionals alike.
Ready for latest ATX 3.1 standards
Supremo FM6 750 W is a power supply unit compliant with the ATX 3.1 standard. Its major advantages include even better performance, stability, and resistance to momentary power spikes than previous ATX standards. The set includes the 12V-2x6 cable fully compatible with PCIe 5.1 cards. A traditional PCI-E 6+2 PIN splitter is also included to handle GPUs with classic power supply systems.
80 PLUS® Gold – supreme performance and reliability
The 80 PLUS® Gold certificate confirms the high efficiency of the Supremo FM6 750 W power supply unit. Thanks to its excellent quality and refined design, the unit is characterized by low-noise and low-temperature operation, resulting in its extended service life.
Silence first
Supremo FM6 750 W has been designed with maximum user comfort in mind. Thanks to the optimized component setup streamlining the air flow and a high-performance cooling system, the PSU runs exceptionally quietly and retains low temperature even under full load.
Premium-class capacitors made in Japan
All capacitors installed in the Supremo FM6 750 W power supply unit are reliable, premium-class components made in Japan. They retain their operating parameters even at high temperatures (105 °C), enabling them to perform faultlessly and stably for years to come, even under extremely demanding operating conditions.
Reliable 120 mm Fluctus fan
The award-winning Fluctus series fan co-engineered with Synergy Cooling and equipped with the FDB bearing maintains the correct temperature inside the power supply unit. Psychoacoustic optimization guarantees that the noise generated by the fan is less audible to ensure comfort of operation, even in non-muffled chassis.
Fully modular cabling
Forget about unused wire harnesses. This fully modular cabling enables you to connect only the necessary wires. This results in streamlining the cable routing process and enhances the space management in a PC case to improve the airflow and temperature control.
10-year warranty
We are sure of the high quality and reliability of ENDORFY equipment. Therefore, the Supremo FM6 750 W power supply unit comes with a 10-warranty ensuring its long life and trouble-free operation.
Protection feature package
Supremo FM6 750 W comes with a comprehensive package of electric and thermal protection features. Your computer is protected against overloads, voltage spikes, short-circuits, and power supply unit overheating, which guarantees its stability and safety under the most demanding operating conditions.
- Ready for latest ATX 3.1 standards
- 80 PLUS Gold – supreme performance and reliability
- Silence first
- Premium-class capacitors made in Japan
- Reliable 120 mm Fluctus fan
- Fully modular cabling
- Protection feature package
Specifications
General
Model Name
Supremo FM6 750 W
Certifications
CE/Federal Communications Commission (FCC)/RoHS/UKCA/WEEE
Power
Input Voltage
100 - 240 V
12V Rail Power
The 12V rail powers the CPU and GPU; it is the most important rating for gaming builds.
744 W;3.6 W
3.3V Rail Power
100 W
5V Rail Power
20 W
5VSB Rail Power
15 W
EPS 4+4-pin Connector
Yes
Input Current
13 - 65 A
Max 12V Current
62 A;0.3 A
Max 3.3V Current
20 A
Max 5V Current
20 A
Max 5VSB Current
3 A
Motherboard Power Connector
24-pin ATX
SATA Power Cables
2
PCIe 6+2-pin Connectors
3
Molex Connectors
1
PFC Type
Active PFC (Power Factor Correction) reduces power waste; Passive is older and less efficient.
Active
Protection Features
OVP (Over-Voltage Protection), UVP (Under-Voltage Protection), OCP (Over-Current Protection), OPP (Over-Power Protection) and SCP (Short-Circuit Protection) protect against voltage spikes, over-current and short circuits.
Over current/Over power/Over voltage/Overheating/Short circuit/Surge & inrush protection (SIP)/Under voltage
Total Power Output
750 W
80 PLUS Rating
80 PLUS efficiency tiers measure how much input wall power is wasted as heat at typical loads. Bronze >=82 percent, Gold >=87 percent, Platinum >=90 percent, Titanium >=94 percent. Higher tiers run cooler and cost less to operate but the PSU itself is mor
80 PLUS Gold
Connectivity
Number Of Eps Connectors
2
Cooling
Cooling Type
Active
Fan Size
Larger fans (140 mm vs 120 mm) move more air at lower RPM . quieter operation.
120 mm
Fan Count
1 fan(s)
Features
RGB Lighting
No
Compatibility
ATX Standard
3.1
Physical
Depth
150 mm
Height
87 mm
Width
140 mm
Motherboard Cable Length
600 mm
Molex Cable Length
560/720/880 mm
PSU Form Factor
ATX: standard. SFX: compact for small form-factor builds.
ATX
Colour
Black
SATA Power Cable Length
560/720/880 mm
Additional
MTBF
Mean Time Between Failures . statistical lifespan estimate in hours.
100000 h
Country of Origin
China
Warranty
24
SKU
1455408
EAN
5903018668499
